1996 Kawasaki KLX650 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

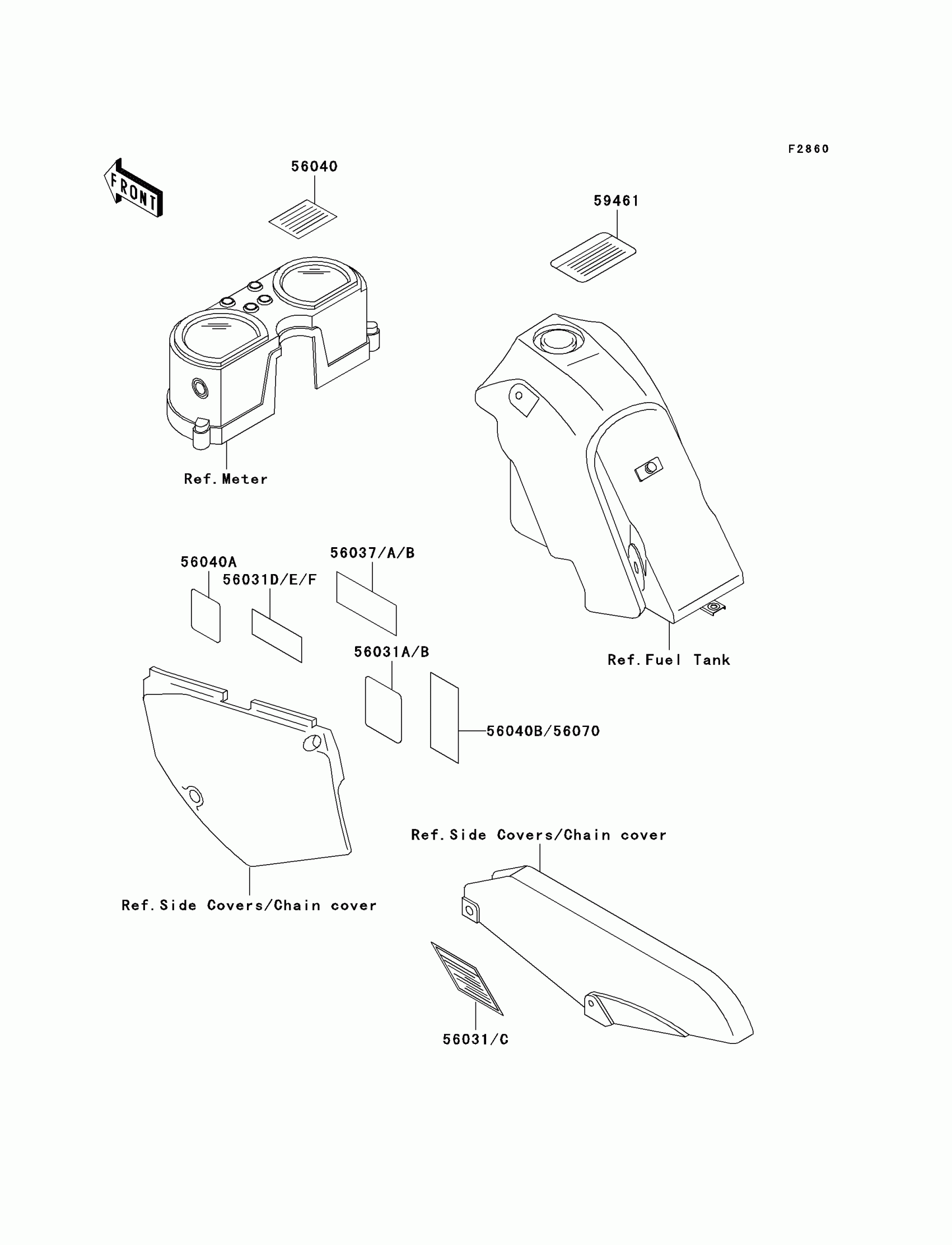

1996 Kawasaki KLX650 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56031

LABEL-MANUAL,CHAIN

56031-1766

1
Out of stock

56031A

1

$10.47

In stock

56031B

LABEL-MANUAL,DAILY SAFETY

56031-1836

1
Out of stock

56031C

LABEL-MANUAL,CHAIN

56031-1837

1
Out of stock

56031E

LABEL-MANUAL,OIL&OIL FILTER

56031-1908

1
Out of stock

56031F

LABEL-MANUAL,OIL&OIL FILTER

56031-1909

1
Out of stock

56037A

1

$4.46

In stock

56037B

LABEL-SPECIFICATION,TIRE&LOAD

56037-1696

1
Out of stock

56040

1

$5.32

In stock

56040A

LABEL-WARNING,EVAPO

56040-1121

1

$4.83

In stock

56040B

1

$10.19

In stock

56070

LABEL-WARNING,CARRIER

56070-1063

1
Out of stock

59461

1

$8.66

In stock
