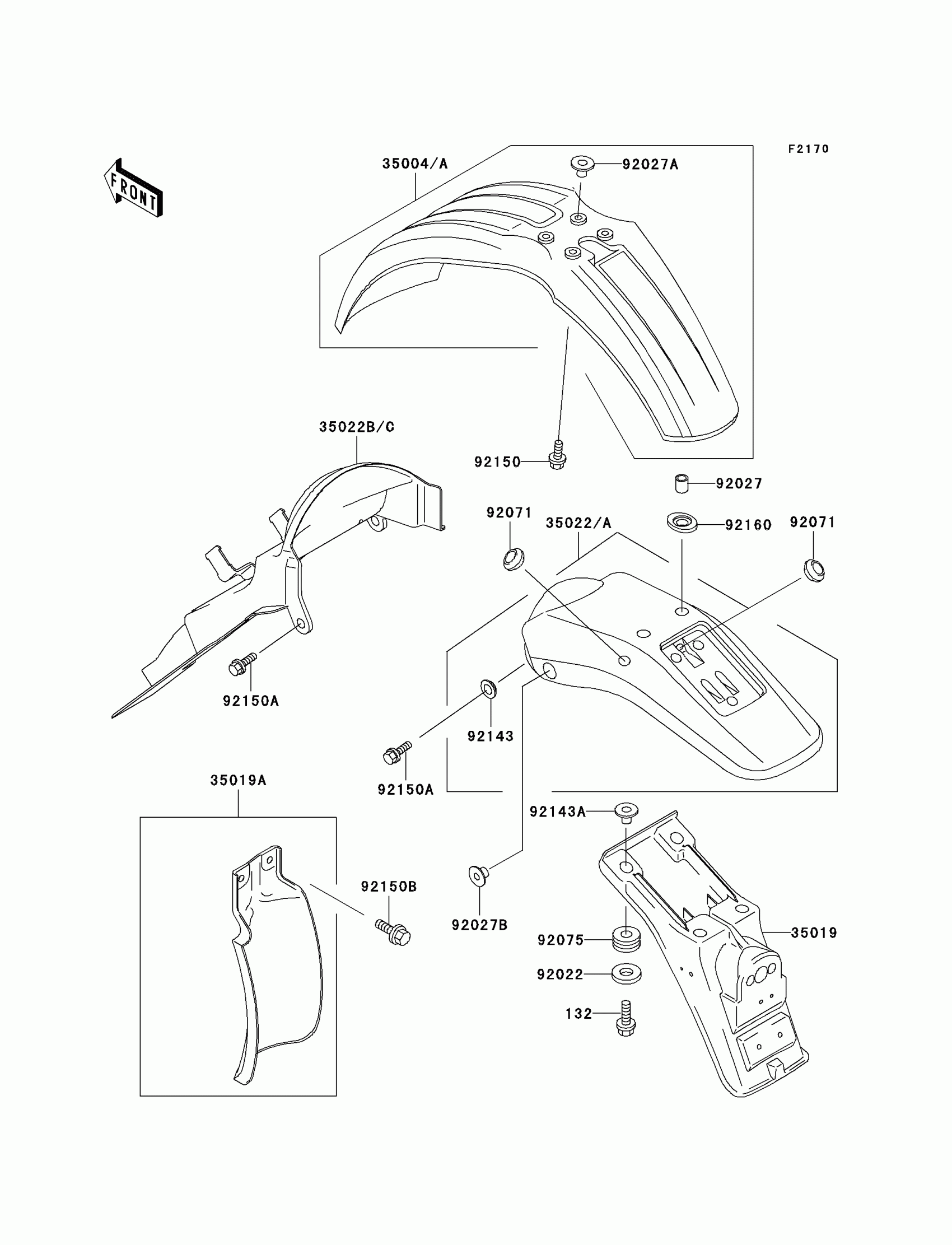

Find the part on the Fenders diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

35004

FENDER-FRONT,S.RED

35004-1297-6B

1

$88.18

In stock

35019

FLAP,RR FENDER

35019-1312

1
Out of stock

35019A

FLAP,RR FENDER,FR

35019-1318

1
Out of stock

35022

1

$65.84

In stock

35022B

FENDER-COMP-REAR,FR,S.RED

35022-1282-6B

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,METER BRACKET

92027-1585

1
Out of stock

92027A

COLLAR

92027-1936

1

$5.15

In stock

92027B

COLLAR

92027-4015

1

$8.44

In stock

92071

GROMMET

92071-024

1

$4.14

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92143A

COLLAR

92143-1353

1

$6.81

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,6X14

92150-1340

1

$4.02

In stock

92150B

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92160

DAMPER

92160-1391

1
Out of stock
