1996 Kawasaki KLX650 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

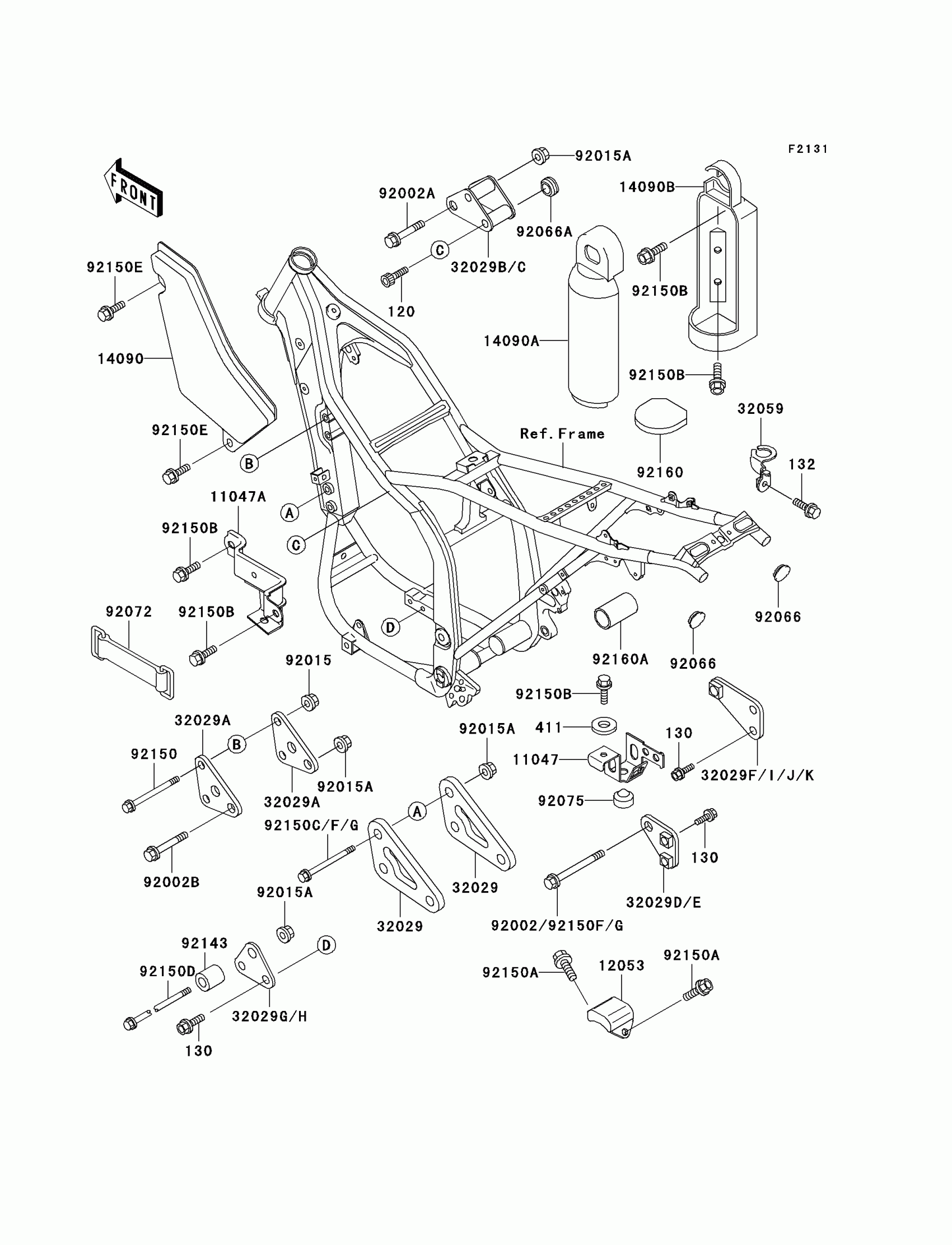

1996 Kawasaki KLX650 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,ELECTRIC

11047-1954

1
Out of stock

11047A

BRACKET,TOOL BOX

11047-1981

1
Out of stock

12053

GUIDE-CHAIN

12053-1310

1
Out of stock

14090

COVER,BATTERY

14090-1298

1
Out of stock

14090A

COVER,TOOL CASE

14090-1301

1
Out of stock

14090B

COVER,TOOL CASE

14090-1302

1
Out of stock

32029

BRACKET-ENGINE,FR,LWR

32029-1840

1
Out of stock

32029A

BRACKET-ENGINE,FR,UPP

32029-1858

1
Out of stock

32029C

BRACKET-ENGINE,RR,UPP,VIOLET

32029-1859-TY

1
Out of stock

32029E

BRACKET-ENGINE,RR,LWR,LH,VIOLE

32029-1882-TY

1
Out of stock

32029H

BRACKET-ENGINE,LWR,VIOLET

32029-1884-TY

1
Out of stock

32029J

BRACKET-ENGINE,RR,LWR,RH,VIOLE

32029-1899-TY

1
Out of stock

32059

1

$9.58

In stock

92002A

BOLT,FLANGED,10X46

92002-1740

1
Out of stock

92002B

BOLT,FLANGED,10X53

92002-1936

1
Out of stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92015A

NUT,FLANGED,10MM

92015-1502

1

$8.16

In stock

92066

1

$3.35

In stock

92066A

PLUG

92066-1115

1

$4.30

In stock

92072

BAND,BATTERY,L=105

92072-1173

1

$10.88

In stock

92075

DAMPER,10X20X8

92075-1927

1

$3.49

In stock

92143

COLLAR,10.5X20X16.2

92143-1618

1
Out of stock

92150

BOLT,FLANGED,8X50

92150-1214

1

$7.14

In stock

92150A

BOLT,6X14

92150-1340

1

$4.02

In stock

92150B

BOLT,6X12

92150-1435

1

$3.43

In stock

92150D

BOLT,FLANGED,10X150

92150-1686

1

$12.66

In stock

120

BOLT-SOCKET,8X55

120P0855

1
Out of stock

130

BOLT-FLANGED,8X16

130G0816

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock

92150E

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock

92150F

BOLT,FLANGED,10X95

92150-1722

1

$10.39

In stock

92160

DAMPER,TOOL CASE

92160-1403

1
Out of stock

92160A

DAMPER

92160-1456

1
Out of stock
