1996 Kawasaki KLX650 Frame Diagram

← All diagrams

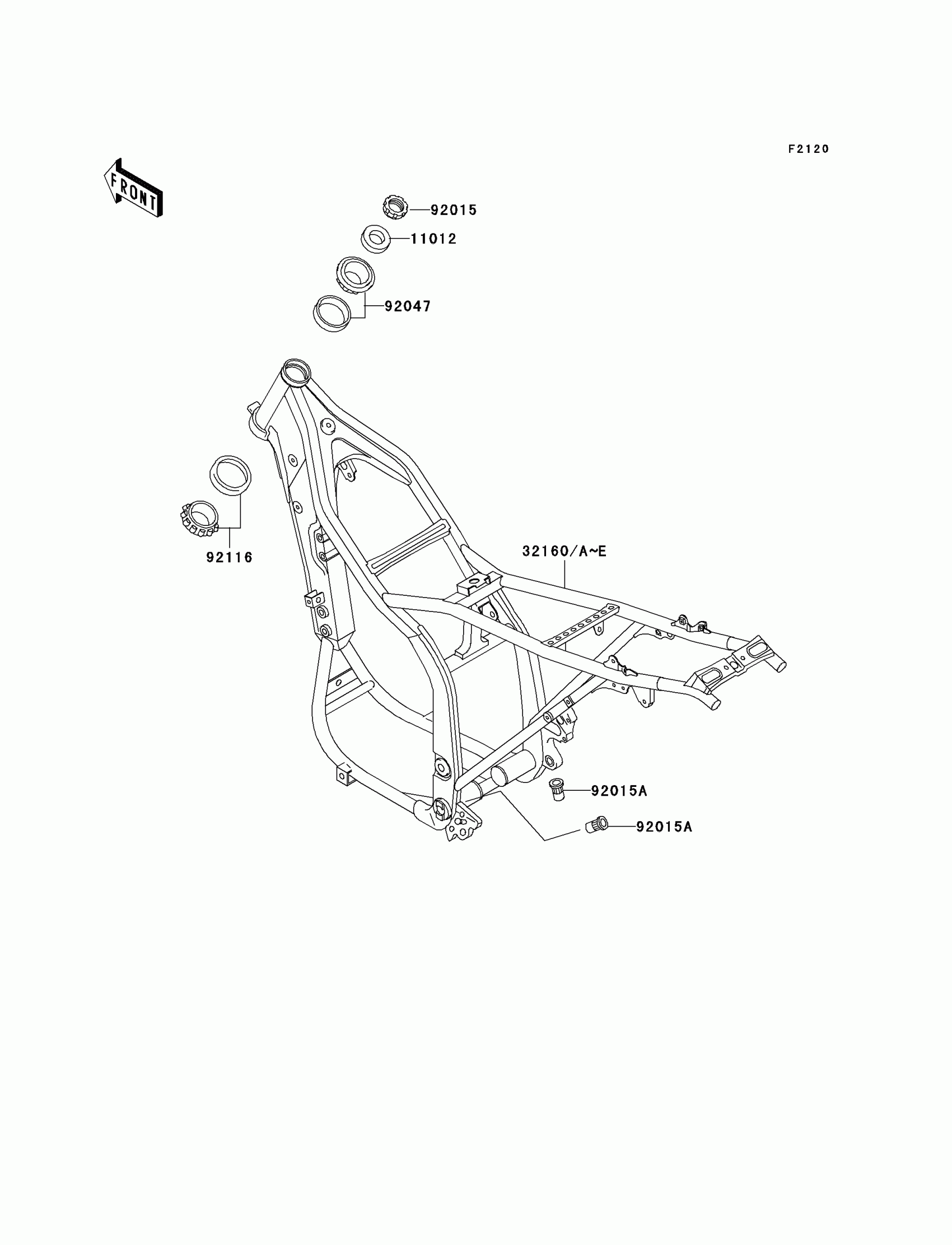

Find the part on the Frame diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

11012-1762

1

$5.37

In stock

92015

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92015A

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92047

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92116

1

$59.23

In stock

32160B

FRAME-COMP,VIOLET

32160-1281-TY

1

$1,975.06

In stock

32160E

FRAME-COMP,VIOLET

32160-1346-TY

1

$1,885.48

In stock
