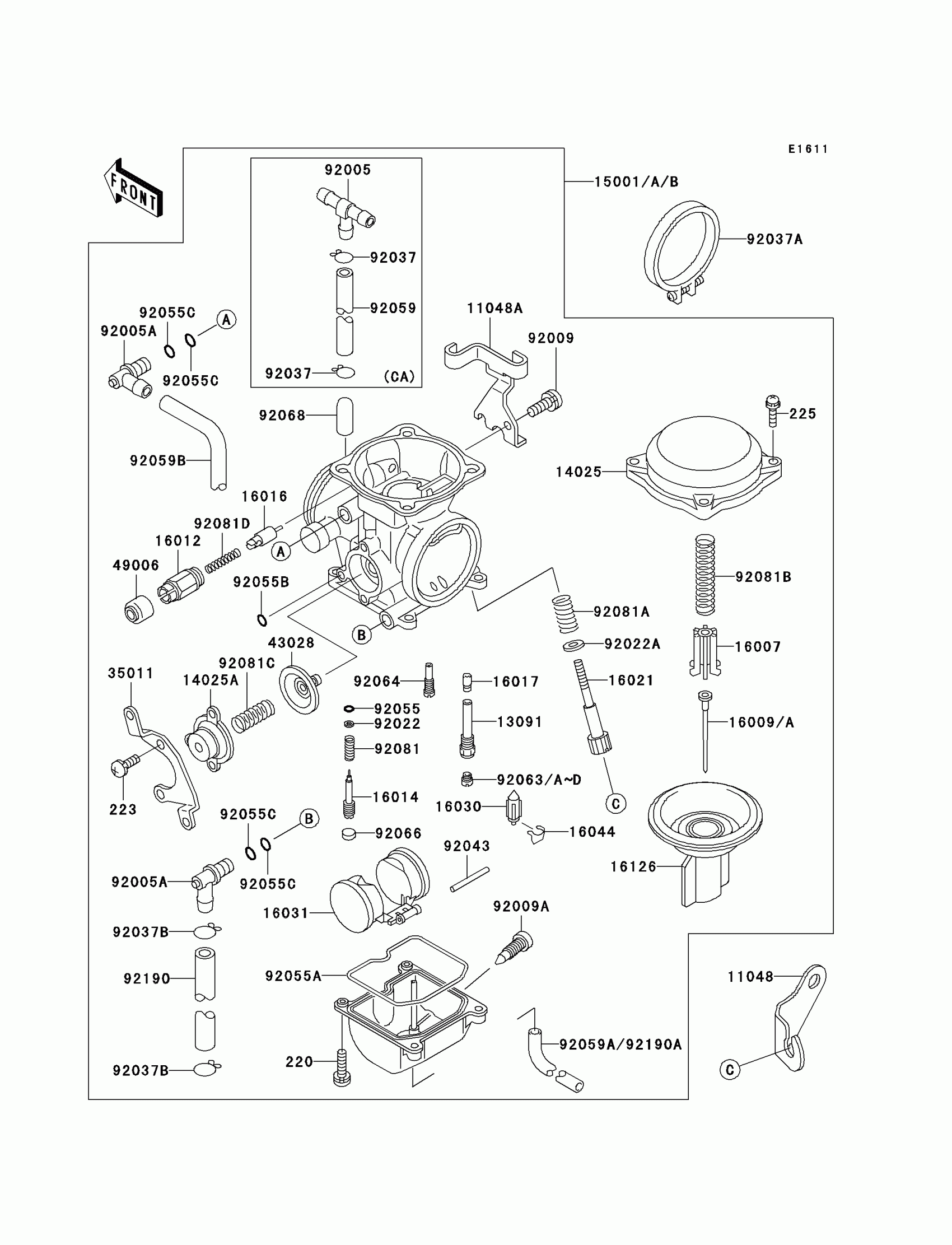

Kawasaki KLX650 Carburetor Diagram

#

Description
Price

11048

BRACKET,CARBURETOR

11048-1210

Unavailable

11048A

BRACKET,THROTTLE CABLE

11048-1275

Unavailable

13091

HOLDER,NEEDLE JET

13091-1425

$26.26

14025

COVER,MIXING CHAMBER

14025-1890

$79.30

14025A

COVER,AIR CUT VALVE

14025-1903

$59.59

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$19.49

16012

CAP-STARTER PLUNGER

16012-1055

$22.24

16014

SCREW-PILOT AIR

16014-1061

$29.68

16016

PLUNGER

16016-1057

$56.92

16017

JET-NEEDLE

16017-1367

$45.61

16021

SCREW-THROTTLE STOP

16021-1145

$115.83

16030

VALVE-FLOAT

16030-1057

$41.75

16031

FLOAT

16031-1056

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1279

$208.03

35011

STAY,AIR CUT VALVE

35011-1232

$38.17

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

49006

BOOT,STARTER PLUNGER

49006-1165

$9.68

92005A

FITTING,L-TYPE

92005-1120

$25.36

92009

SCREW,5X10

92009-1365

$5.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN

92022-1003

$3.29

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037A

CLAMP,55MM

92037-1486

$6.60

92037B

CLAMP,TUBE

92037-1531

$4.18

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

220

SCREW-PAN-CROS,4X14

220D0414

$3.51

223

SCREW-PAN-WS-CROS,4X10

223C0410

$0.63

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92055A

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92055B

RING-O

92055-1245

$4.23

92055C

RING-O

92055-1246

$3.43

92059B

TUBE,6.5X9.5X320

92059-1861

$16.34

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#135

92063-1014

$10.71

92063B

JET-MAIN,#138

92063-1015

$10.71

92063C

JET-MAIN,#142

92063-1016

$13.39

92063D

JET-MAIN,#132

92063-1076

$13.39

92064

JET-PILOT,#40

92064-1108

$12.84

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,THROTTLE STOP SCREW

92081-1617

$5.32

92081B

SPRING,DIAPHRAGM VALVE

92081-1718

$26.00

92081C

SPRING,AIR CUT VALVE

92081-1719

$12.05

92081D

SPRING,PLUNGER

92081-1720

$9.85

92190

TUBE,6.5X11.5X160

92190-1473

$7.47

15001

CARBURETOR-ASSY

15001-1803

Unavailable

15001A

CARBURETOR-ASSY

15001-1870

Unavailable

15001B

CARBURETOR-ASSY

15001-1871

$603.11

16009

NEEDLE-JET,N1RD

16009-1791

Unavailable

16009A

NEEDLE-JET,N23P

16009-1792

Unavailable

92005

FITTING,FUEL,T-TYPE

92005-1112

$10.71

92037

CLAMP,TUBE

92037-1477

$3.29

92059

TUBE,5X9X120

92059-1713

$24.51

92059A

TUBE,3.5X6.5X390

92059-1838

Unavailable

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92068

PLUG,12X25

92068-006

$3.25

92190A

TUBE,3.5X6.5X360

92190-1475

Unavailable
