1996 Kawasaki KLX650 Fuel Evaporative System Diagram

← All diagrams

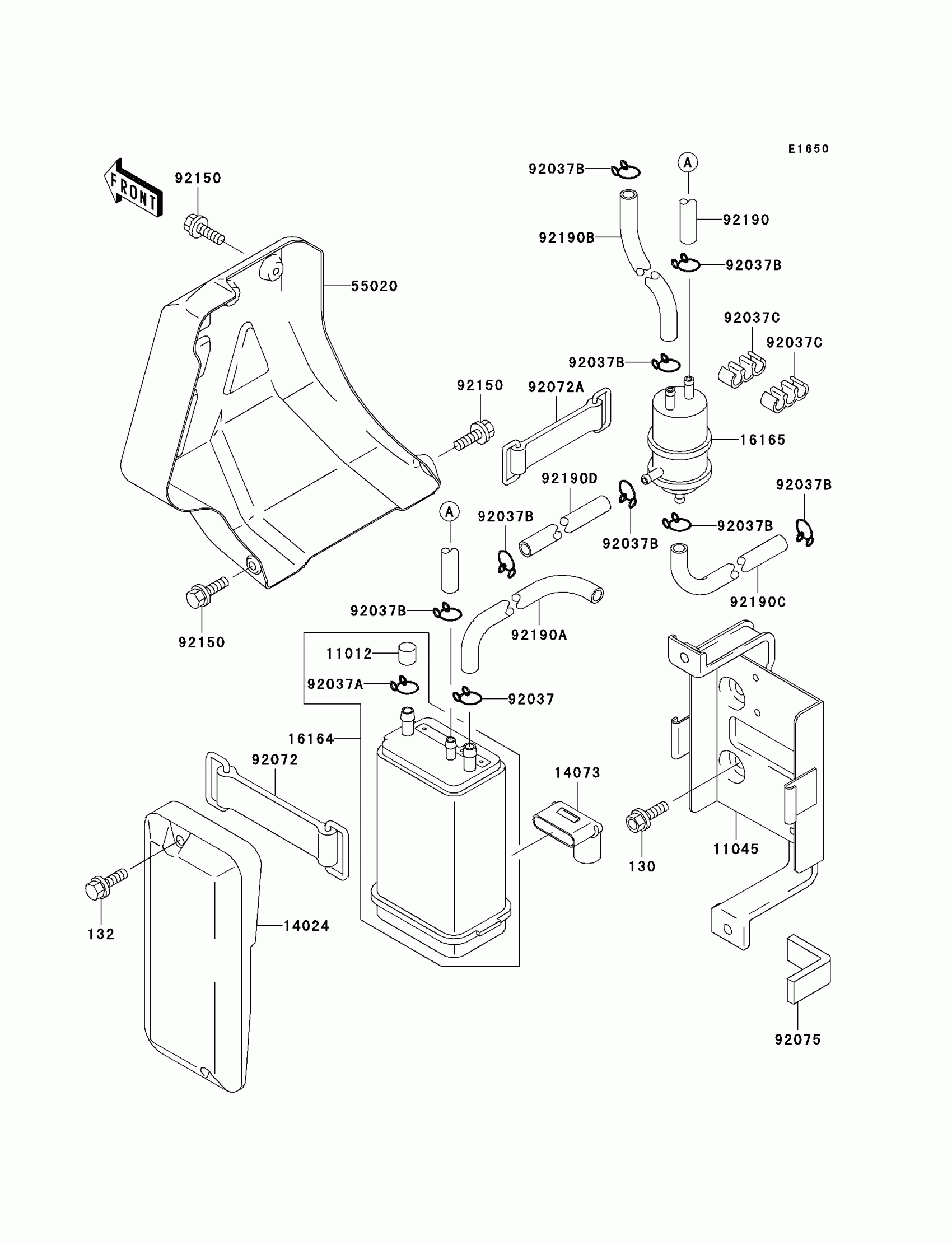

Find the part on the Fuel Evaporative System diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X8

132G0608

1
Out of stock

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

11045

BRACKET,CANISTER

11045-1416

1

$48.28

In stock

14024

COVER,CANISTER

14024-1401

1
Out of stock

14073

DUCT,CANISTER

14073-1219

1

$19.29

In stock

16164

CANISTER

16164-1054

1

$132.79

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

55020

GUARD,EVAPO,P.WHITE

55020-1482-6F

1

$90.36

In stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92037B

CLAMP

92037-1712

1

$3.97

In stock

92037C

CLAMP,TUBE

92037-1941

1

$5.64

In stock

92072

BAND,L=90

92072-045

1

$14.14

In stock

92072A

BAND,L=50

92072-066

1

$12.72

In stock

92075

1

$4.31

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92190

TUBE,5X9X220,BLUE

92190-1448

1

$32.75

In stock

92190A

TUBE,7X12X860,GREEN

92190-1449

1

$16.17

In stock

92190B

TUBE,5X9X561,BLUE

92190-1450

1
Out of stock

92190C

TUBE,4X9X802,WHITE

92190-1451

1

$15.01

In stock

92190D

TUBE,5X9X581,RED

92190-1452

1
Out of stock
