2015 Kawasaki KLX450R (Australian) Swingarm Diagram

← All diagrams

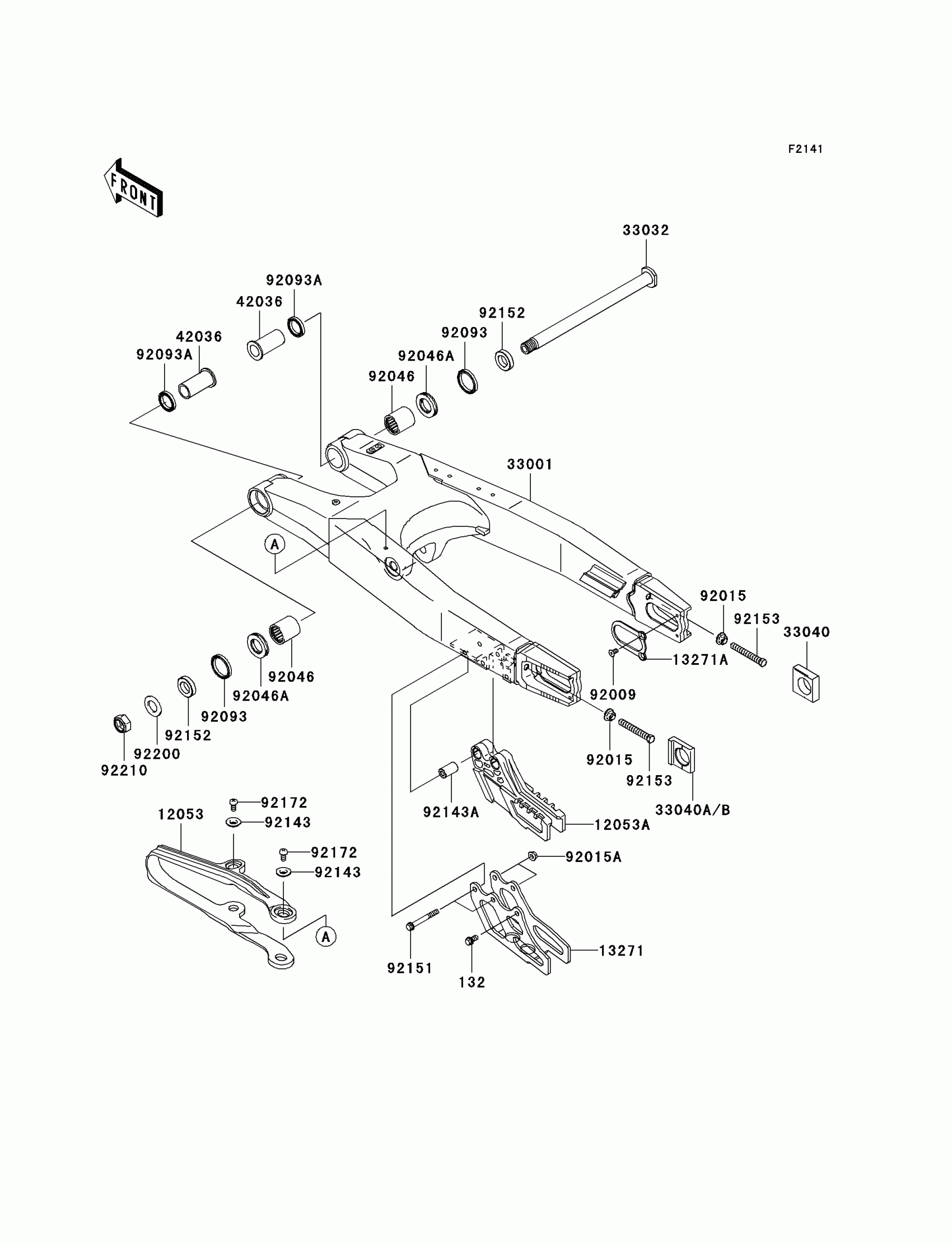

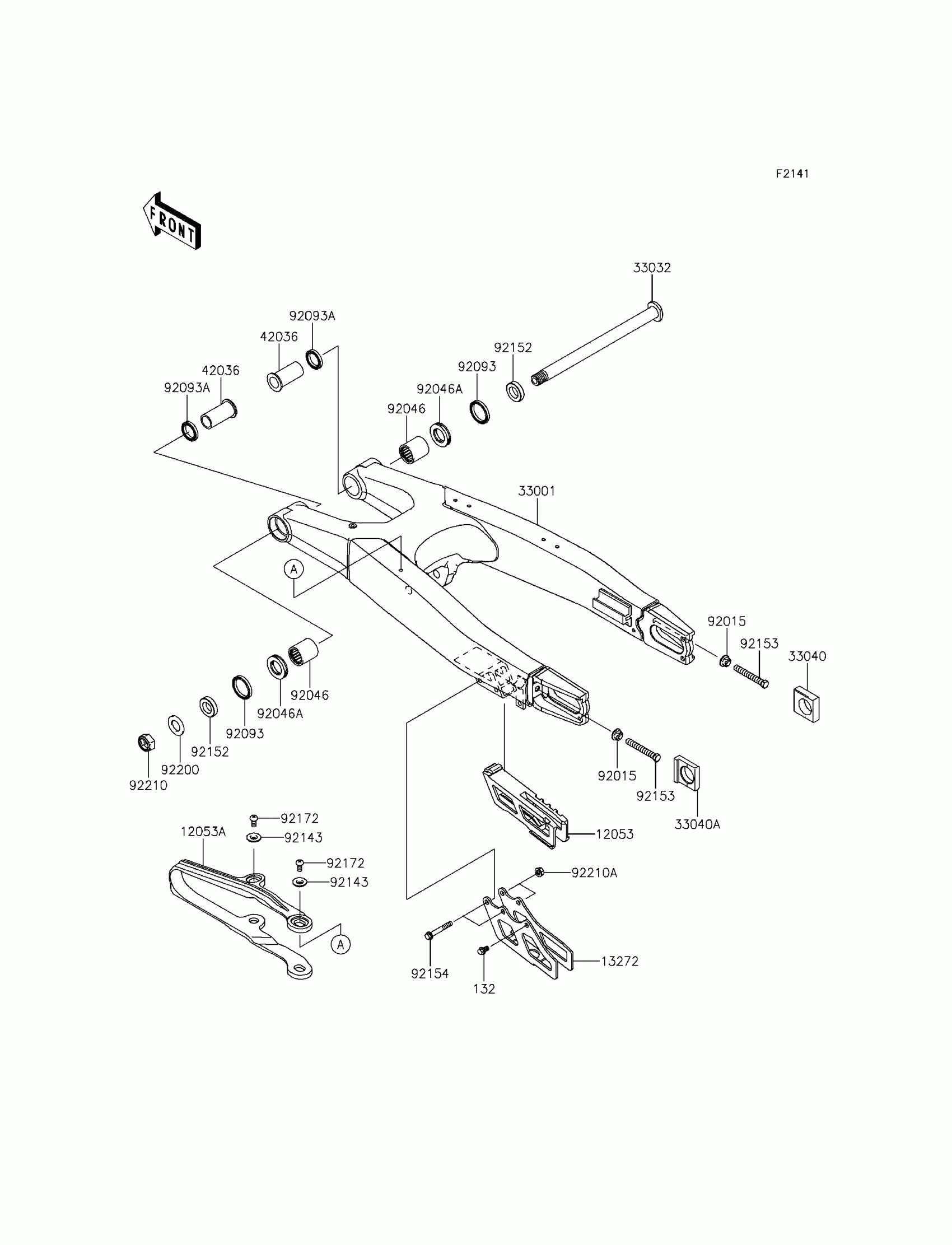

Find the part on the Swingarm diagram for your 2015 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki KLX450R (Australian) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.47

In stock

12053

GUIDE-CHAIN

12053-0125

1
Out of stock

12053A

GUIDE-CHAIN,HARDNESS UP

12053-0192

1
Out of stock

13272

PLATE,CHAIN GUIDE

13272-1169

1

$37.66

In stock

33001

ARM-COMP-SWING

33001-0594

1
Out of stock

33032

SHAFT-SWING ARM

33032-0012

1
Out of stock

33040

ADJUSTER-CHAIN,RH

33040-0020

1
Out of stock

33040A

ADJUSTER-CHAIN,LH

33040-0075

1
Out of stock

42036

SLEEVE,SWING ARM,L=47.5

42036-0019

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

1
Out of stock

92093

SEAL,SDO29X35X4.5

92093-1434

1
Out of stock

92093A

SEAL,SDO22X29X5

92093-1435

1
Out of stock

92143

COLLAR

92143-1676

1
Out of stock

92152

COLLAR,17.1X29X6

92152-0292

1
Out of stock

92153

BOLT,8X56

92153-0620

1
Out of stock

92154

BOLT,FLANGED,6X42

92154-0511

1
Out of stock

92172

SCREW,5X8

92172-0119

1
Out of stock

92200

WASHER,17.2X30X2.3

92200-0285

1
Out of stock

92210

NUT,LOCK,16MM

92210-0285

1
Out of stock

92210A

NUT,FLANGED,6MM

92210-0630

1
Out of stock
