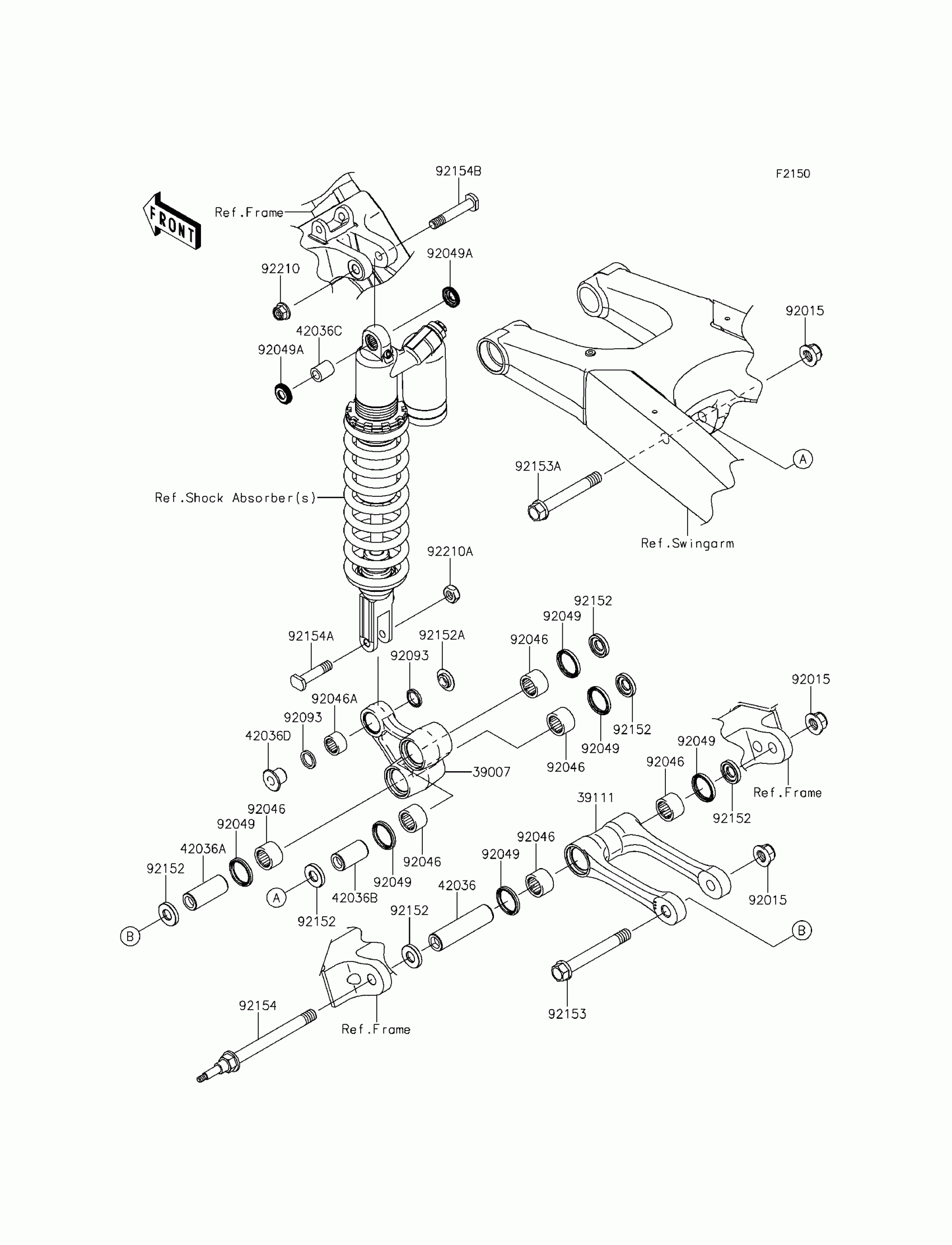

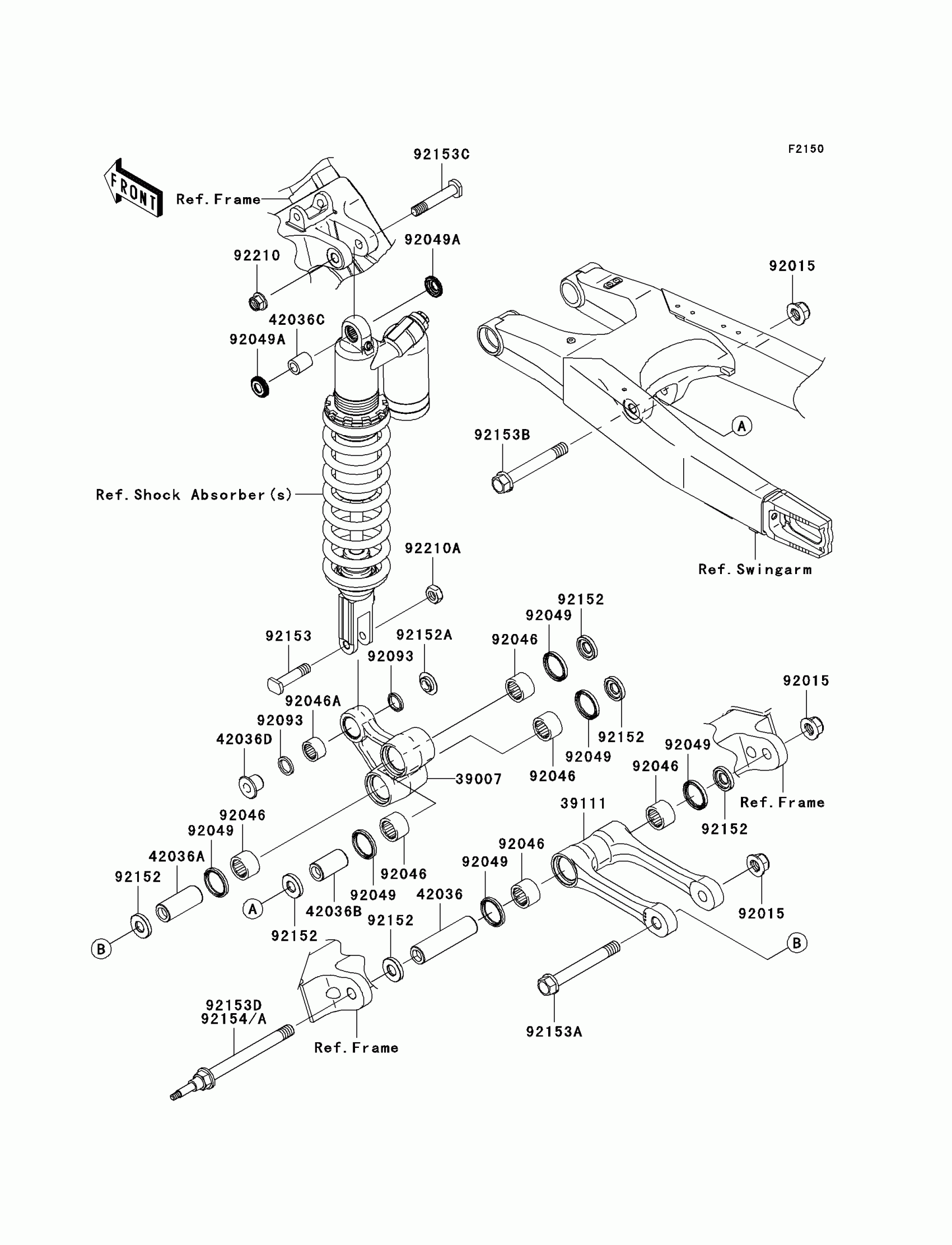

Find the part on the Suspension diagram for your 2012 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki KLX450R (Australian) Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-0073

1

$258.18

In stock

39111

ROD-TIE,SUSPENSION

39111-0041

1

$124.28

In stock

42036

SLEEVE,ROD,L=78.4

42036-0020

1

$16.81

In stock

42036A

1

$12.95

In stock

42036B

1

$11.42

In stock

42036C

SLEEVE,10X16X19.3

42036-0030

1

$9.45

In stock

42036D

SLEEVE

42036-1351

1

$8.94

In stock

92015

1

$7.04

In stock

92046

BEARING-NEEDLE,F-2016

92046-1151

1
Out of stock

92046A

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL,SDO26X32X4

92049-0063

1
Out of stock

92049A

SEAL-OIL

92049-0069

1
Out of stock

92093

SEAL

92093-1436

1

$5.77

In stock

92152

COLLAR

92152-0425

1

$7.99

In stock

92152A

COLLAR

92152-1139

1

$7.04

In stock

92153

BOLT,10X45

92153-0937

1
Out of stock

92153A

BOLT,FLANGED,12X95

92153-0938

1
Out of stock

92153B

BOLT,FLANGED,12X86

92153-0939

1
Out of stock

92153C

BOLT,10X58

92153-1386

1
Out of stock

92154A

BOLT,12X122

92154-0394

1

$30.70

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1184

1
Out of stock
