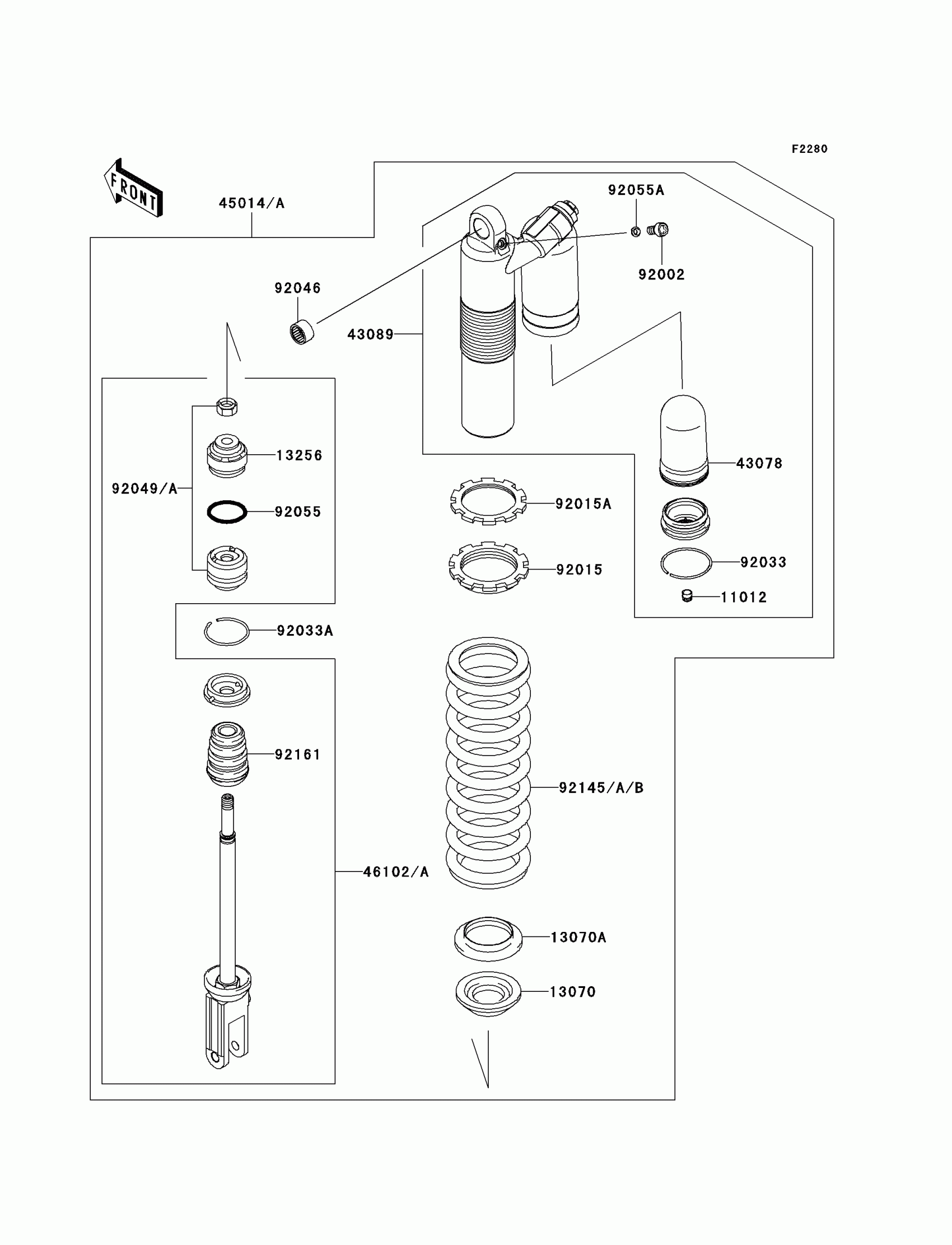

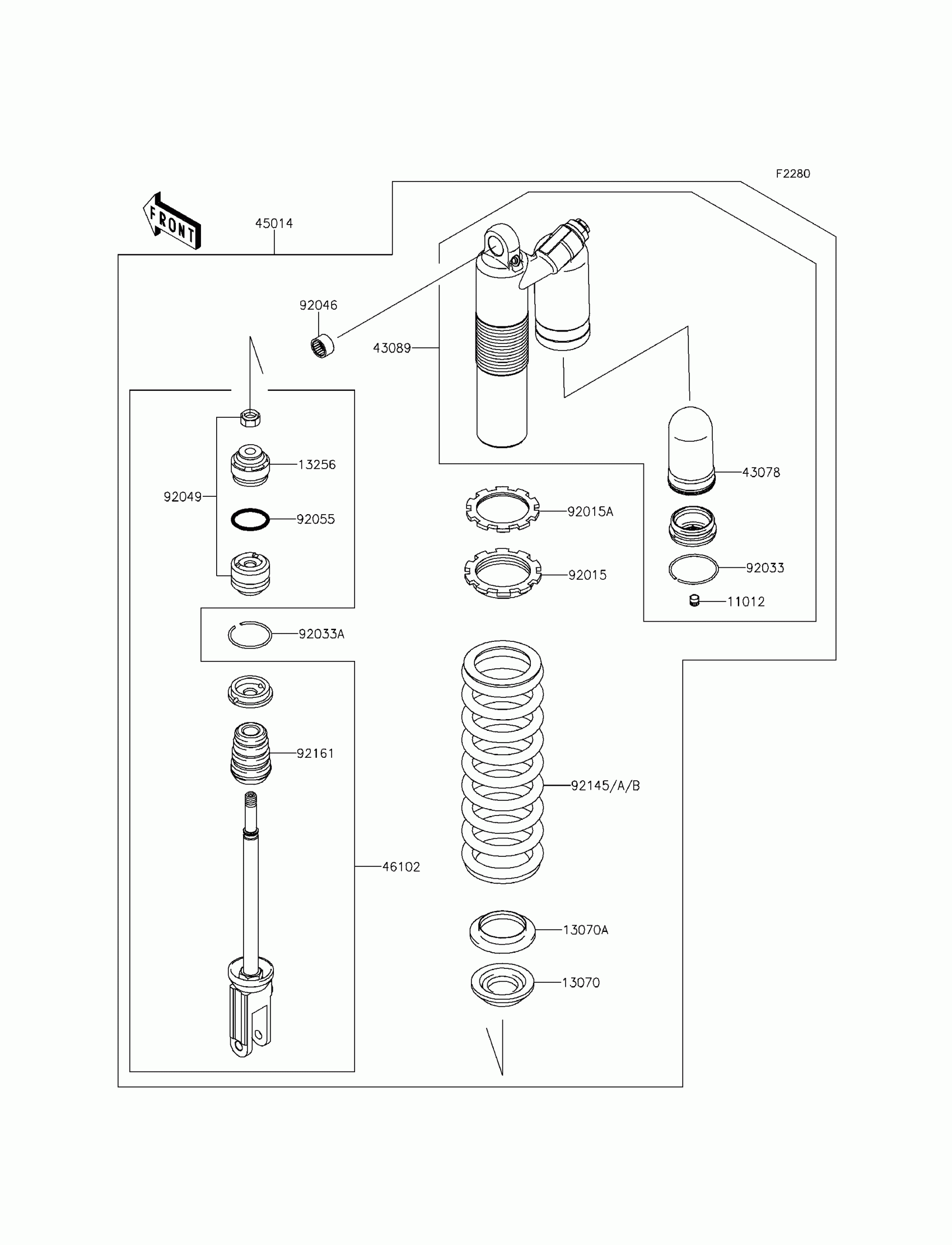

Kawasaki KLX450R (Australian) Shock Absorber(s) Diagram

Description

Price

11012

CAP,AIR VALVE

11012-1552

$5.37

13070

GUIDE,SPRING

13070-0029

$21.03

13070A

GUIDE,SPRING

13070-1362

$34.31

13256

PISTON,SHOCKABSORBER

13256-0002

$112.75

43078

RESERVOIR,SHOCKABSORBER

43078-0031

$26.14

43089

CYLINDER-SHOCKABSORBER,GOLD

43089-0010-829

$755.47

45014

SHOCK,SPRING SIL+BODY GOLD

45014-0252-23D

$1,436.70

46102A

ROD,SHOCKABSORBER

46102-0137

$553.21

92002

BOLT,DRAIN

92002-1955

$10.73

92015

NUT,SPRING ADJUST

92015-1703

$41.28

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$33.96

92033

RING-SNAP

92033-0044

$4.92

92033A

RING-SNAP

92033-1209

$7.01

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$14.73

92049A

SEAL-OIL

92049-0100

$119.66

92055

RING-O,ROD

92055-1346

$9.92

92055A

RING-O

92055-1383

$3.14

92145

SPRING,SHOCK,K=50.0N/MM,SIL

92145-0015-8V

$227.93

92145A

SPRING,SHOCK,K=52N/MM,I.SILVER

92145-0016-8V

$227.93

92145B

SPRING,SHOCK,K=54N/MM,I.SILVER

92145-0244-8V

$227.14

92161

DAMPER,SHOCKABSORBER

92161-1172

$20.63
