2004 Kawasaki KLX400SR (Canada Only) Water Pump Diagram

← All diagrams

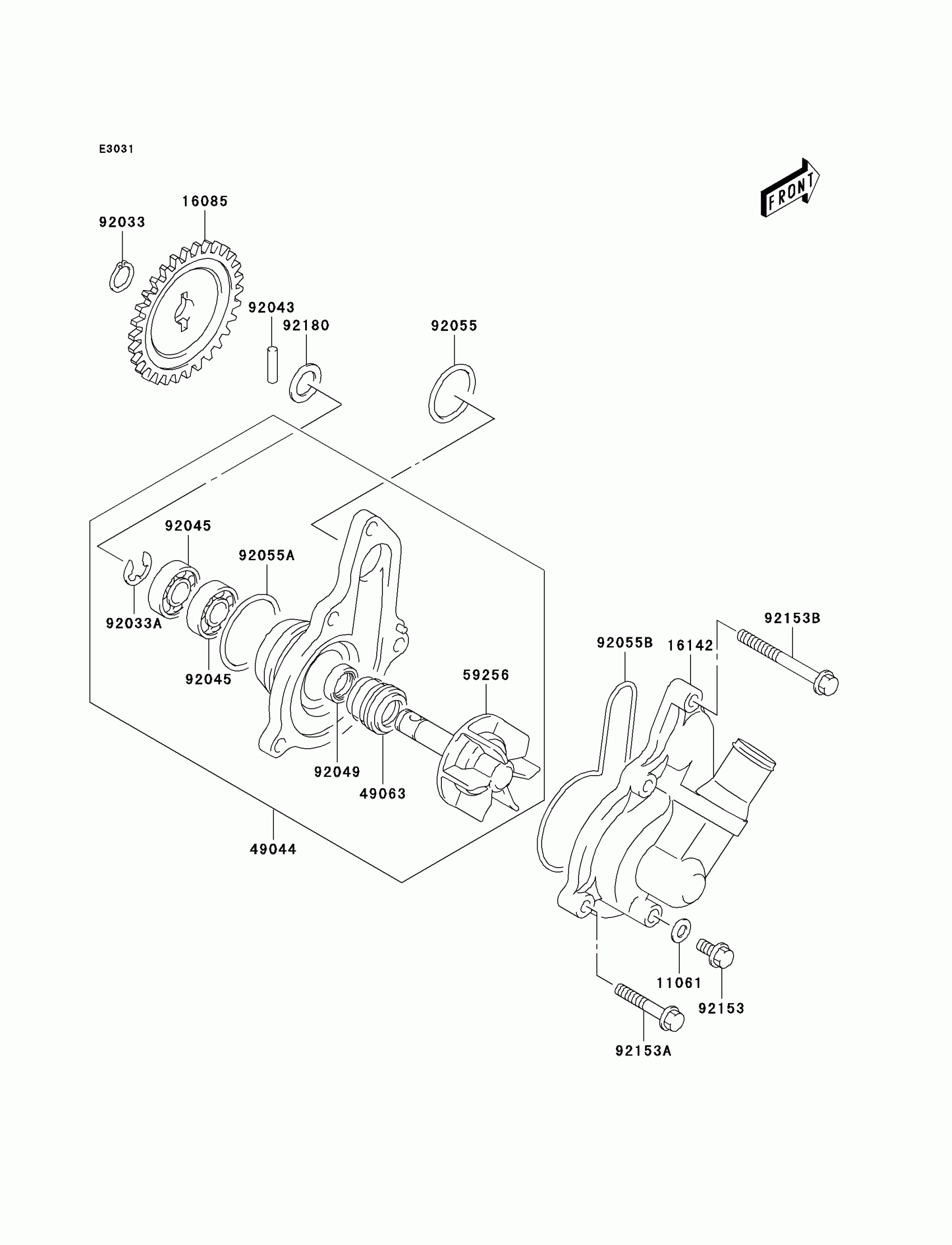

Find the part on the Water Pump diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-S045

1
Out of stock

16085

GEAR,WATER PUMP

16085-S005

1
Out of stock

16142

COVER-PUMP

16142-S002

1
Out of stock

49044

PUMP-WATER

49044-S004

1
Out of stock

49063

SEAL-MECHANICAL,WATER PUMP

49063-S004

1
Out of stock

59256

IMPELLER

59256-S003

1
Out of stock

92033

RING-SNAP

92033-S001

1
Out of stock

92033A

RING-SNAP

92033-S006

1
Out of stock

92043

PIN,WATER PUMP

92043-S039

1
Out of stock

92045

BEARING-BALL

92045-S046

1
Out of stock

92049

SEAL-OIL

92049-S054

1
Out of stock

92055

RING-O,D=2.4

92055-S007

1
Out of stock

92055A

RING-O

92055-S015

1
Out of stock

92055B

RING-O,WATER PUMP

92055-S066

1
Out of stock

92153

BOLT

92153-S143

1
Out of stock

92153A

BOLT,6X30

92153-S261

1
Out of stock

92153B

BOLT,CLUTCH COVER

92153-S262

1
Out of stock

92180

SHIM,10X18X0.5

92180-S001

1
Out of stock
