2004 Kawasaki KLX400SR (Canada Only) Transmission Diagram

← All diagrams

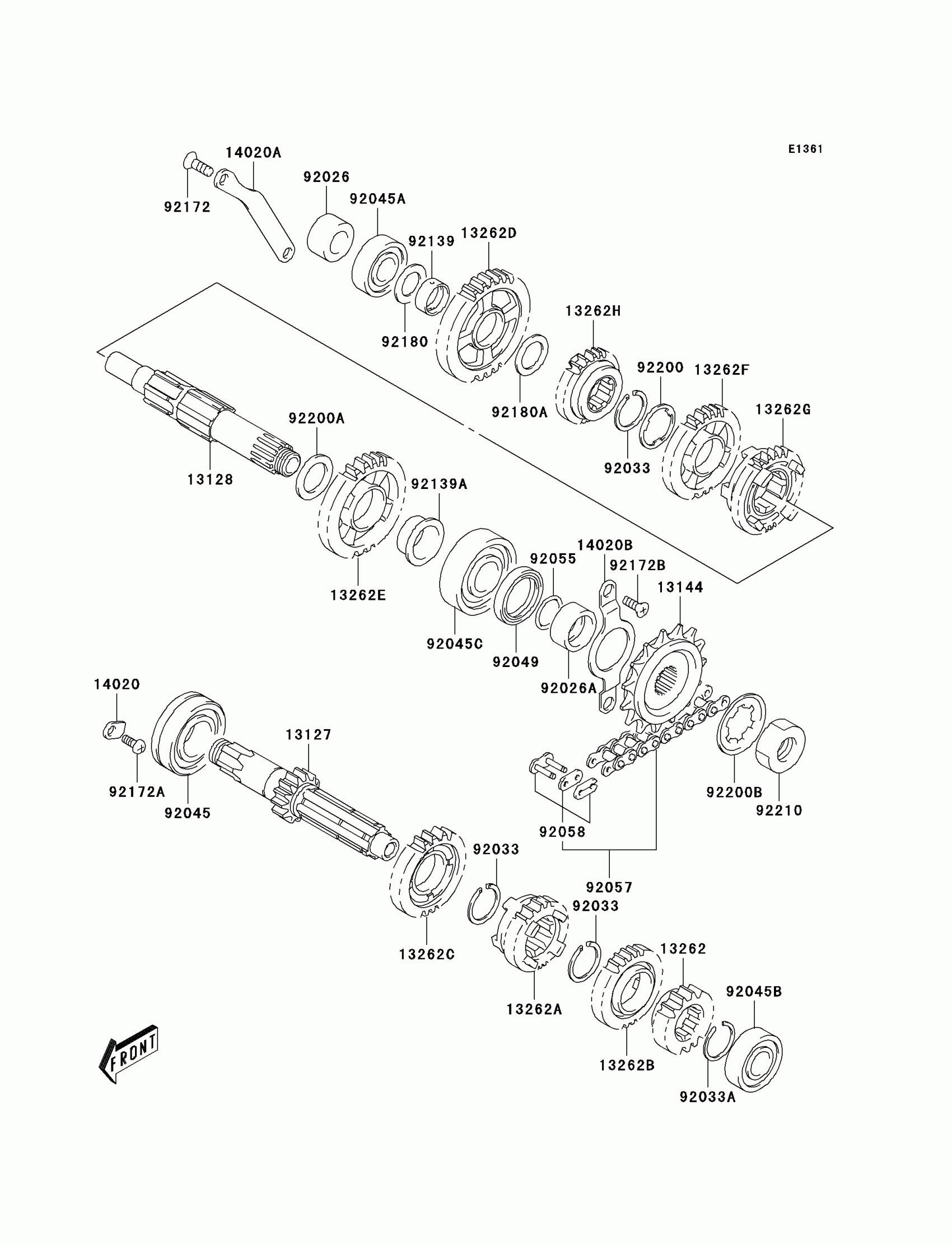

Find the part on the Transmission diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT

13127-S008

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-S010

1
Out of stock

13144

SPROCKET-OUTPUT,15T

13144-S008

1
Out of stock

13262

GEAR,INPUT 2ND,15T

13262-S024

1
Out of stock

13262A

GEAR,INPUT 3RD,16T

13262-S025

1
Out of stock

13262B

GEAR,INPUT 4TH,22T

13262-S026

1
Out of stock

13262C

GEAR,INPUT 5TH,22T

13262-S027

1
Out of stock

13262D

GEAR,OUTPUT LOW,32T

13262-S028

1
Out of stock

13262E

GEAR,OUTPUT 2ND,26T

13262-S029

1
Out of stock

13262F

GEAR,OUTPUT 3RD,22T

13262-S030

1
Out of stock

13262G

GEAR,OUTPUT 4TH,24T

13262-S031

1
Out of stock

13262H

GEAR,OUTPUT 5TH,19T

13262-S032

1
Out of stock

14020

RETAINER

14020-S008

1
Out of stock

14020A

RETAINER,KICK

14020-S011

1
Out of stock

14020B

RETAINER,DRIVE SHAFT

14020-S012

1
Out of stock

92026

SPACER,17X30.5X16.3

92026-S124

1
Out of stock

92026A

SPACER

92026-S125

1
Out of stock

92033

RING-SNAP

92033-S049

1
Out of stock

92033A

RING-SNAP

92033-S050

1
Out of stock

92045

BEARING-BALL,25X52X15

92045-S018

1
Out of stock

92045A

BEARING-BALL,17X40X12

92045-S035

1
Out of stock

92045B

BEARING-BALL

92045-S051

1
Out of stock

92045C

BEARING-BALL

92045-S057

1
Out of stock

92049

SEAL-OIL,30X40X6

92049-S019

1
Out of stock

92055

RING-O,D=2.5

92055-S034

1
Out of stock

92057

CHAIN,DRIVE(RK520KZOX112L)

92057-S013

1
Out of stock

92058

JOINT-CHAIN

92058-S004

1
Out of stock

92139

BUSHING

92139-S032

1
Out of stock

92139A

BUSHING

92139-S033

1
Out of stock

92172

SCREW

92172-S012

1
Out of stock

92172A

SCREW

92172-S170

1
Out of stock

92172B

SCREW,RETAINER

92172-S171

1
Out of stock

92180

SHIM,17X30X1.0

92180-S014

1
Out of stock

92180A

SHIM,20X30X1.0

92180-S015

1
Out of stock

92200

WASHER

92200-S145

1
Out of stock

92200A

WASHER,22X34X1.0

92200-S187

1
Out of stock

92200B

WASHER

92200-S188

1
Out of stock

92210

NUT

92210-S126

1
Out of stock
