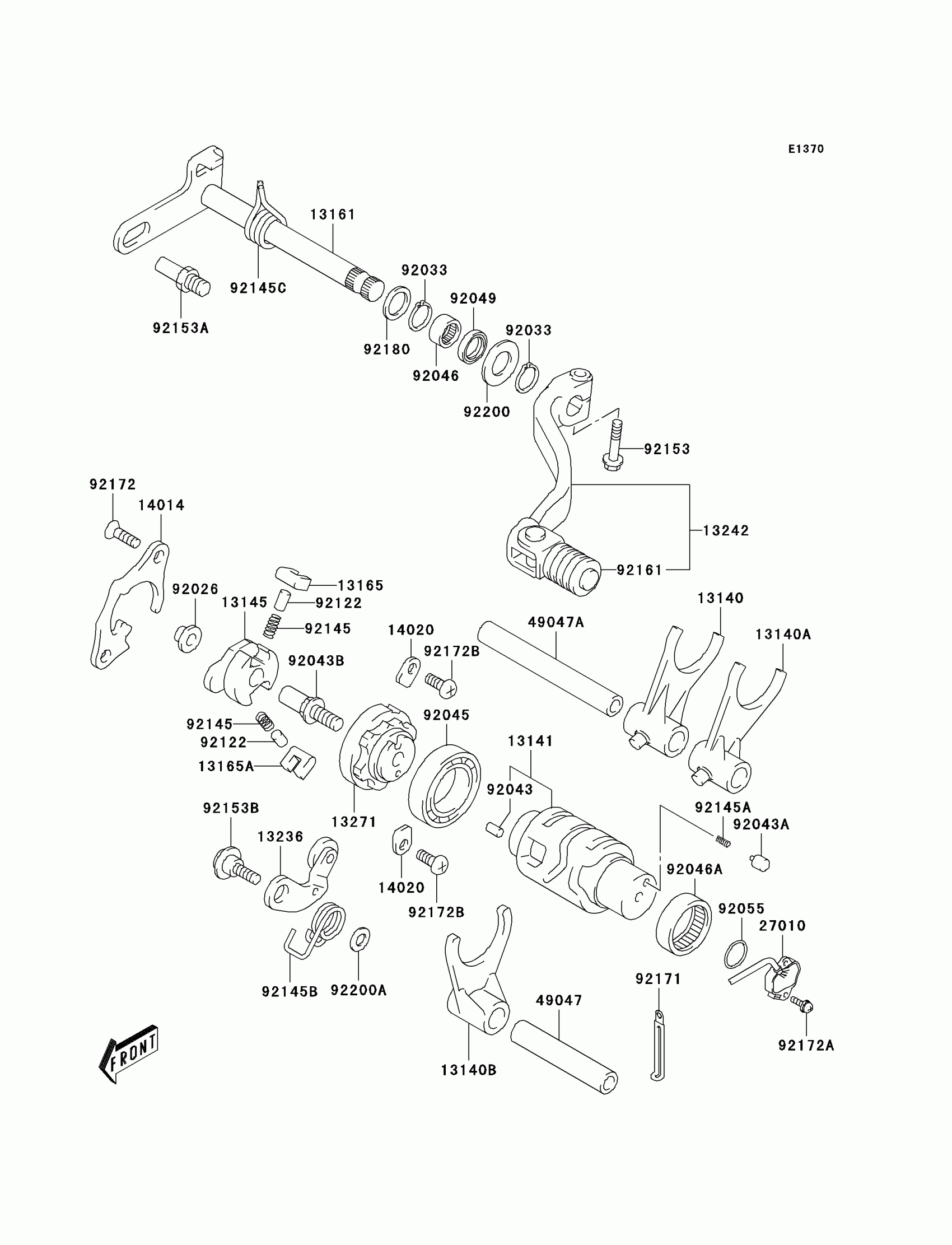

Kawasaki KLX400SR (Canada Only) Gear Change Mechanism Diagram

#

Description
Price

13140

FORK-SHIFT

13140-S012

$68.94

13140A

FORK-SHIFT

13140-S013

$68.94

13140B

FORK-SHIFT

13140-S014

$67.41

13141

DRUM-CHANGE

13141-S007

$144.79

13145

CAM-CHANGE DRUM

13145-S004

$50.97

13161

LEVER-COMP-CHANGE SHAFT

13161-S006

$61.63

13165

PAWL

13165-S003

$8.44

13165A

PAWL

13165-S004

Unavailable

13236

LEVER-COMP

13236-S006

$13.64

13242

LEVER-ASSY-CHANGE

13242-S005

Unavailable

13271

PLATE

13271-S046

$52.91

14014

PLATE-POSITION

14014-S004

Unavailable

14020

RETAINER

14020-S008

$2.76

27010

SWITCH

27010-S028

$113.74

49047

ROD-SHIFT

49047-S007

$15.08

49047A

ROD-SHIFT

49047-S008

$19.90

92026

SPACER,GEAR SHIFT CAM

92026-S087

$4.39

92033

RING-SNAP

92033-S037

Unavailable

92043

PIN,CAM STOPPER PLATE

92043-S035

$1.29

92043A

PIN,GEAR SHIFT

92043-S038

$2.00

92043B

PIN,SHIFT CAM

92043-S041

$10.93

92045

BEARING-BALL,GEAR SHIFT

92045-S047

$38.12

92046

BEARING-NEEDLE,14X20X12

92046-S008

$17.64

92046A

BEARING-NEEDLE,GEAR SHIFT CAM

92046-S020

$23.17

92049

SEAL-OIL,GEAR SHIFT

92049-S050

$5.92

92055

RING-O,26.2X2.4

92055-S055

$2.31

92122

ROLLER,5X8

92122-S005

$1.41

92145

SPRING

92145-S037

$1.63

92145A

SPRING

92145-S089

$1.49

92145B

SPRING

92145-S128

$4.36

92145C

SPRING

92145-S137

$8.08

92153

BOLT

92153-S003

Unavailable

92153A

BOLT

92153-S292

$4.81

92153B

BOLT,CAM STOPPER

92153-S328

$7.73

92161

DAMPER,GEAR SHIFT PEDAL

92161-S057

$5.63

92171

CLAMP,L=45

92171-S132

$1.88

92172

SCREW

92172-S112

Unavailable

92172A

SCREW

92172-S132

$1.64

92172B

SCREW

92172-S170

$2.08

92180

SHIM,GEAR SHIFT

92180-S045

$2.53

92200

WASHER,14X29X1.50

92200-S086

$4.07

92200A

WASHER

92200-S127

$1.68
