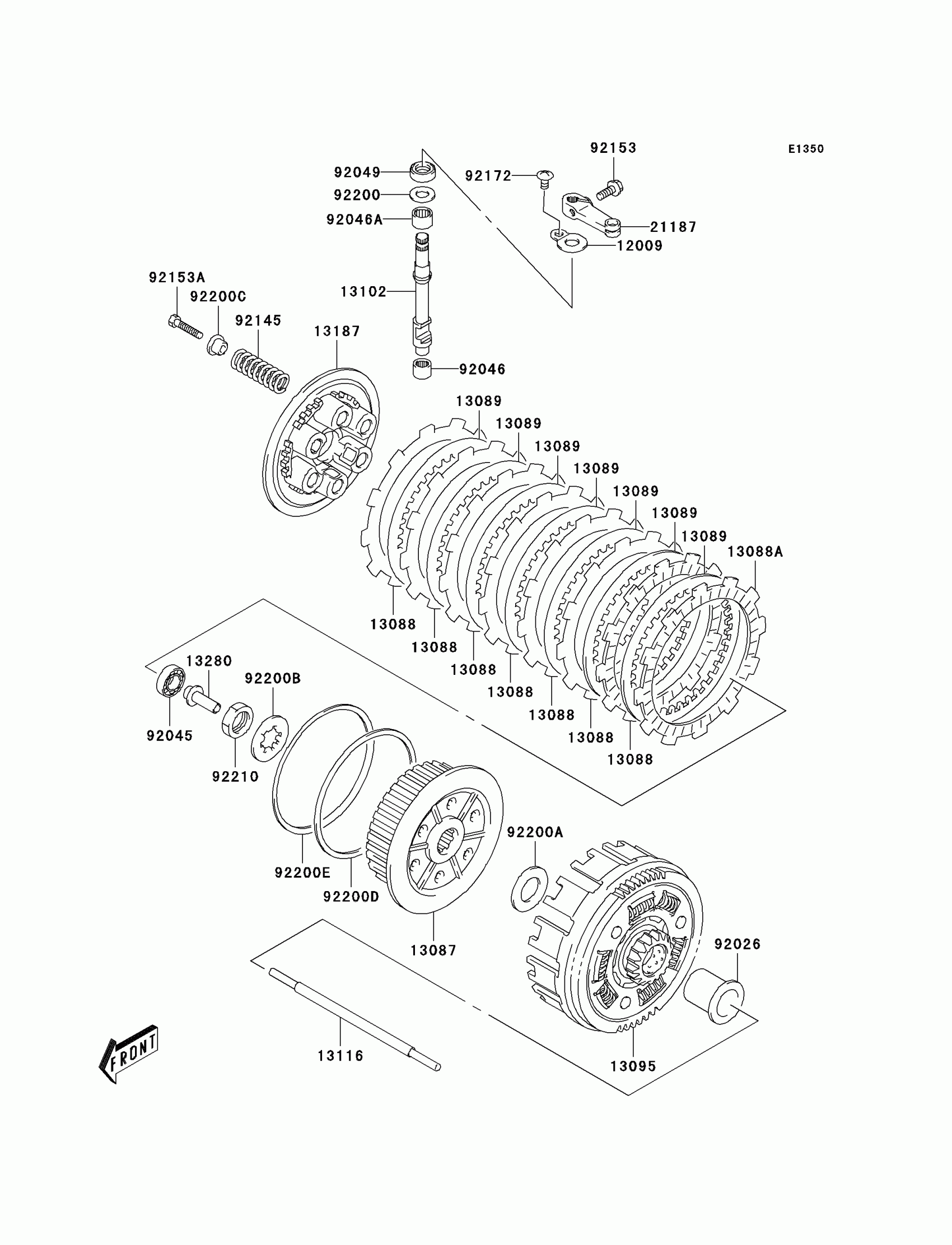

Kawasaki KLX400SR (Canada Only) Clutch Diagram

#

Description
Price

12009

RETAINER-VALVE SPRING

12009-S003

$4.66

13087

HUB-CLUTCH

13087-S005

$114.84

13088

PLATE-FRICTION,NO.1

13088-S003

$16.85

13088A

PLATE-FRICTION,NO.2

13088-S004

$19.54

13089

PLATE-CLUTCH

13089-S003

$7.86

13095

HOUSING-COMP-CLUTCH

13095-S008

$305.17

13102

RELEASE-COMP-CLUTCH

13102-S003

$50.94

13116

ROD-PUSH

13116-S004

$20.86

13187

PLATE-CLUTCH OPERATING

13187-S004

$52.31

13280

HOLDER,CLUTCH PUSH

13280-S025

$22.69

21187

ARM-ASSY,CLUTCH RELEASE

21187-S004

$33.26

92026

SPACER

92026-S094

$47.24

92045

BEARING-BALL,12X28X8

92045-S004

$19.85

92046

BEARING-NEEDLE,CAM SHAFT,LOW

92046-S014

$14.58

92046A

BEARING-NEEDLE,CAM SHAFT,UPP

92046-S015

$13.73

92049

SEAL-OIL,10X20X6

92049-S018

$8.78

92145

SPRING,CLUTCH

92145-S100

$6.70

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S082

$1.71

92172

SCREW

92172-S092

Unavailable

92200

WASHER,10X20X1.0

92200-S061

$2.20

92200A

WASHER,CLUTCH

92200-S131

$4.20

92200B

WASHER,CLUTCH

92200-S144

$1.85

92200C

WASHER,CLUTCH SPRING

92200-S153

$7.73

92200D

WASHER

92200-S185

$12.58

92200E

WASHER

92200-S186

$19.76

92210

NUT,CLUTCH

92210-S103

$4.05
