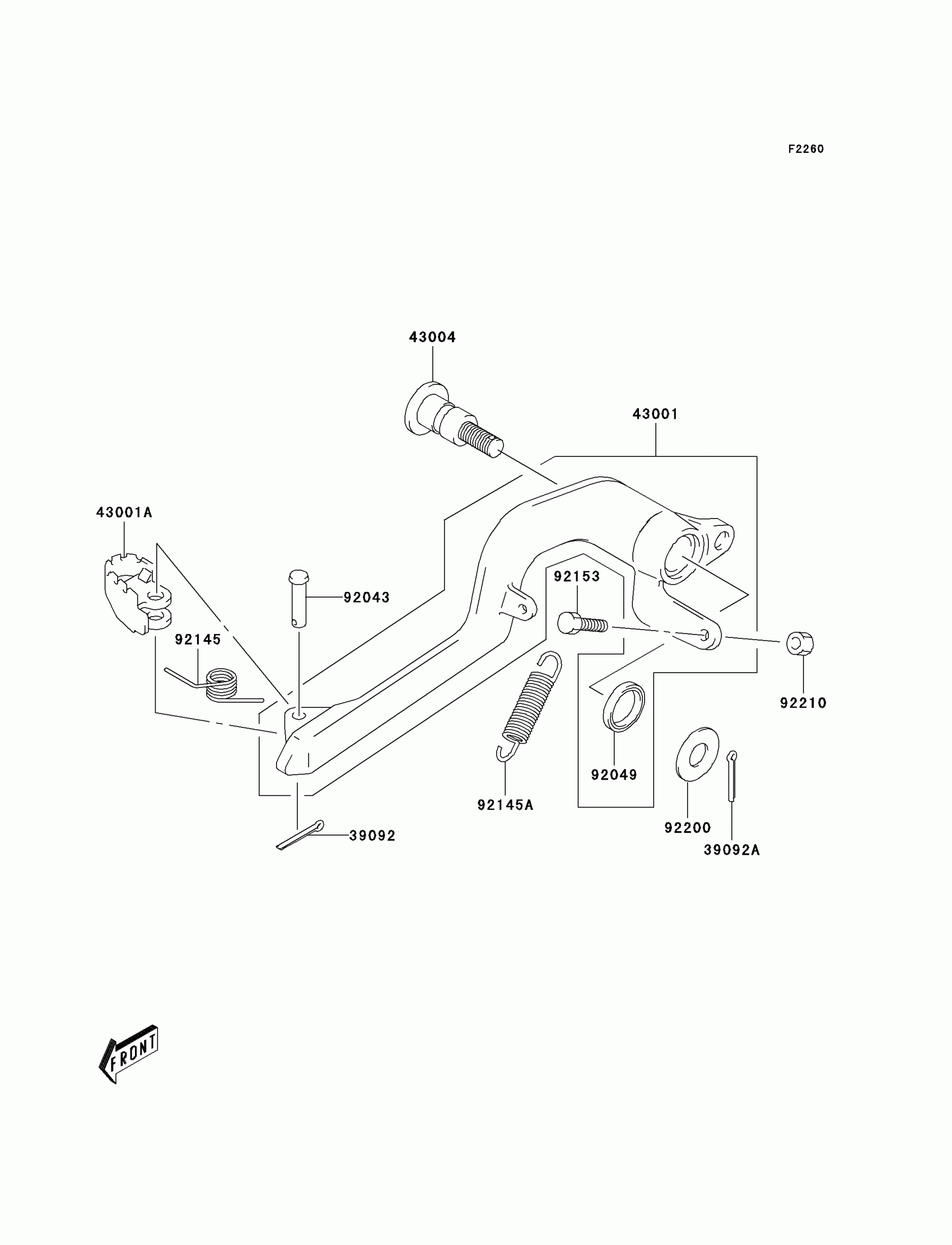

Kawasaki KLX400SR (Canada Only) Brake Pedal Diagram

Description

Price

39092

PIN-HAIR,FR FOOTREST COTTER

39092-S004

Unavailable

39092A

PIN-HAIR,COTTER

39092-S005

$1.42

43001

LEVER-BRAKE,ARM

43001-S006

$154.90

43001A

LEVER-BRAKE,PEDAL

43001-S007

$11.00

43004

SHAFT-BRAKE

43004-S001

Unavailable

92043

92043-S049

$2.27

92049

SEAL-OIL

92049-S057

$3.98

92145

SPRING

92145-S133

$3.83

92145A

SPRING

92145-S134

$4.42

92153

BOLT,BRAKE SWITCH

92153-S330

$4.05

92200

WASHER

92200-S067

$2.27

92210

NUT

92210-S001

$1.42
