2025 Kawasaki KLX300SM Rear Hub Diagram

← All diagrams

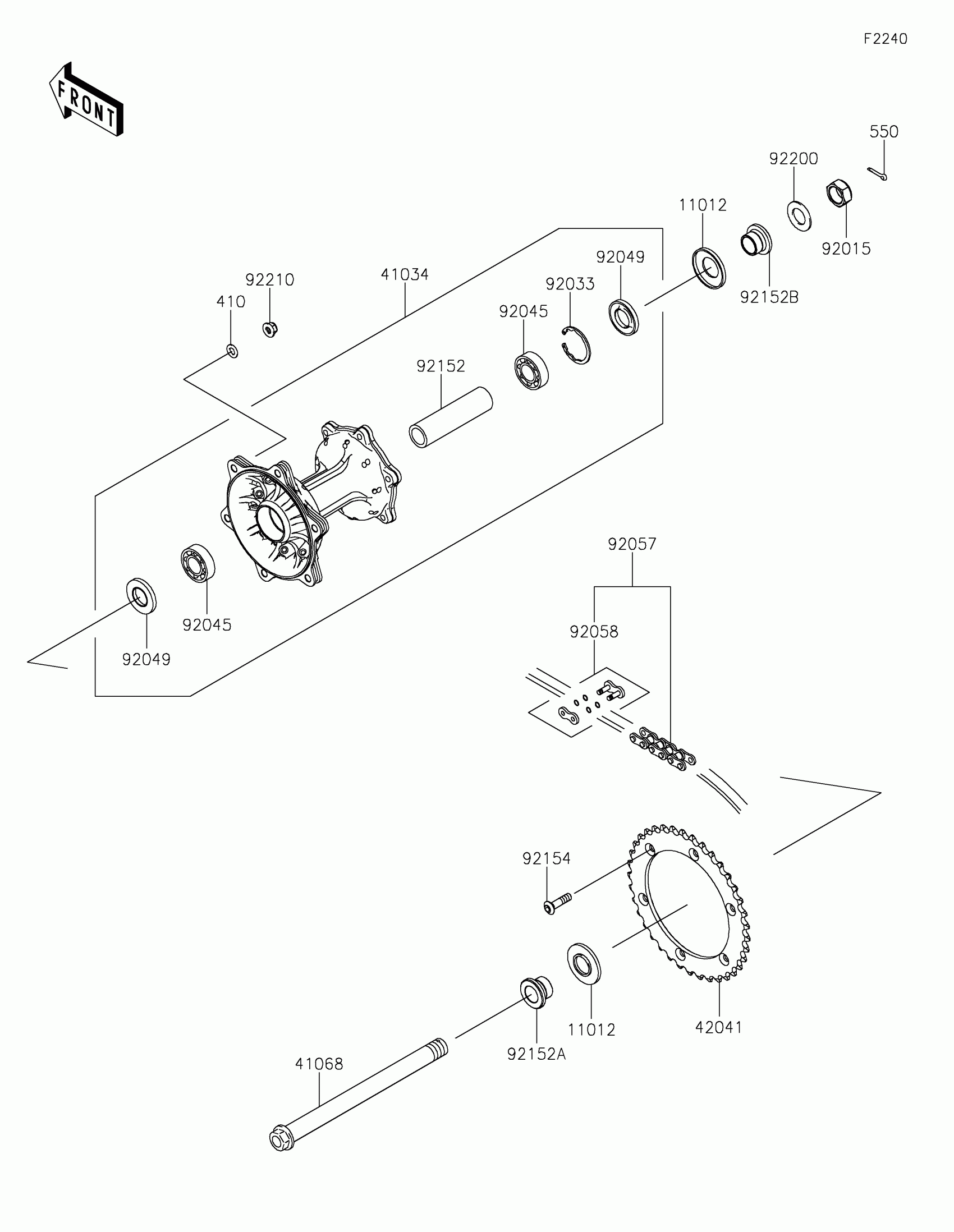

Find the part on the Rear Hub diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AXLE

11012-1581

1

$5.15

In stock

41034

1

$483.13

In stock

41068

AXLE,RR,20X250

41068-0602

1

$82.45

In stock

42041

SPROCKET-HUB,37T

42041-0184

1

$60.59

In stock

92015

NUT,LOCK,20MM

92015-1770

1

$28.80

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$33.49

In stock

92049

SEAL-OIL,BJNC2 25425

92049-1203

1
Out of stock

92057

1

$172.89

In stock

92058

JOINT-CHAIN,DRIVE

92058-1102

1

$11.91

In stock

92152

1

$15.76

In stock

92152A

1

$38.33

In stock

92152B

1

$38.33

In stock

92154

BOLT,SOCKET,8X28

92154-4183

1

$1.39

In stock

92200

WASHER,20.2X36X2

92200-1146

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0493

1
Out of stock

410

1

$0.84

In stock

550

PIN-COTTER,3.0X25

550AA3025

1

$0.67

In stock
