2025 Kawasaki KLX300SM Swingarm Diagram

← All diagrams

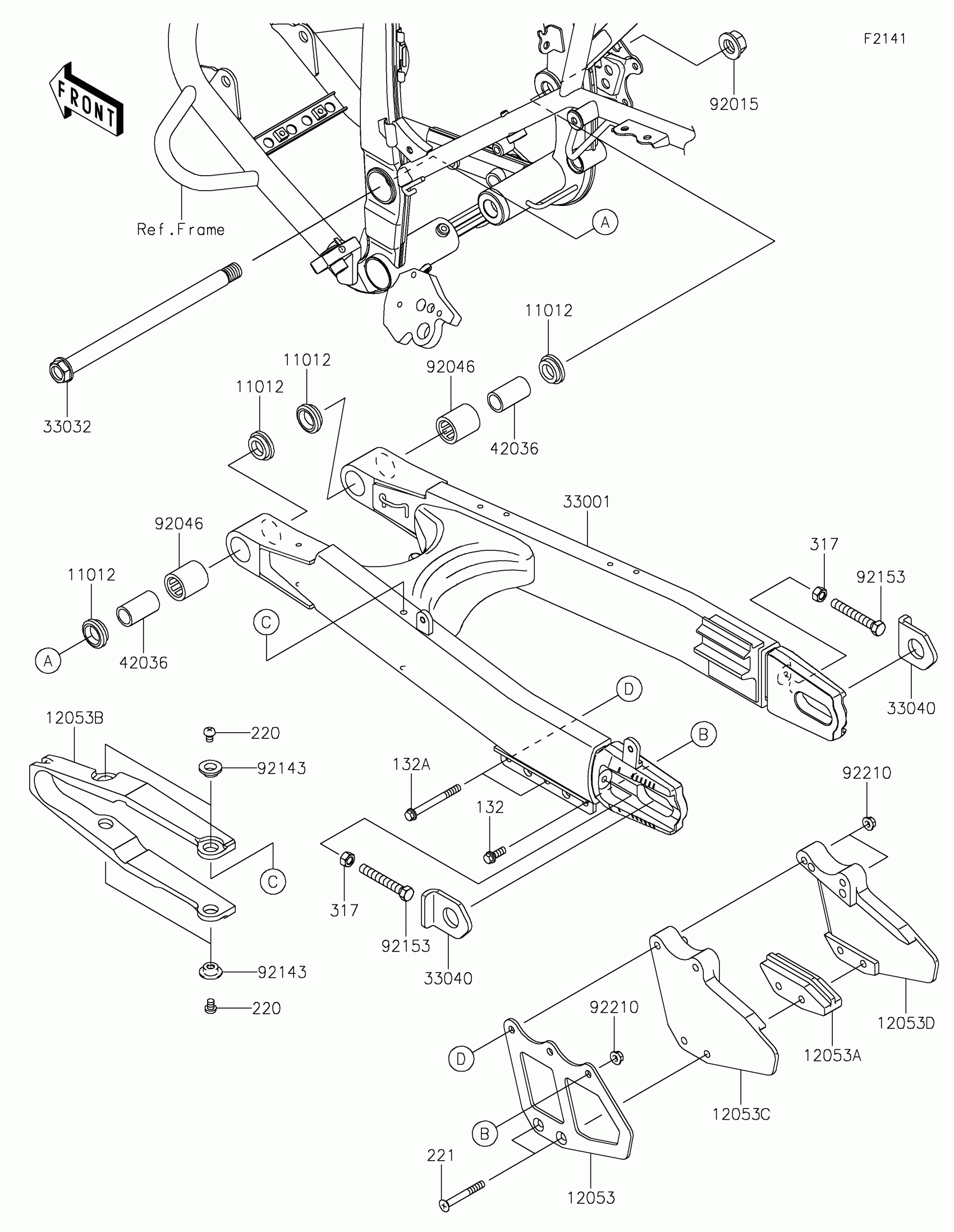

Find the part on the Swingarm diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

1

$30.83

In stock

12053A

1

$40.84

In stock

12053B

1

$49.57

In stock

12053C

1

$56.33

In stock

12053D

1

$56.33

In stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0176-18R

1

$856.22

In stock

33032

SHAFT-SWING ARM

33032-0033

1

$57.05

In stock

33040

ADJUSTER-CHAIN

33040-0023

1

$8.10

In stock

42036

SLEEVE,SWING ARM

42036-1064

1

$19.97

In stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE

92046-0038

1

$23.58

In stock

92143

COLLAR

92143-1156

1

$4.93

In stock

92153

BOLT,8X55

92153-1407

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

132

1

$1.21

In stock

132A

1

$3.69

In stock

220

SCREW-PAN-CROS,6X8

220AA0608

1

$0.63

In stock

221

1

$3.69

In stock

317

NUT-HEX-SMALL,8MM

317BA0800

1

$1.44

In stock
