2025 Kawasaki KLX300SM Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

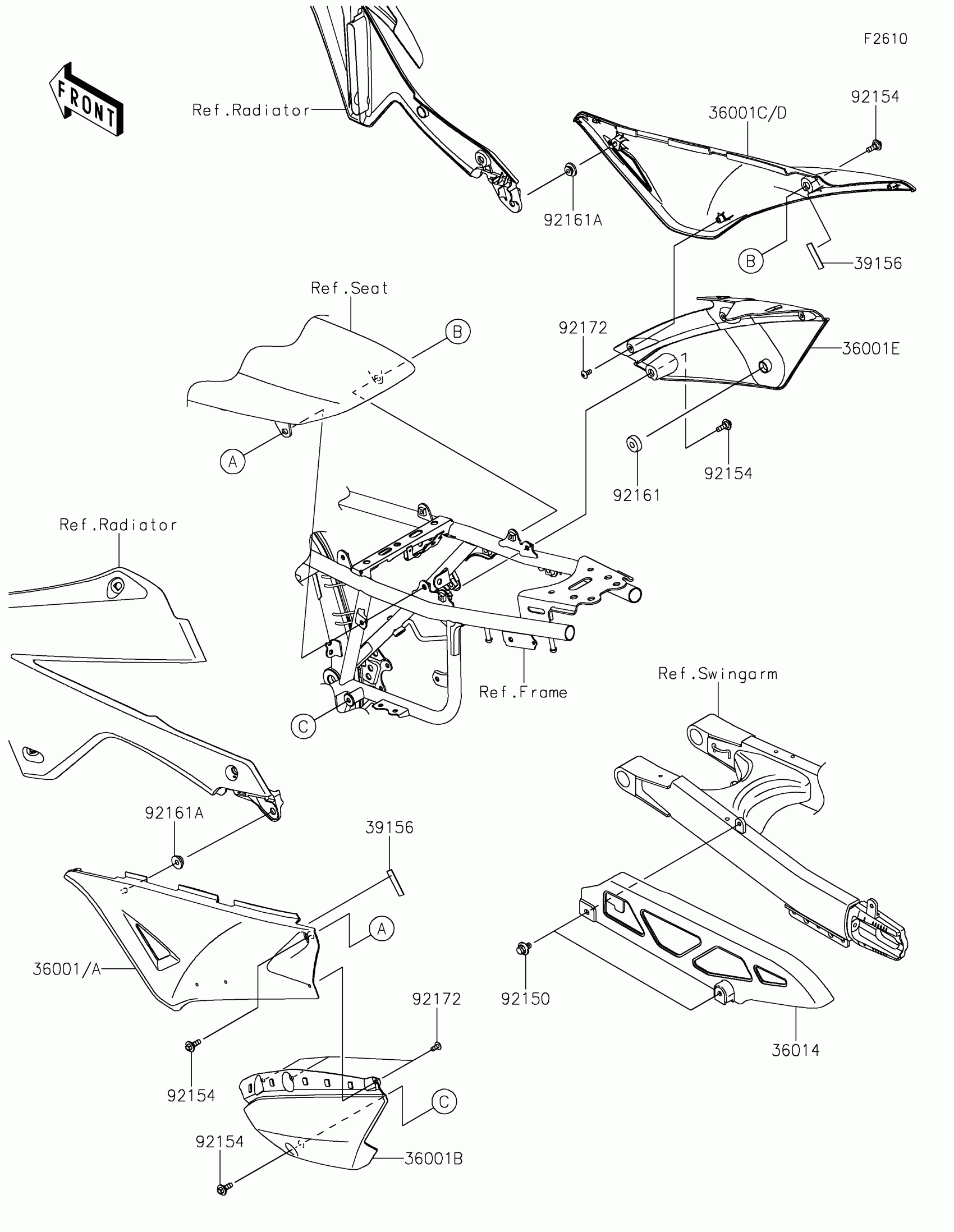

2025 Kawasaki KLX300SM Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,UPP,B.GRAY

36001-0743-67A

1
Out of stock

36001A

COVER-SIDE,LH,UPP,P.BLUE

36001-0743-67E

1
Out of stock

36001B

COVER-SIDE,LH,LWR

36001-0744

1
Out of stock

36001C

COVER-SIDE,RH,UPP,B.GRAY

36001-0745-67A

1
Out of stock

36001D

COVER-SIDE,RH,UPP,P.BLUE

36001-0745-67E

1
Out of stock

36001E

COVER-SIDE,RH,LWR

36001-0746

1
Out of stock

36014

CASE-CHAIN

36014-0050

1
Out of stock

39156

PAD,12X40

39156-2323

1
Out of stock

92150

BOLT,6X12

92150-1435

1
Out of stock

92154

BOLT,6X14

92154-7137

1
Out of stock

92161

DAMPER

92161-0605

1
Out of stock

92161A

DAMPER

92161-1810

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock
