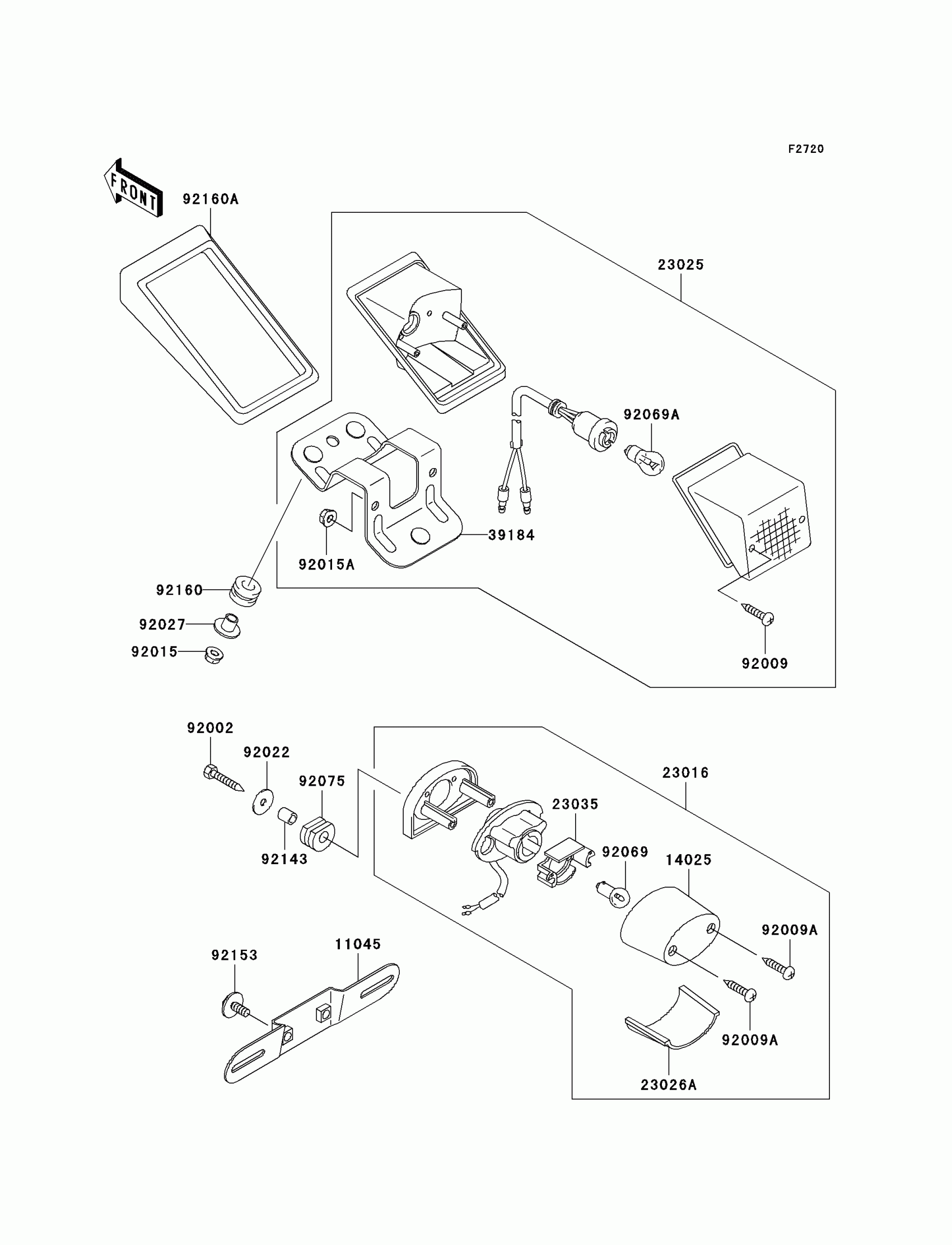

Find the part on the Taillight diagram for your 2006 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KLX250S Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

14025

COVER,LICENSE LAMP

14025-1725

1
Out of stock

23016

LAMP-ASSY,LICENSE PLATE

23016-1116

1
Out of stock

23025

LAMP-TAIL

23025-1235

1
Out of stock

23026A

LENS,LICENSE LAMP

23026-1064

1
Out of stock

23035

REFLECTOR-LAMP,LICENSE

23035-1066

1
Out of stock

39184

BRACKET-ASSY,TAIL LAMP

39184-1077

1
Out of stock

92002

BOLT,TAPPING,5X25

92002-1831

1
Out of stock

92009

SCREW,TAPPING,4X20

92009-1297

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,6MM

92015-1899

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1581

1
Out of stock

92027

COLLAR,L=14.1

92027-1920

1
Out of stock

92069

BULB,12V 5W

92069-1055

1
Out of stock

92069A

BULB,12V 27/8W

92069-1093

1
Out of stock

92075

DAMPER

92075-1870

1
Out of stock

92143

COLLAR,5.8X9X10.5

92143-1047

1
Out of stock

92153

BOLT,6X16

92153-0684

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92160A

DAMPER,TAIL LAMP

92160-1406

1
Out of stock

11009

GASKET,TAIL LAMP

11009-1371

1
Out of stock

23026

LENS,TAIL LAMP

23026-1053

1
Out of stock
