2007 Kawasaki KLX250S Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

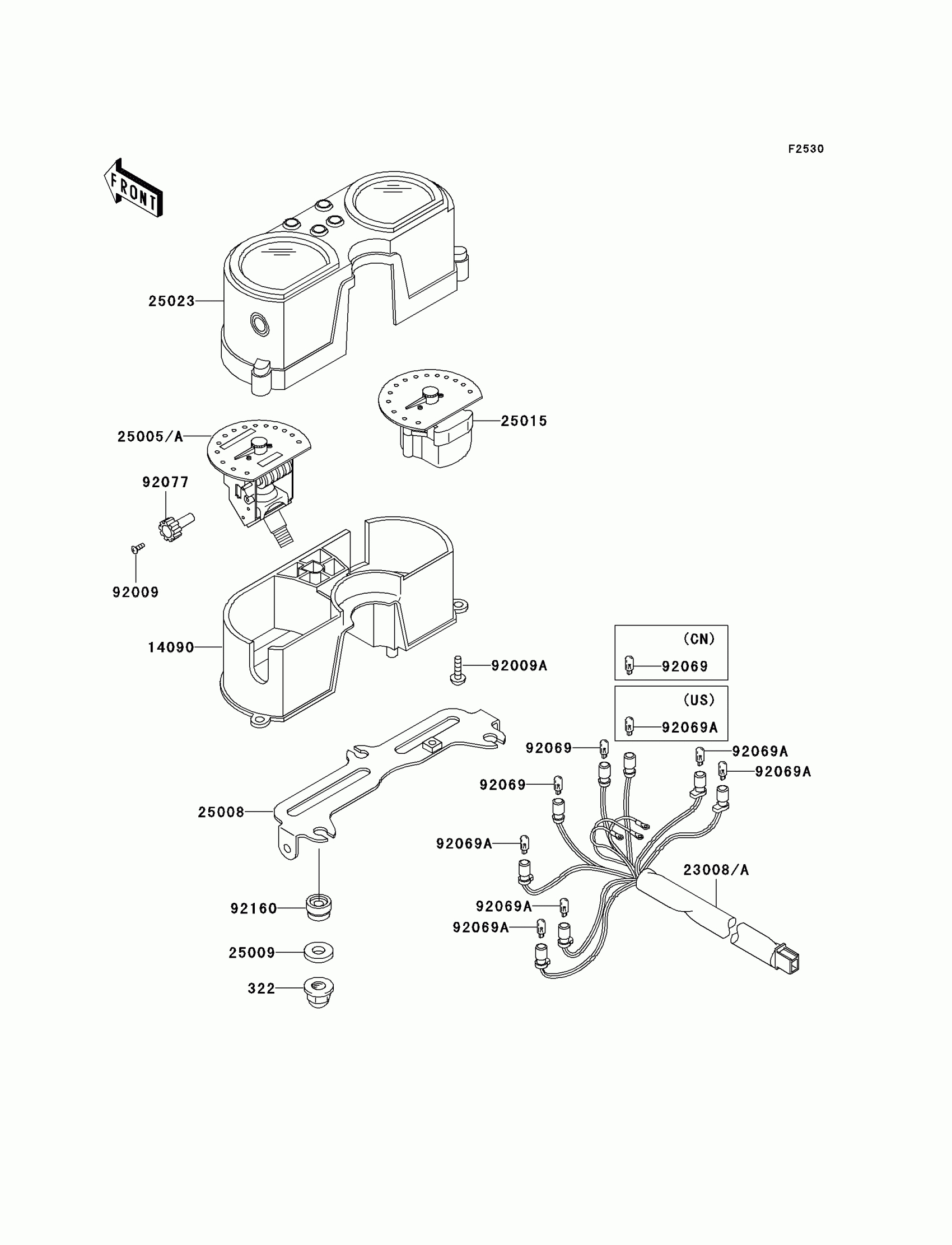

2007 Kawasaki KLX250S Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

322

NUT-CAP

322C0500

1
Out of stock

14090

COVER,METER HOUSING

14090-1303

1

$132.68

In stock

25008

BRACKET-METER

25008-1194

1

$68.40

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

25015

1

$369.16

In stock

25023

1

$114.04

In stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92077

KNOB,METER

92077-1059

1

$7.36

In stock

92160

DAMPER

92160-1460

1

$4.32

In stock

23008

SOCKET-ASSY,METER

23008-0043

1

$133.21

In stock

23008A

SOCKET-ASSY,METER

23008-1506

1

$131.44

In stock

25005

SPEEDOMETER,KPH

25005-1536

1

$309.12

In stock

25005A

SPEEDOMETER,MPH

25005-1541

1

$317.36

In stock

92069

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92069

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92069A

BULB,12V 1.7W,T6.5

92069-1070

1

$5.16

In stock

92069A

BULB,12V 1.7W,T6.5

92069-1070

1

$5.16

In stock
