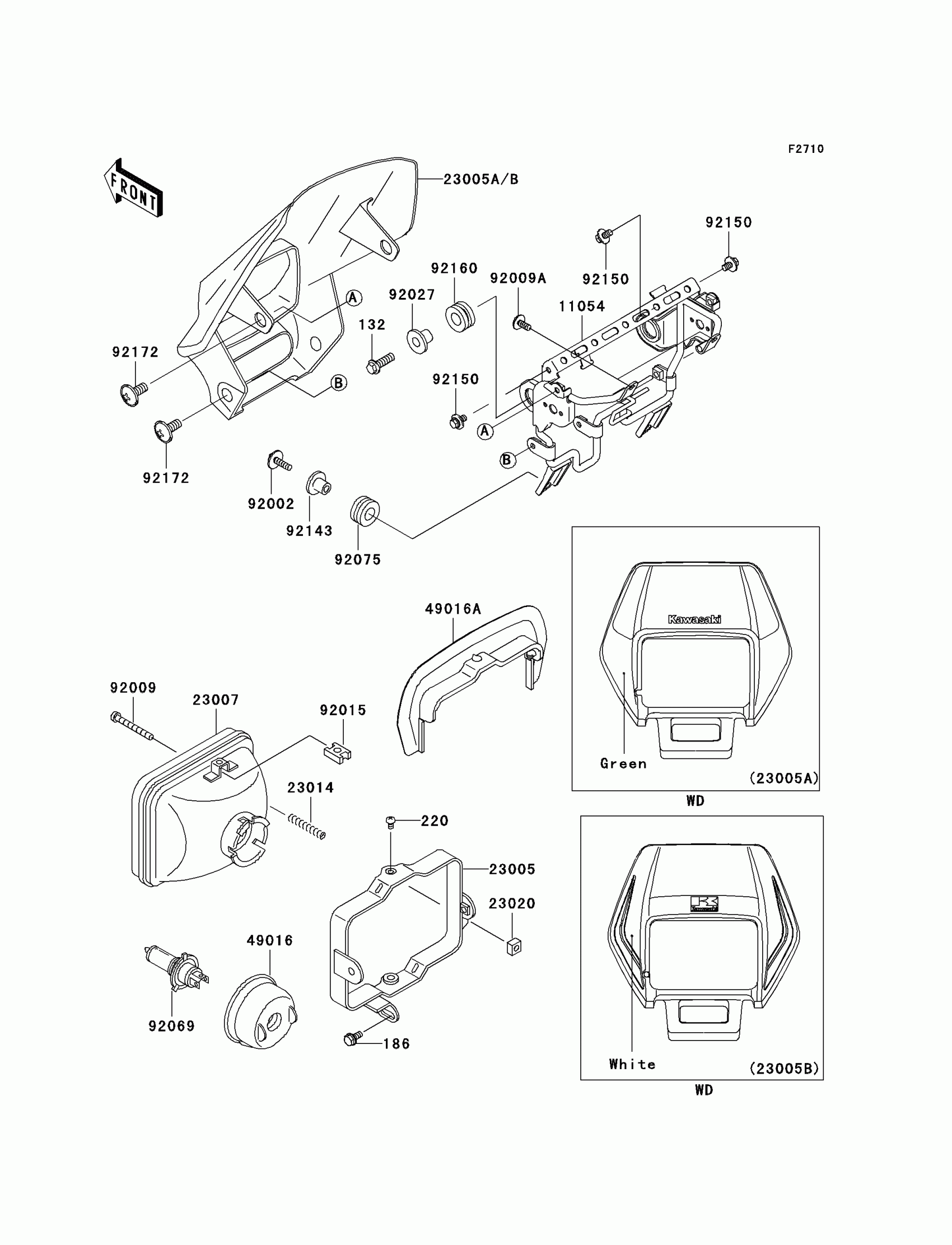

Kawasaki KLX250S Headlight(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X25

132G0825

Unavailable

186

BOLT

186B0614

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

11054

BRACKET,HEAD LAMP

11054-0054

$135.59

23005

BODY-COMP-HEAD LAMP

23005-1052

$47.15

23005B

BODY-COMP-HEAD LAMP,S.WHITE

23005-5060-266

$165.46

23007

LENS-COMP,HEAD LAMP

23007-1372

$165.83

23014

SPRING,FOCUS ADJUSTING

23014-005

$3.19

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

49016

COVER-SEAL,SOCKET

49016-1037

$11.19

49016A

COVER-SEAL,HEAD LAMP

49016-1160

$29.44

92002

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,4X48

92009-1065

$3.74

92009A

SCREW,6X10,WHITE

92009-1286

$3.29

92015

NUT,5MM

92015-1354

$3.74

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1353

$6.54

92150

BOLT,6X12

92150-1435

$3.29

92160

DAMPER

92160-1007

$4.18

92172

SCREW,6X14

92172-0004

$1.98
