2007 Kawasaki KLX250S Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

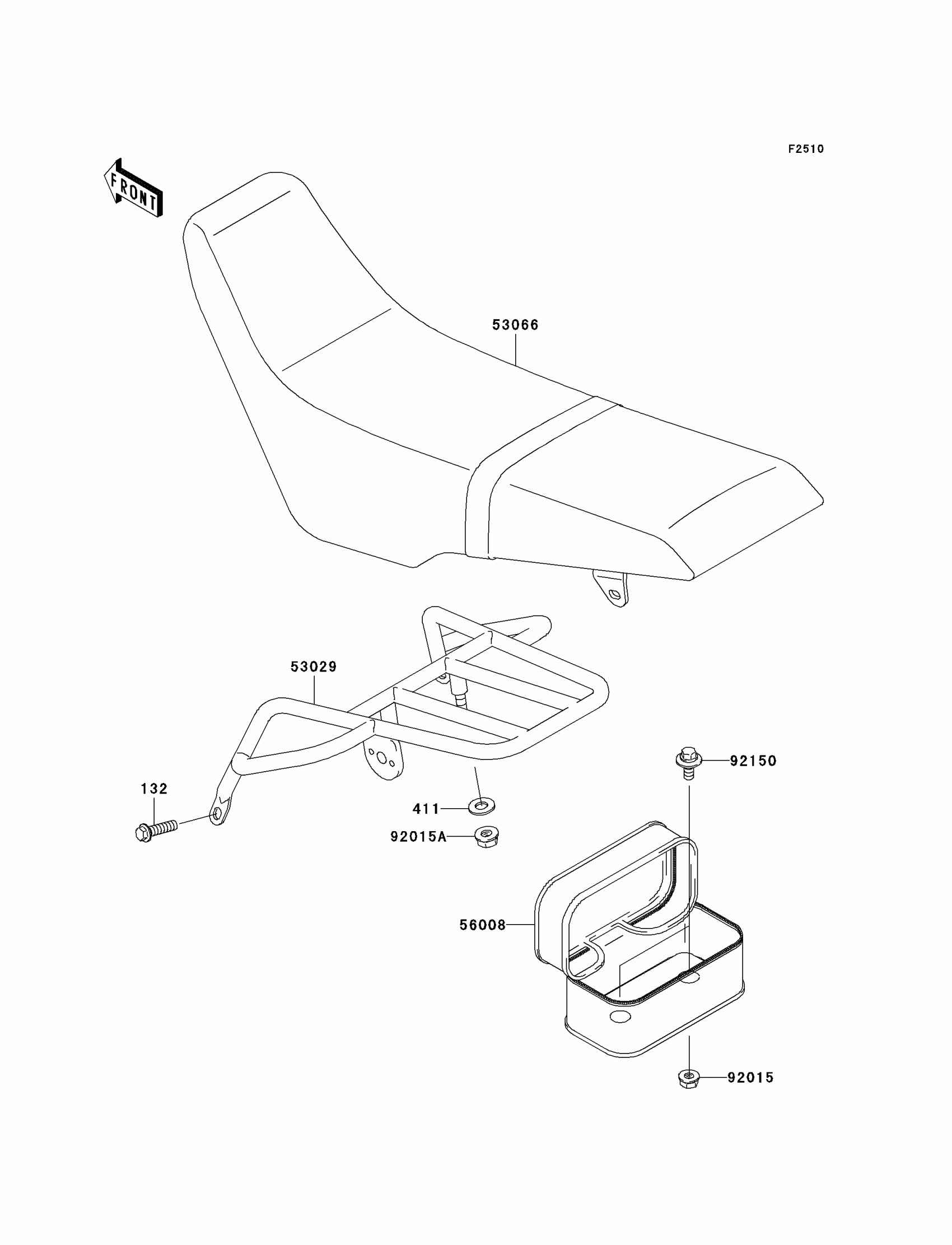

2007 Kawasaki KLX250S Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X30

132G0830

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

53029

CARRIER

53029-1146

1
Out of stock

53066

1

$583.89

In stock

56008

BAG,TOOL,BLACK

56008-1074-MA

1

$138.11

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,8MM

92015-1143

1
Out of stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock
