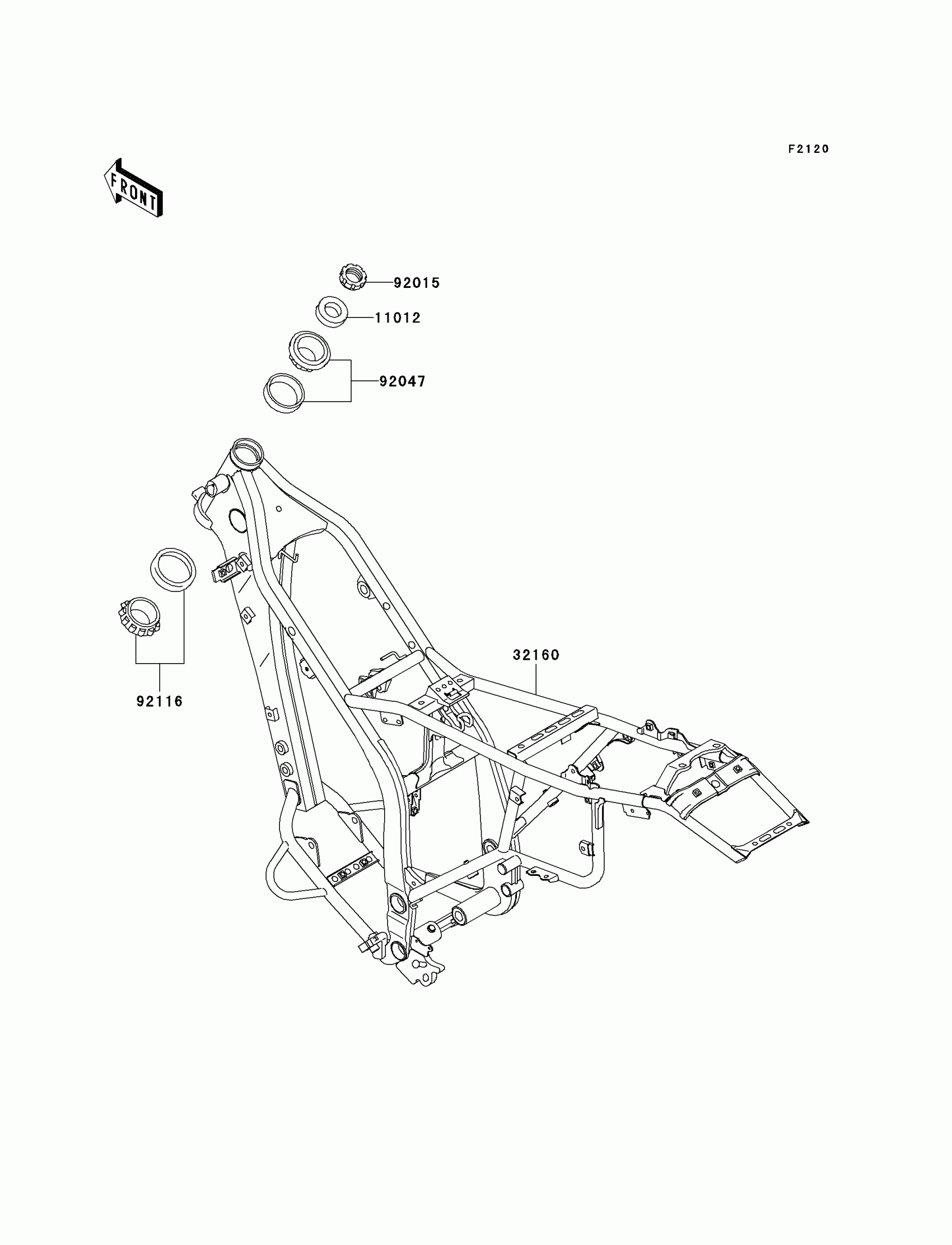

Kawasaki KLX250S Frame Diagram

#

Description

Price

11012

CAP,STEERING STEM

11012-1762

$5.37

32160

FRAME-COMP,P.SILVER

32160-0149-458

$1,894.75

92015

NUT,25MM,T=12

92015-1546

$19.66

92047

RACE,ROLLER,32005JR RS

92047-017

$38.84

92116

BEARING-ROLLER,HI-CAP32006JRRS

92116-1069

$57.86
