2007 Kawasaki KLX250S Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

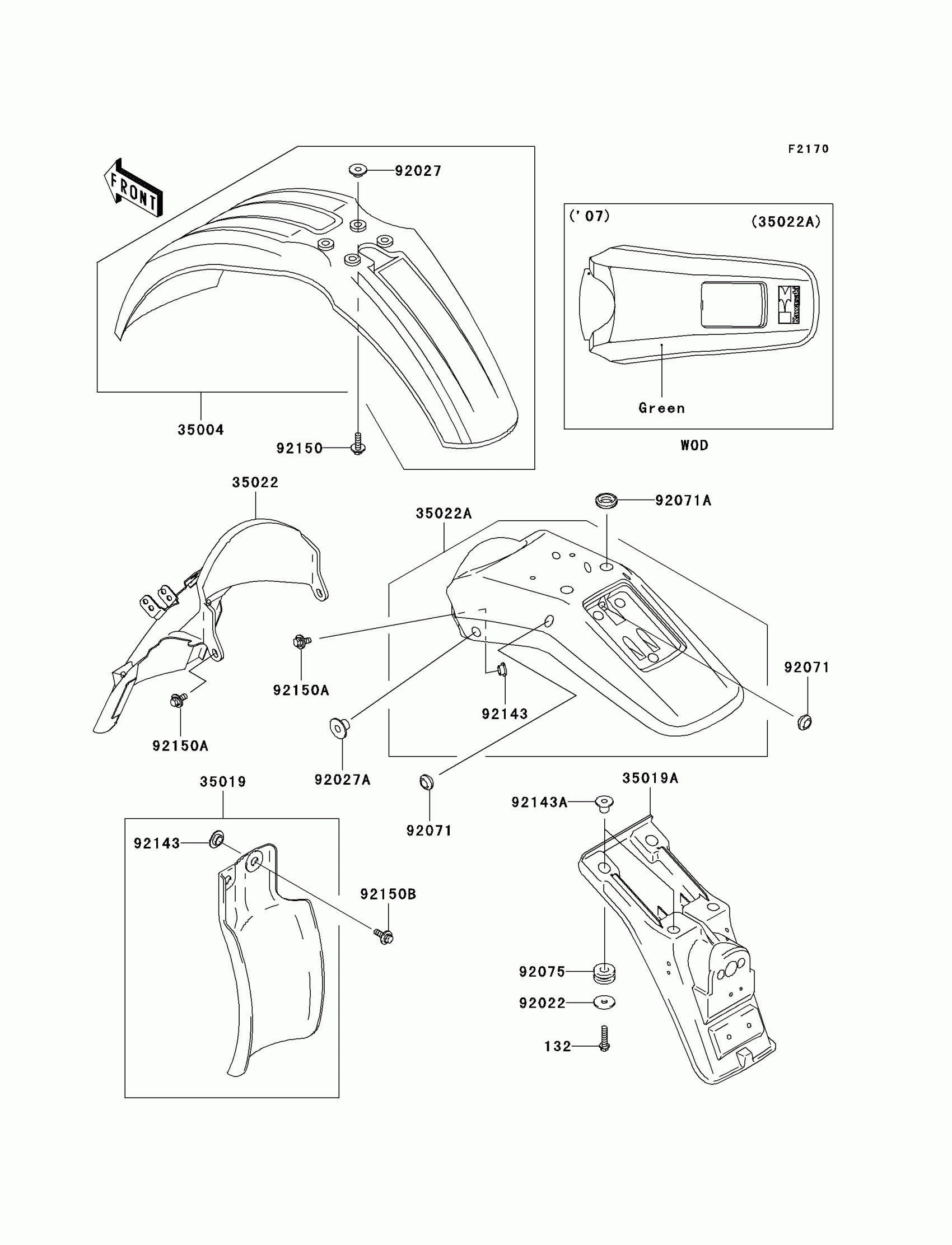

2007 Kawasaki KLX250S Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

35004

FENDER-FRONT,L.GREEN

35004-1319-290

1
Out of stock

35019

FLAP,RR FENDER,FR

35019-0004

1
Out of stock

35019A

FLAP,RR FENDER

35019-0040

1
Out of stock

35022

FENDER-COMP-REAR,FR,L.GREEN

35022-0001-290

1
Out of stock

35022A

FENDER-COMP-REAR,RR,L.GREEN

35022-0003-290

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92027

COLLAR

92027-1936

1
Out of stock

92027A

COLLAR

92027-4015

1
Out of stock

92071

GROMMET

92071-024

1
Out of stock

92071A

GROMMET

92071-1210

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92143A

COLLAR

92143-1353

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92150A

BOLT,6X14

92150-1340

1
Out of stock

92150B

BOLT,FLANGED,6X16

92150-1506

1
Out of stock
