2007 Kawasaki KLX250S Frame Fittings Diagram

← All diagrams

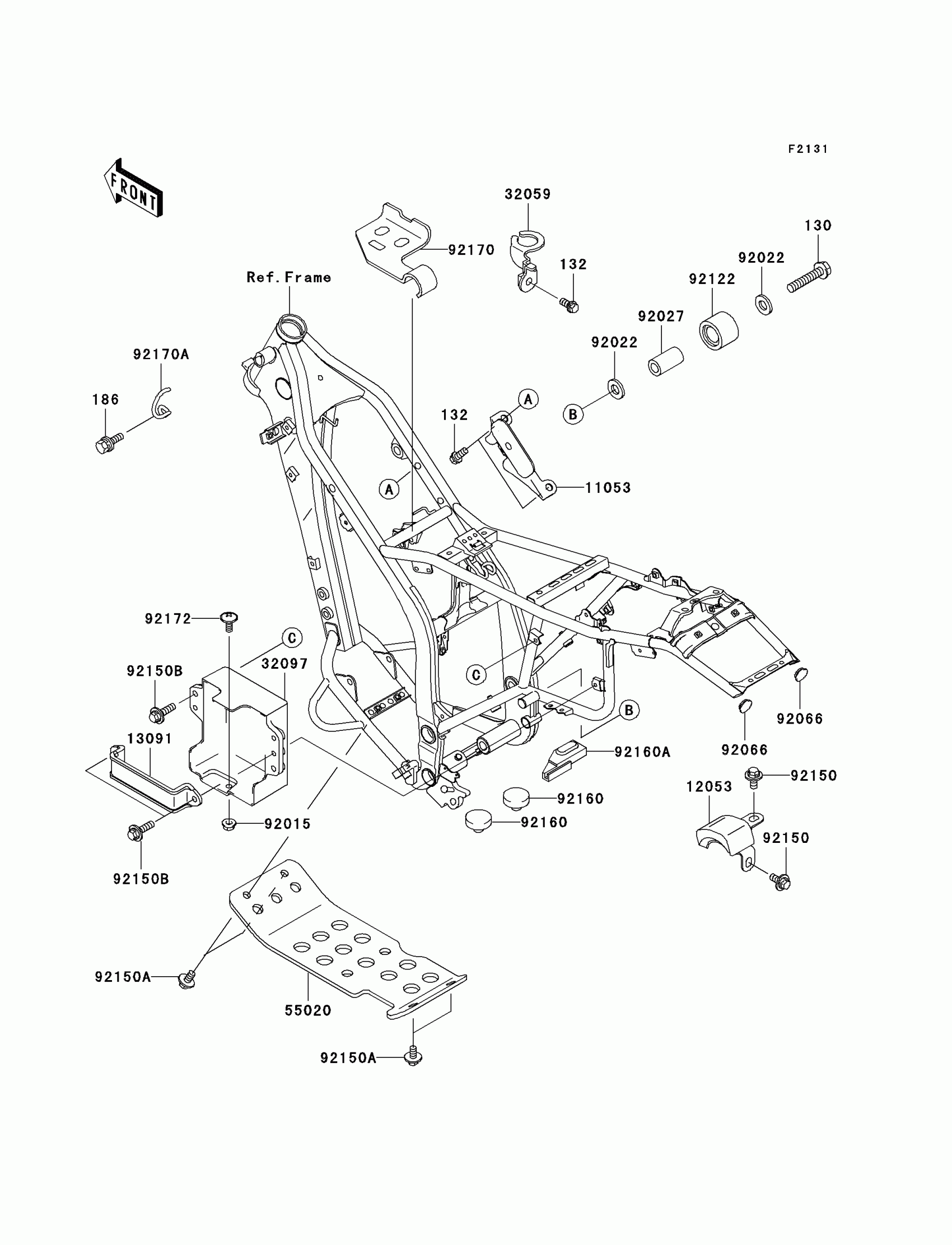

Find the part on the Frame Fittings diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki KLX250S Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132L0612

1
Out of stock

186

BOLT-UPSET-WP,6X20

186B0620

1
Out of stock

11053

BRACKET

11053-1242

1
Out of stock

12053

GUIDE-CHAIN

12053-0001

1
Out of stock

13091

HOLDER

13091-1875

1
Out of stock

32059

BRACKET-SWITCH,BRAKE

32059-1117

1
Out of stock

32097

CASE-BATTERY

32097-0001

1
Out of stock

55020

GUARD,ENGINE

55020-1456

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1
Out of stock

92066

PLUG,FRAME END,12X13

92066-1034

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1
Out of stock

92150

BOLT,6X14

92150-1340

1
Out of stock

92150A

BOLT,6X12

92150-1435

1
Out of stock

92150B

BOLT,FLANGED,6X22

92150-1481

1
Out of stock

92160

DAMPER

92160-1396

1
Out of stock

92160A

DAMPER

92160-1565

1
Out of stock

92170

CLAMP,HARNESS

92170-1423

1
Out of stock

92170A

CLAMP,HARNESS

92170-1944

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock
