2007 Kawasaki KLX250S Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

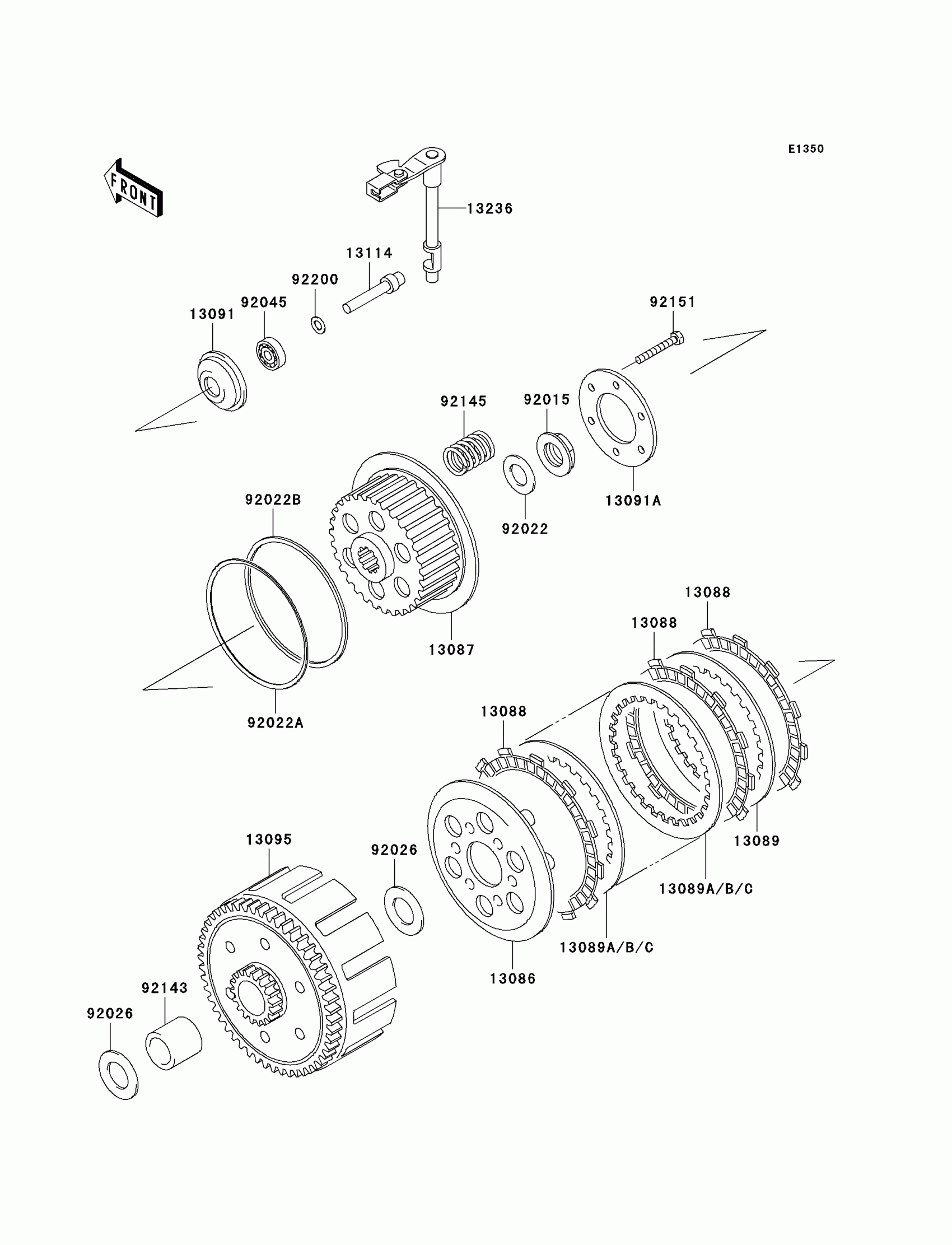

2007 Kawasaki KLX250S Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-1072

1

$47.31

In stock

13087

HUB-CLUTCH

13087-1150

1

$135.81

In stock

13088

PLATE-FRICTION

13088-1125

1

$16.66

In stock

13089

PLATE-CLUTCH

13089-1085

1

$10.86

In stock

13089A

PLATE-CLUTCH,T=1.6

13089-1094

1

$10.14

In stock

13089B

PLATE-CLUTCH,T=2.0

13089-1116

—

$11.97

In stock

13089C

PLATE-CLUTCH,T=1.2

13089-1117

—

$11.97

In stock

13091

1

$13.39

In stock

13091A

1

$20.69

In stock

13095

HOUSING-COMP-CLUTCH

13095-1352

1

$441.66

In stock

13114

PUSHER-CLUTCH

13114-1068

1

$24.34

In stock

13236

LEVER-COMP

13236-1259

1
Out of stock

92015

NUT,16MM

92015-1581

1

$15.43

In stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92022A

WASHER,JUDDER SPRING

92022-1974

1
Out of stock

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

1
Out of stock

92026

SPACER,20.3X36X2.0

92026-1496

1

$12.54

In stock

92045

BEARING-BALL,627

92045-1236

1

$18.51

In stock

92143

COLLAR

92143-1959

1

$30.45

In stock

92145

SPRING

92145-1095

1

$11.76

In stock

92151

BOLT,5X35

92151-1218

1

$2.27

In stock

92200

WASHER,7X12.5X0.8

92200-1197

1
Out of stock
