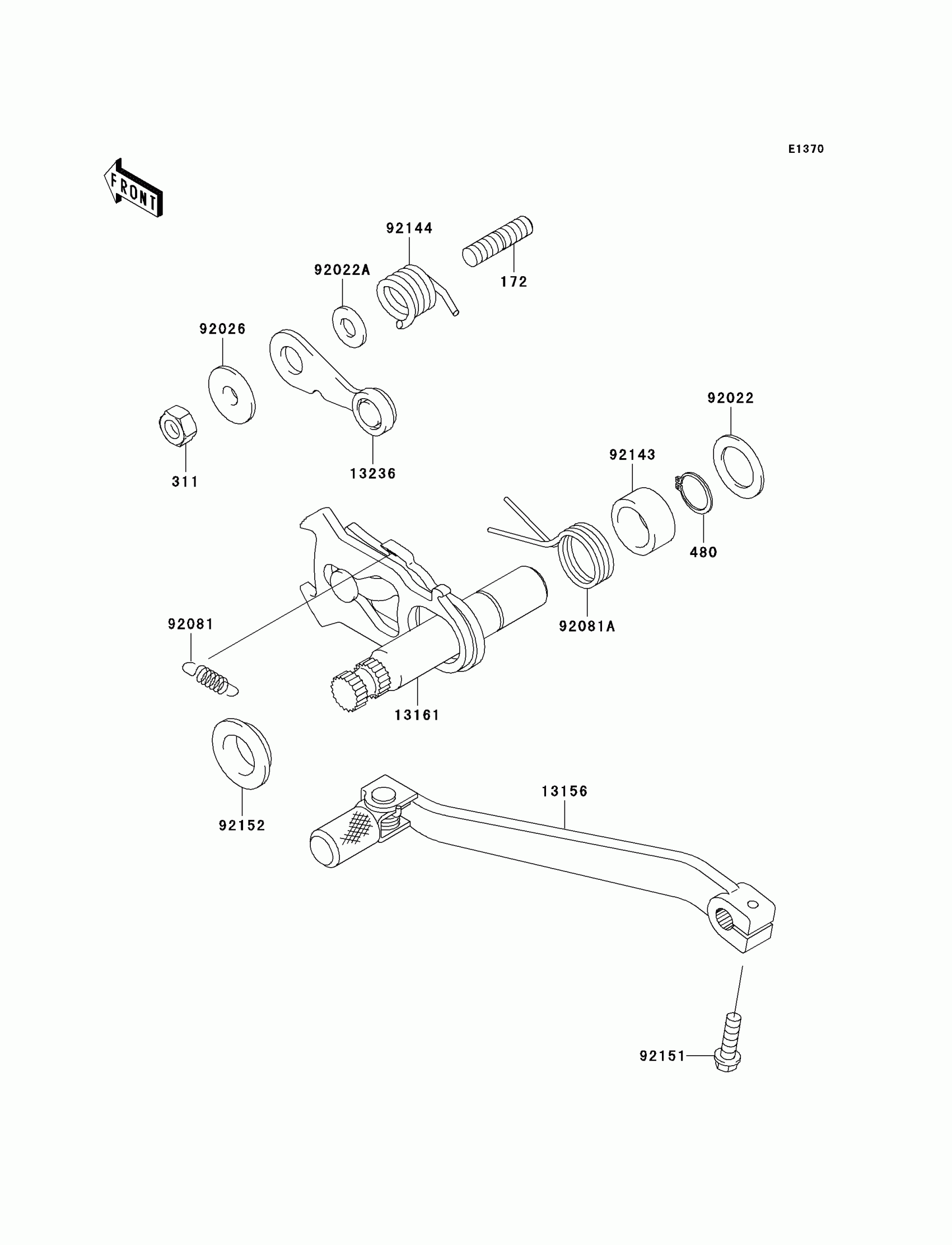

Kawasaki KLX250S Gear Change Mechanism Diagram

Description

Price

172

BOLT-STUD,6X12

172G0612

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13156

LEVER-CHANGE,PEDAL

13156-1480

$52.27

13161

LEVER-COMP-CHANGE SHAFT

13161-1214

$66.06

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$18.36

92022

WASHER,13.3X20X1

92022-1496

$2.99

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING,TENSION

92081-1129

$7.18

92143

COLLAR

92143-1148

$3.57

92144

SPRING

92144-1695

$7.47

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92152

COLLAR

92152-1075

$3.19
