2007 Kawasaki KLX250S Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

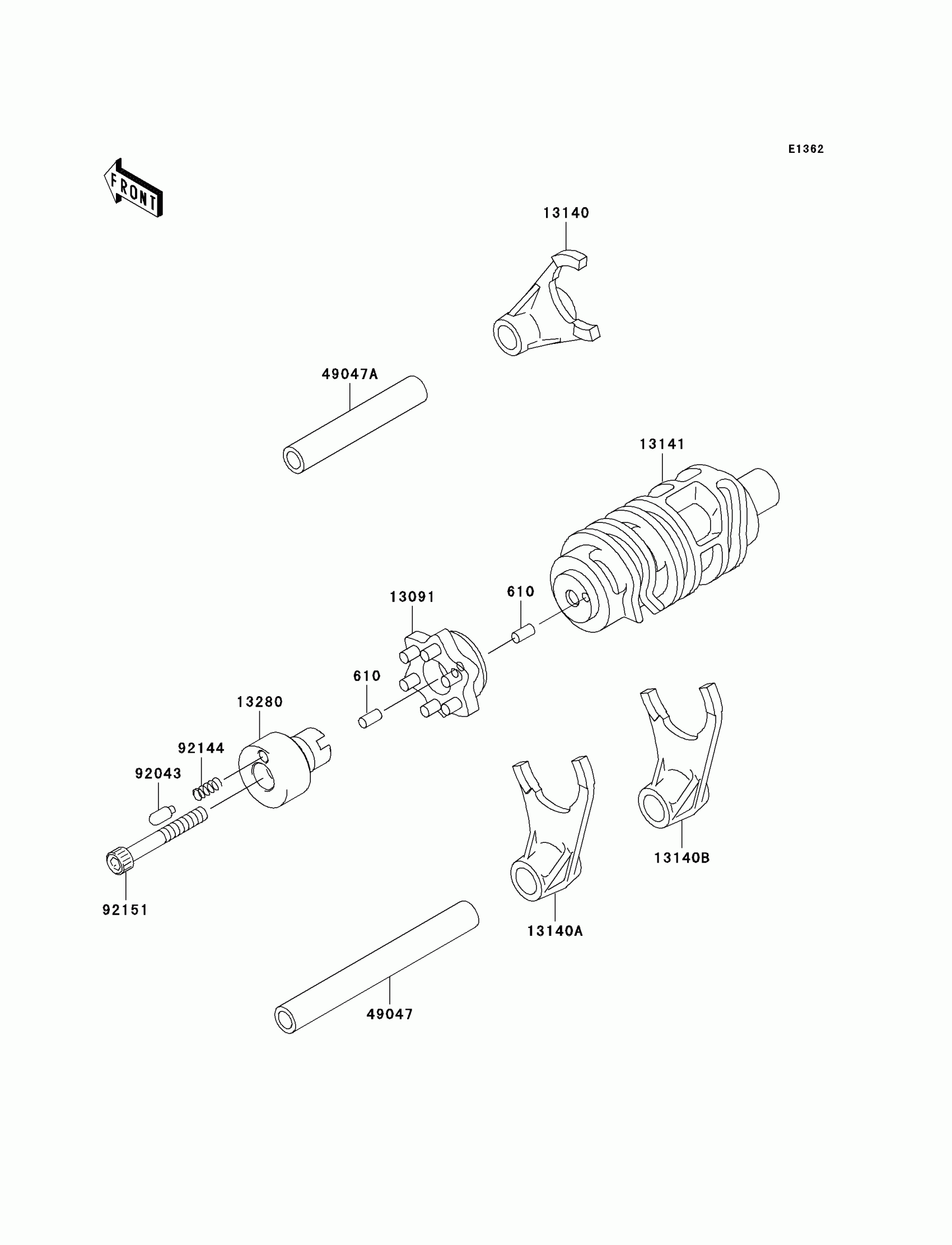

2007 Kawasaki KLX250S Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1
Out of stock

13091

HOLDER,CHANGE DRUM

13091-1856

1
Out of stock

13140

FORK-SHIFT,5TH&TOP

13140-1216

1
Out of stock

13140A

FORK-SHIFT,2ND&3RD

13140-1217

1
Out of stock

13140B

FORK-SHIFT,LOW&4TH

13140-1218

1
Out of stock

13141

DRUM-CHANGE

13141-1198

1
Out of stock

13280

HOLDER

13280-1214

1
Out of stock

49047

ROD-SHIFT,L=106.7

49047-1056

1
Out of stock

49047A

ROD-SHIFT,L=71.7

49047-1057

1
Out of stock

92043

PIN

92043-1523

1
Out of stock

92144

SPRING

92144-1245

1
Out of stock

92151

BOLT,SOCKET,6X45

92151-1471

1
Out of stock
