1980 Kawasaki KLX250 Ignition/generator Diagram

← All diagrams

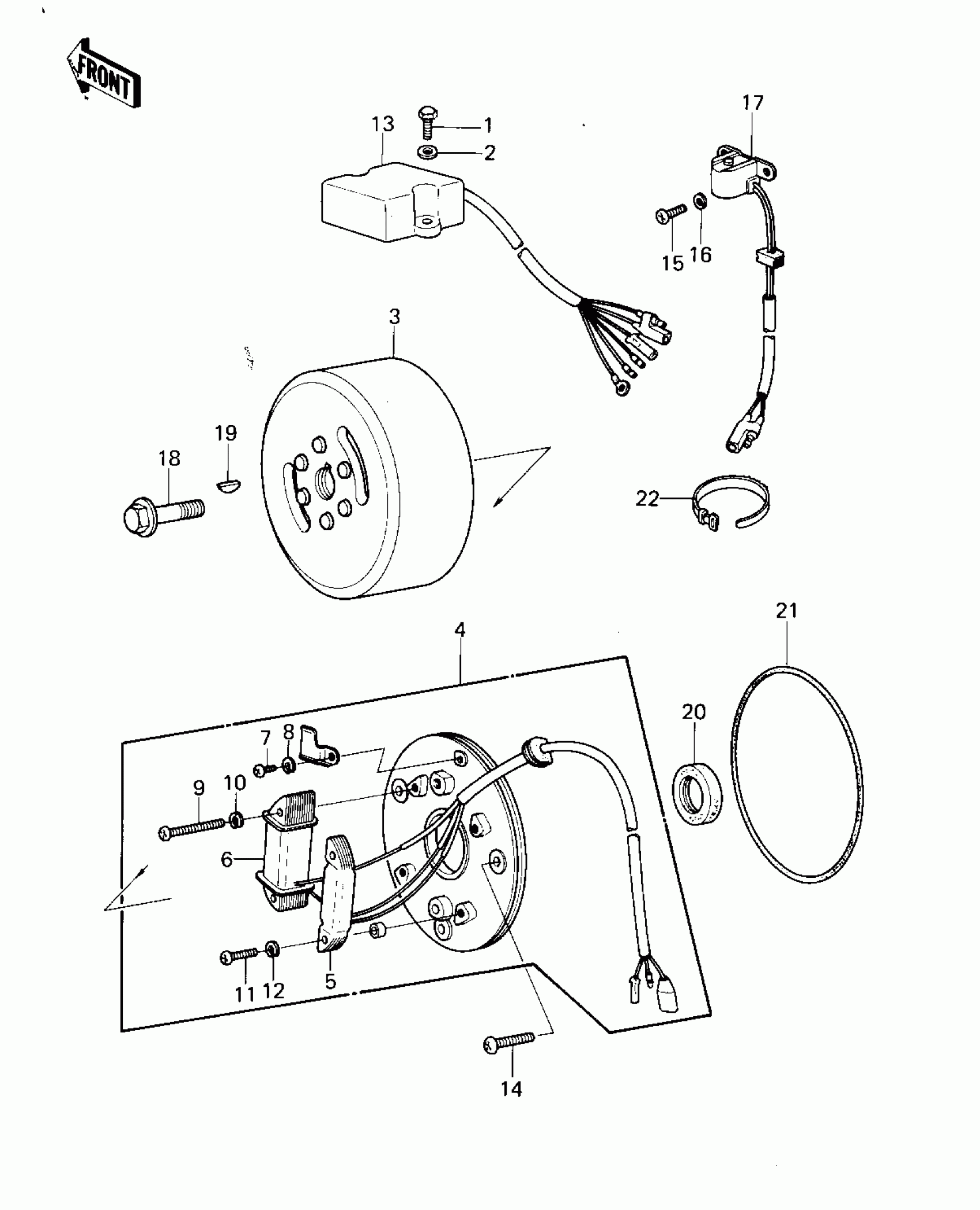

Find the part on the Ignition/generator diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Ignition/generator Diagram

#

Description
Price
Status
Order Qty

1

BOLT-UPSET,6X16

112G0616

Out of stock

2

WASHER PLAIN 6MM

411B0600

Out of stock

3

FLYWHEEL,MAGNETO

21050-1011

Out of stock

4

STATOR ASSY

21003-1021

Out of stock

5

COIL EXCITING

21049-1014

Out of stock

6

COIL,LIGHTING

21047-1008

Out of stock

7

SCREW PAN HEAD 4X6

220B0406

Out of stock

8

WASHER SPRING 4MM

461F0400

Out of stock

9

SCREW-PAN-CROS,5X25

220B0525

Out of stock

10

WASHER SPRING 5MM

461F0500

Out of stock

11

SCREW-PAN-CROS

220B0520

Out of stock

12

WASHER SPRING 5MM

461F0500

Out of stock

13

IGNITER

21119-1012

Out of stock

14

SCREW PAN HEAD 6X25

220B0625

Out of stock

15

SCREW-PAN-CROS

220B0514

Out of stock

16

WASHER SPRING 5MM

461F0500

Out of stock

17

COIL,PULSING

59026-1005

Out of stock

18

BOLT,10X40

92001-1201

Out of stock

19

KEY,WOODRUFF

92038-001

Out of stock

20

OIL SEAL,S-27408-LHS

92049-1004

Out of stock

21

"O" RING,MAGNETO BASE

92055-1006

Out of stock

22

BAND,L=186

92072-056

Out of stock
