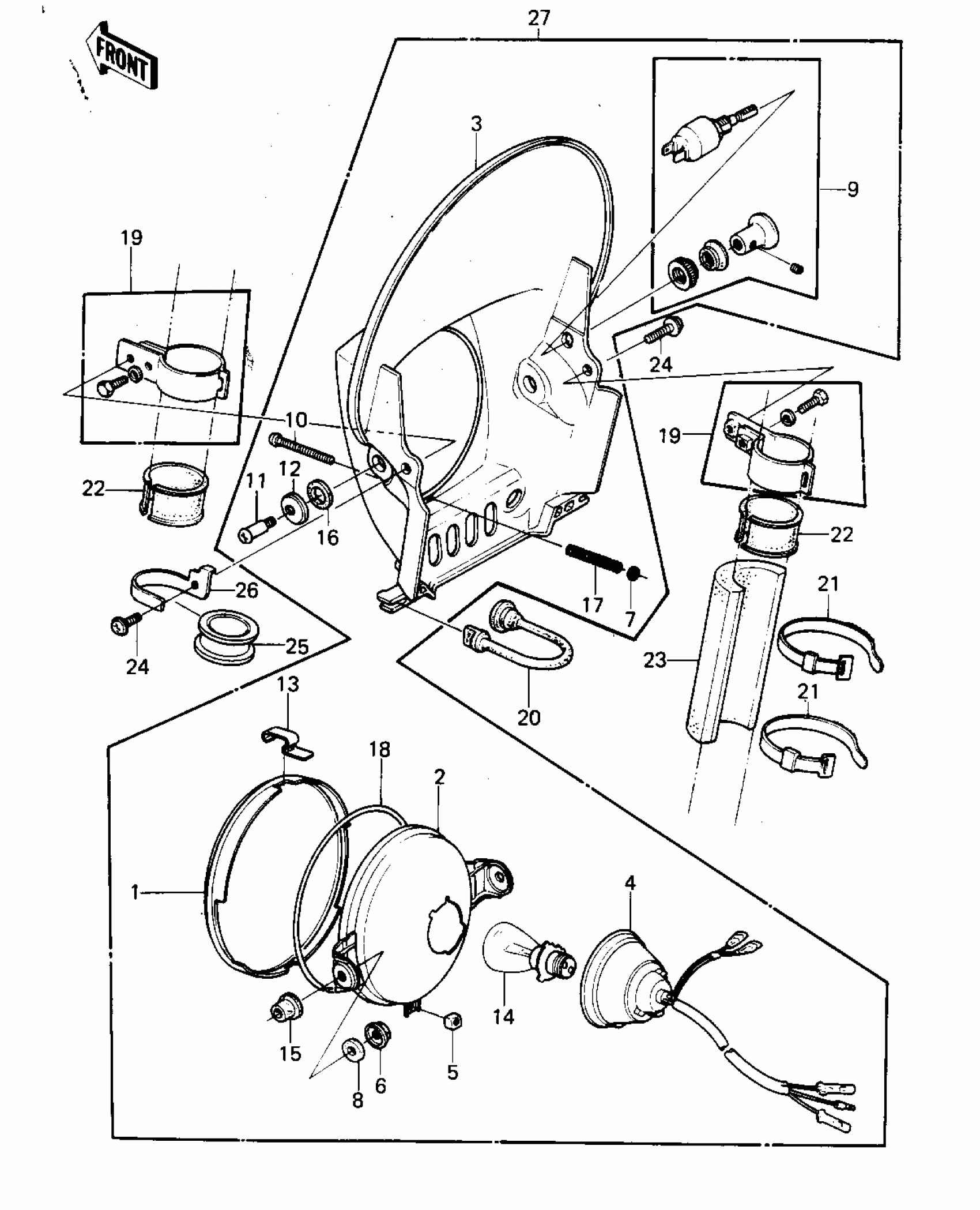

Find the part on the Headlight diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Headlight Diagram

#

Description
Price
Status
Order Qty

1

COVER,HEAD LAMP

14025-4002

Out of stock

2

LAMP,HEAD

23004-4001

Out of stock

3

BODY-COMP-HEAD LAMP,

23005-5002-7F

Out of stock

4

SOCKET,HEAD LAMP

23008-4001

Out of stock

5

NUT,4MM,FOCUS ADJUST

23020-018

Out of stock

6

NUT,5MM

23020-023

Out of stock

7

WASHER,4.1X8X0.8

23021-004

Out of stock

8

WASHER,PLAIN,5MM

23021-012

Out of stock

9

SWITCH,HEAD LAMP

27004-4001

Out of stock

10

SCREW,ADJUSTING,4X43

92009-4002

Out of stock

11

SCREW,HEAD LAMP

92009-4003

Out of stock

12

WASHER,HEAD LAMP

92022-4005

Out of stock

13

CLAMP,HEAD LAMP

92037-4001

Out of stock

14

BULB,6V 35/25W

92069-4001

Out of stock

15

DAMPER,HEAD LAMP

92075-4009

Out of stock

16

DAMPER,HEAD LAMP

92075-4010

Out of stock

17

SPRING,FOCUS ADJUSTN

92081-4003

Out of stock

18

SEAL,HEAD LAMP

92093-4001

Out of stock

19

*** N.L.A.*** (Canada)

11034-1583

Out of stock

20

BAND,HEAD LAMP

92072-077

Out of stock

21

*** N.L.A.*** (Canada)

92072-4003

Out of stock

22

92075-1236 (Canada)

92075-1206

Out of stock

23

92075-1236 (Canada)

92075-1207

Out of stock

24

SCREW,6X14,WHITE

92009-1287

Out of stock

25

CABLE GUIDE,HEAD LAMP

13070-4001

Out of stock

26

CLAMP, CABLE GUIDE

92037-4002

Out of stock

27

HEAD LAMP ASSY

23001-4001

Out of stock
