1980 Kawasaki KLX250 Ignition Coil Diagram

← All diagrams

Find the part on the Ignition Coil diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

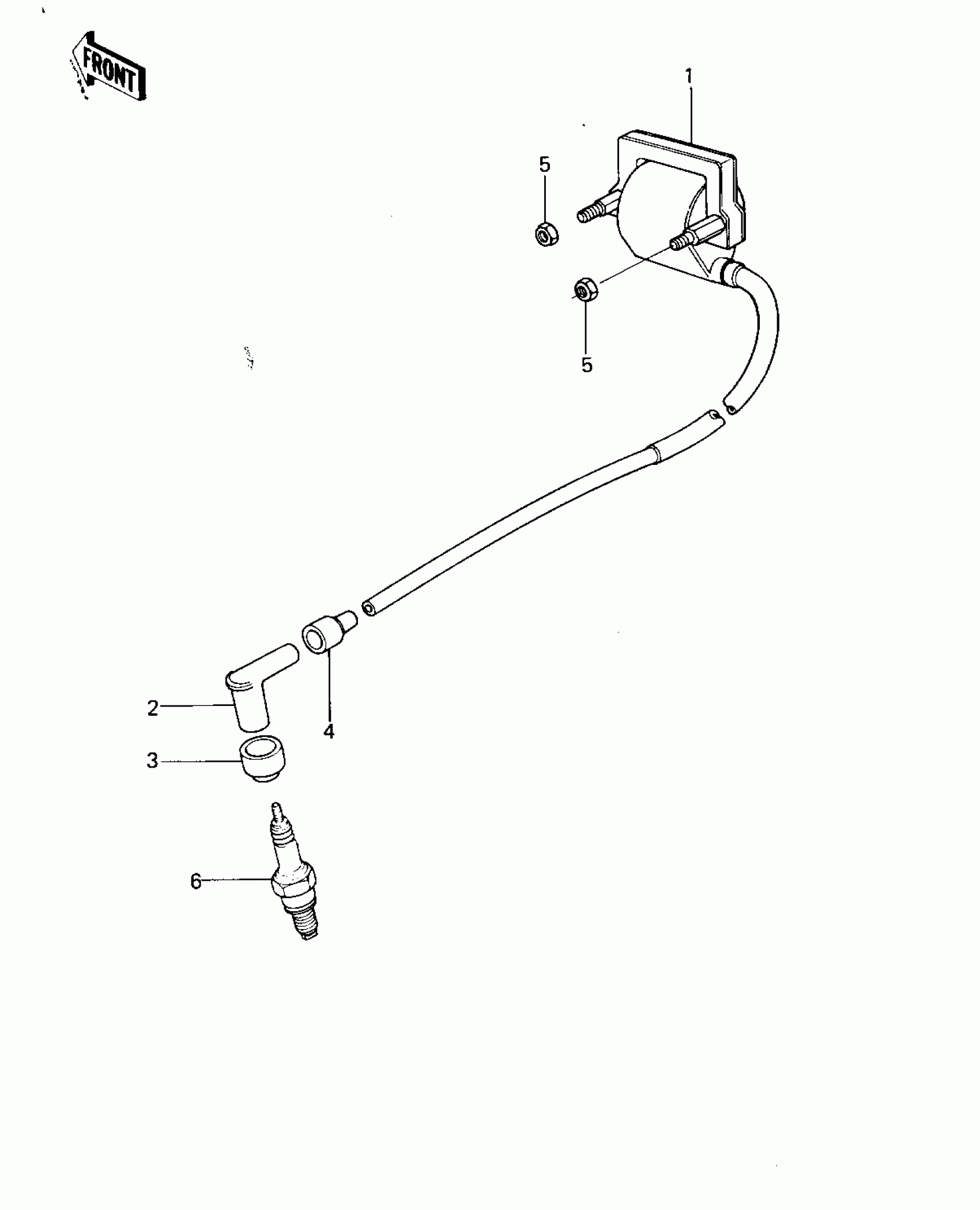

1980 Kawasaki KLX250 Ignition Coil Diagram

#

Description
Price
Status
Order Qty

1

COIL-IGNITION

21121-043

Out of stock

2

CAP-SPARK PLUG,RTFM20

21130-1007

Out of stock

3

GROMMET,PLUG CAP

21131-004

Out of stock

4

GROMMET,HIGH TENSION

21132-005

Out of stock

5

NUT-HEX,6MM

311G0600

Out of stock

6

SPARK PLUG B7ES

B7ES

Out of stock
