1980 Kawasaki KLX250 Cables/meter Diagram

← All diagrams

Find the part on the Cables/meter diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

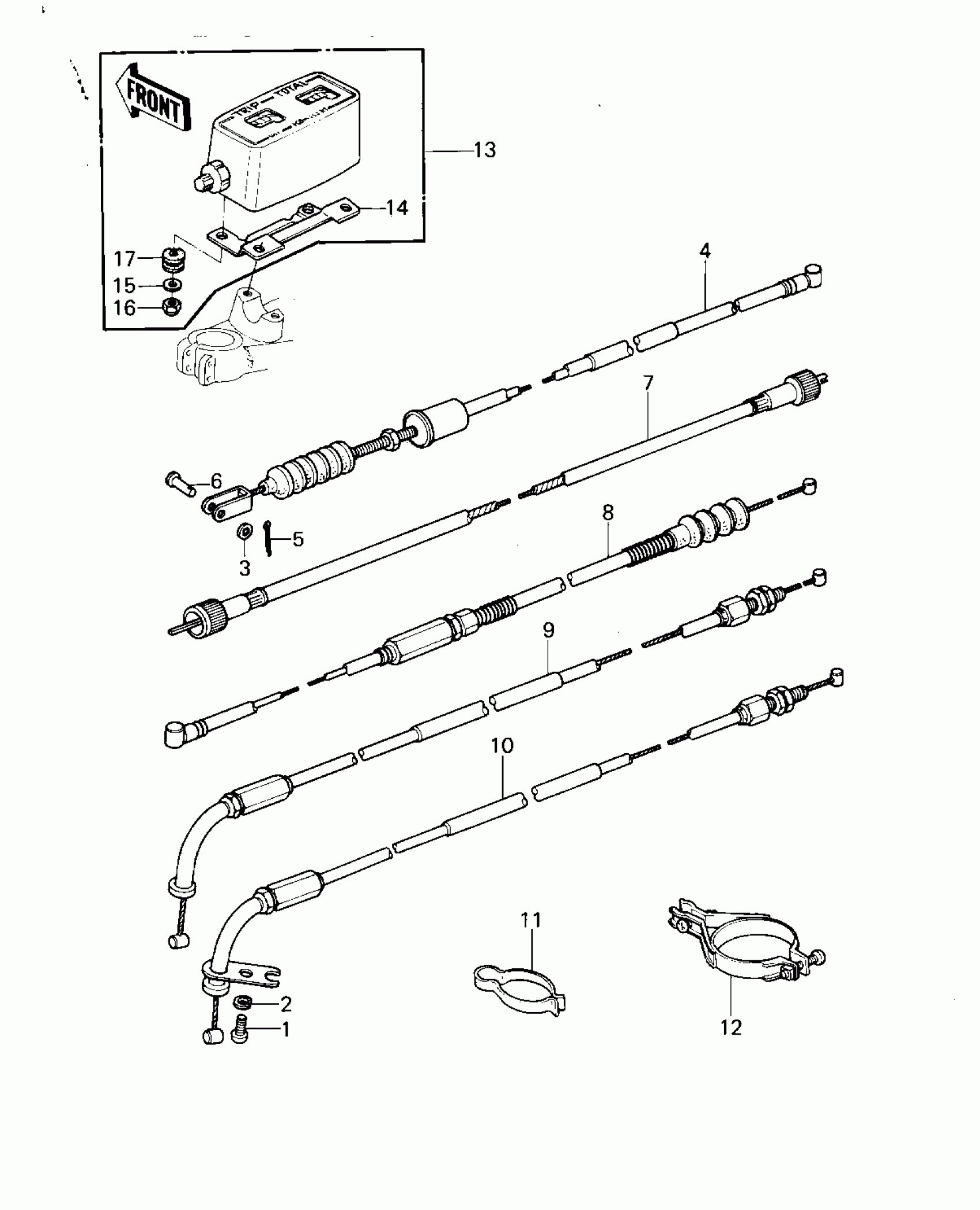

1980 Kawasaki KLX250 Cables/meter Diagram

#

Description
Price
Status
Order Qty

1

SCREW PAN HEAD 6X10

220B0610

Out of stock

2

WASHER SPRING 6MM

461F0600

Out of stock

3

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

4

CABLE,FRONT BRAKE

54005-1020

Out of stock

5

PIN COTTER 2.0X15

550D2015

Out of stock

6

PIN,6X17

92043-064

Out of stock

7

CABLE,SPEEDOMETER

54001-1020

Out of stock

8

CABLE,CLUTCH

54011-1032

Out of stock

9

CABLE,THROTTLE,OPEN

54012-1050

$72.15

In stock

10

$72.15

In stock

11

CLAMP

92037-093

Out of stock

12

CLAMP,CABLE

92037-1072

Out of stock

13

METER ASSY

25001-1099

Out of stock

13

METER ASSY,KPH (Canada)

25001-1103

Out of stock

14

BRACKET,METER

11034-1574

Out of stock

15

WASHER,5.2X16X1.2

25009-004

Out of stock

16

NUT-CAP,5MM

322N0500

Out of stock

17

DAMPER,METER

92075-1209

Out of stock
