1980 Kawasaki KLX250 Fuel Tank Diagram

← All diagrams

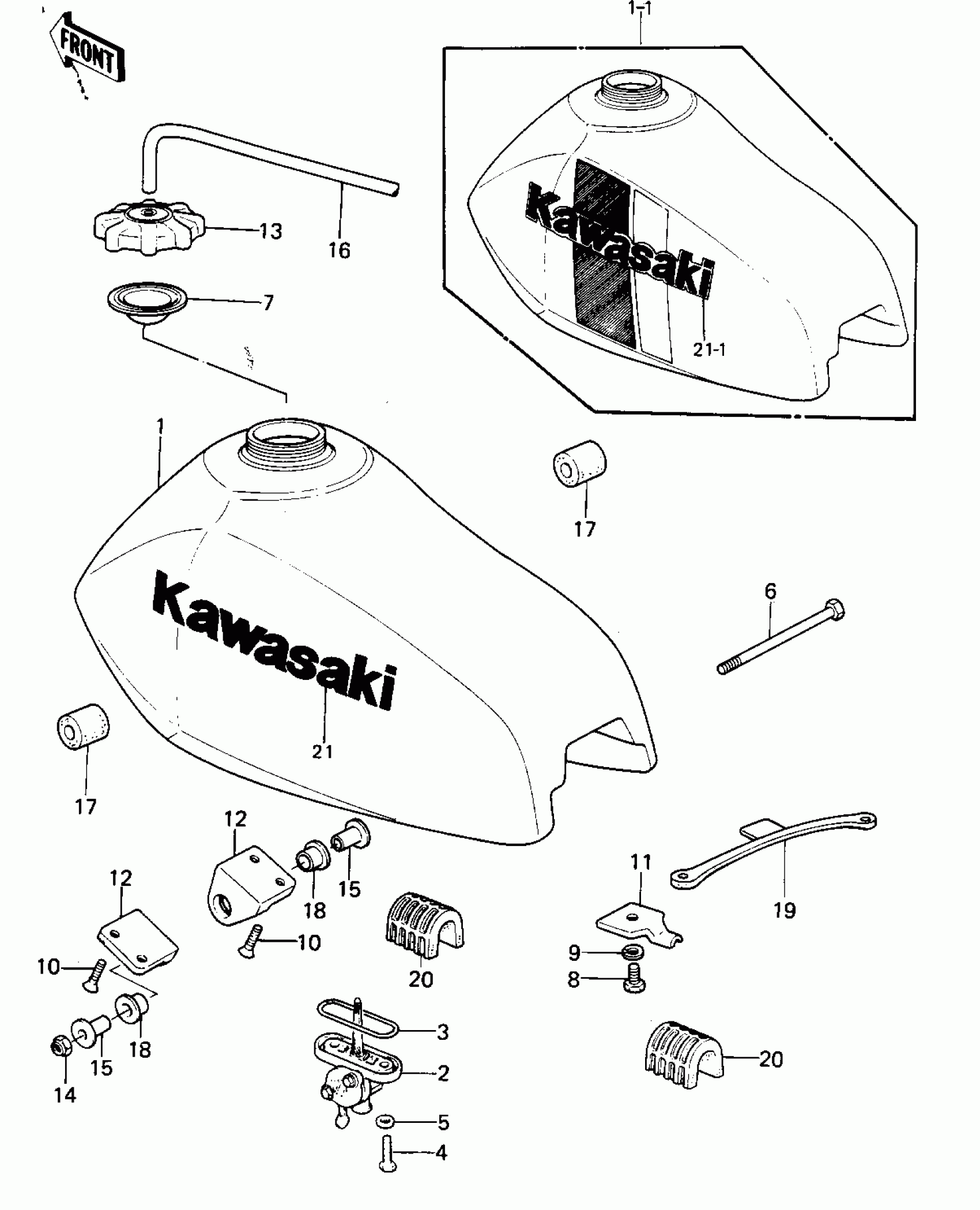

Find the part on the Fuel Tank diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Fuel Tank Diagram

#

Description
Price
Status
Order Qty

1

TANK-FUEL,L.GREEN

51001-1080-6W

Out of stock

1-1

TANK-FUEL,L.GREEN

51001-5106-6W

Out of stock

2

COCK ASSY,FUEL

51023-4002

Out of stock

3

RING,TAP FLANGED

51039-003

Out of stock

4

BOLT,6X20

92001-1091

Out of stock

5

WASHER-PLAIN

92022-183

Out of stock

6

BOLT-UPSET,6X105

112G06105

Out of stock

7

GASKET,FUEL TANK CAP

11009-1452

Out of stock

8

BOLT,6X10

112G0610

Out of stock

9

WASHER SPRING 6MM

461F0600

Out of stock

10

SCREW-CSK-CROS,6X14

221B0614

Out of stock

11

BRACKET,FUEL TANK

32052-1009

Out of stock

12

BRACKET,FUEL TANK

32052-1010

Out of stock

13

CAP-TANK,FUEL

51049-1006

Out of stock

14

NUT,LOCK,6MM

92019-008

Out of stock

15

SPACER,FUEL TANK

92026-1015

Out of stock

16

TUBE,VINYL

92059-1022

Out of stock

17

DAMPER RUBBER,FUEL

92075-1047

Out of stock

18

DAMPER RUBBER,FUEL

92075-1048

Out of stock

19

BAND,FUEL TANK

92072-1033

Out of stock

20

DAMPER RUBBER,FUEL

92075-1027

Out of stock

21

DECAL,FUEL TANK

56014-1023

Out of stock

21-1

EMBLEM,LH

56014-4005

Out of stock

21-1

EMBLEM,RH

56014-4006

Out of stock
