1980 Kawasaki KLX250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

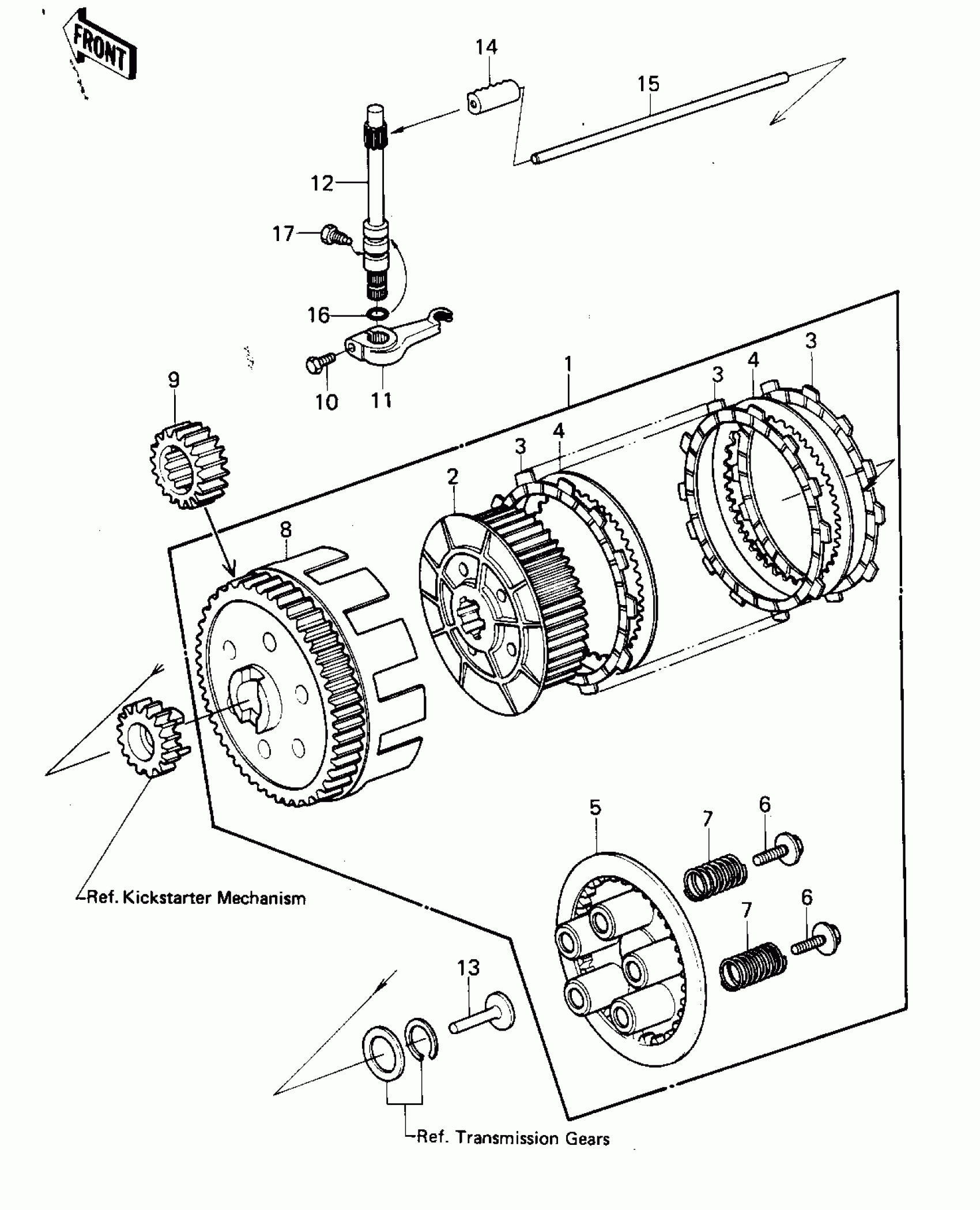

1980 Kawasaki KLX250 Clutch Diagram

#

Description
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1046

Out of stock

2

HUB,CLUTCH

13087-1001

Out of stock

3

PLATE CLUTCH FRICTION

13088-015

Out of stock

4

PLATE-CLUTCH,T=1.6

13089-013

Out of stock

5

PLATE,CLUTCH OPERATNG

13187-1005

Out of stock

6

BOLT,FLANGED,6X18

92001-1066

Out of stock

7

SPRING,CLUTCH

92081-083

Out of stock

8

HOUSING,CLUTCH

13095-1015

Out of stock

9

GEAR,PRIMARY

13121-035

Out of stock

10

BOLT-UPSET

112G0618

Out of stock

11

LEVER,CLUTCH RELEASE

13103-028

Out of stock

12

SHAFT,CLUTCH RELEASE

13106-006

Out of stock

13

PUSHER-CLTCH SPRG PLT

13116-016

Out of stock

14

ROD-PUSH,CLUTCH,6T

13116-1040

Out of stock

15

ROD,CLUTCH PUSH,LONG

13116-1002

Out of stock

16

O RING,10MM

670B2010

Out of stock

17

BOLT,CLUTCH RELEASE

92003-130

Out of stock
