1980 Kawasaki KLX250 Carburetor Assy Diagram

← All diagrams

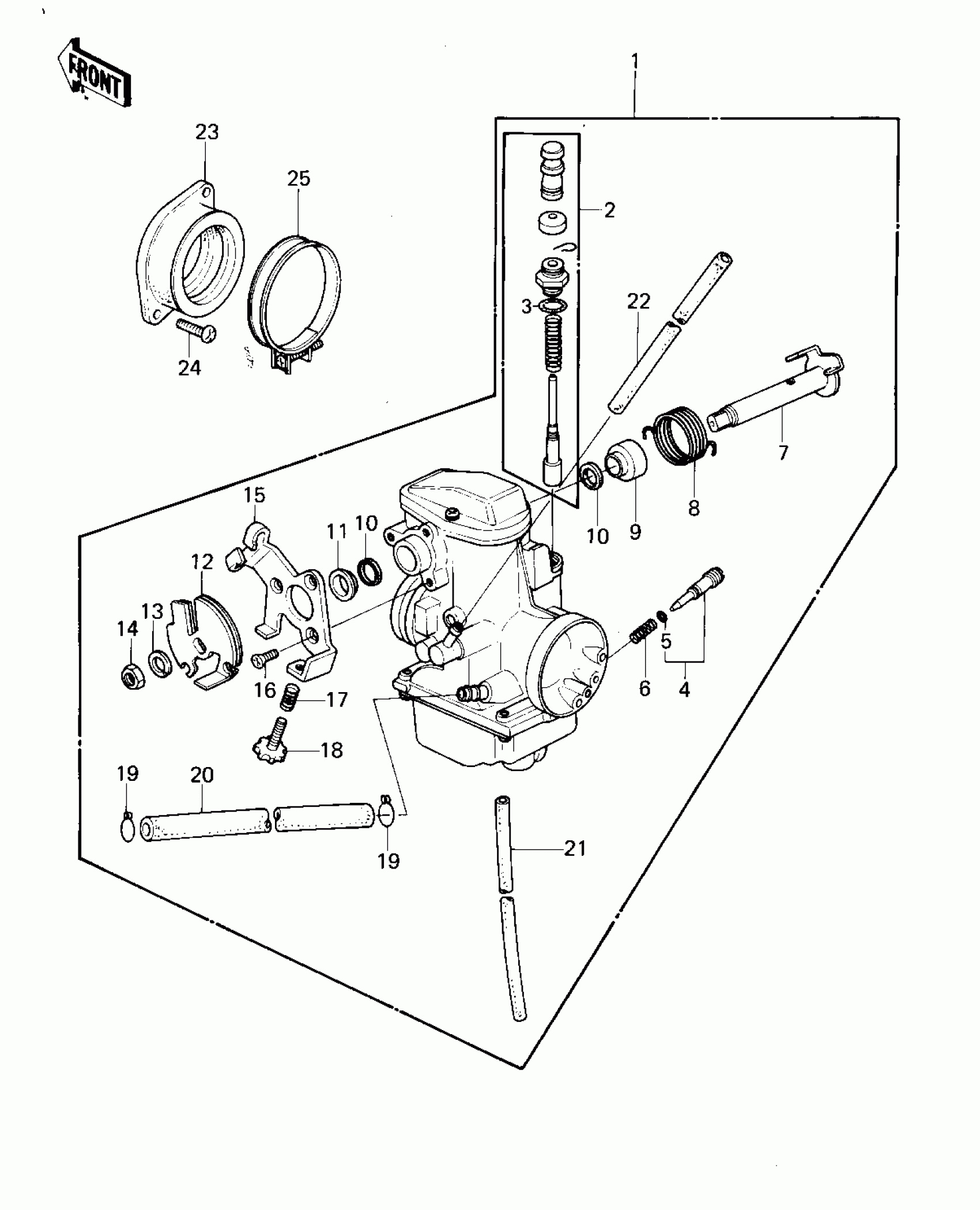

Find the part on the Carburetor Assy diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Carburetor Assy Diagram

#

Description
Price
Status
Order Qty

1

CARBURETOR ASSY

16001-1251

Out of stock

1

CARBURETOR ASSY

16001-1251

Out of stock

2

PLUNGER,STARTER

16016-1026

Out of stock

3

O RING,9MM

670B1509

Out of stock

4

SCREW,PILOT ADJUST

16014-1017

Out of stock

5

GASKET,"O"RING

16038-022

Out of stock

6

SPRING,PILOT AIR SCREW

16022-007

Out of stock

7

SHAFT,THROTTLE

16041-1010

Out of stock

8

SPRING,THROTTLE VALVE

92081-1184

Out of stock

9

GUIDE,RETURN SPRING

92026-1060

Out of stock

10

OIL SEAL THROTTLE

11009-1157

Out of stock

11

COLLAR,B

16073-003

Out of stock

12

LEVER,THROTTLE

13168-1049

Out of stock

13

WASHER SPRING 8MM

461F0800

Out of stock

14

NUT 8MM

315B0800

Out of stock

15

BRACKET,THROTTLE CABL

11034-1585

Out of stock

16

SCREW,CNTSNK HD,5X14

221B0514A

Out of stock

17

SPRING,THROTTLE ADJST

16022-010

Out of stock

18

SCREW,THROTTLE STOP

16021-1016

Out of stock

19

CLAMP,TUBE

92037-1184

Out of stock

20

TUBE,7.5X12.5X225

92059-1123

Out of stock

21

HOSE,OVERFLOW,3,5X450

92059-1095

Out of stock

22

HOSE,AIR VENT,4.5X250

92059-1096

Out of stock

23

HOLDER,CARBURETOR

16065-1024

Out of stock

24

SCREW-PAN-CROS,6X14

220B0614

Out of stock

25

CLAMP

92037-1006

Out of stock
