1980 Kawasaki KLX250 Transmission Diagram

← All diagrams

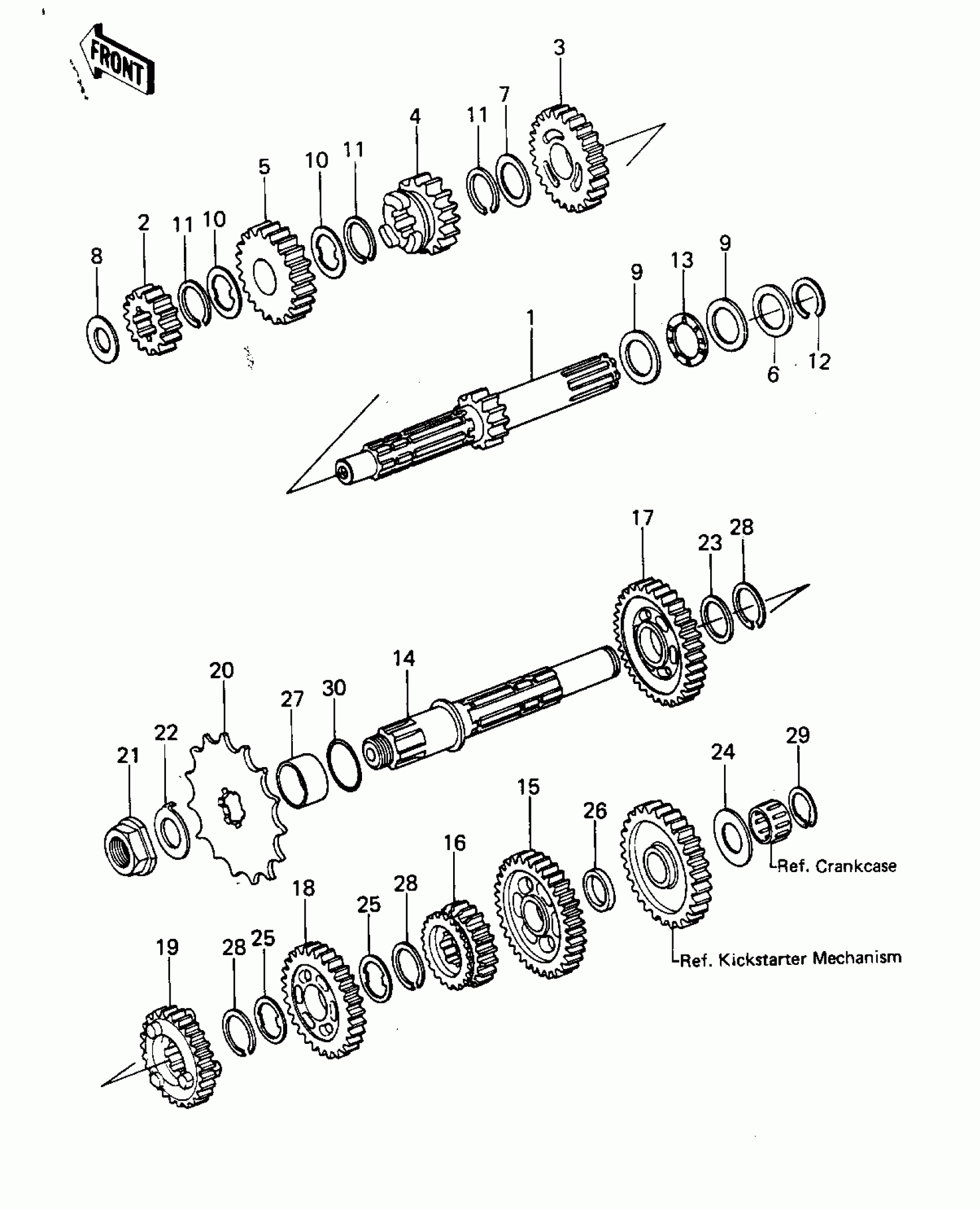

Find the part on the Transmission diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Transmission Diagram

#

Description
Price
Status
Order Qty

1

SHAFT,DRIVE

13127-053

Out of stock

2

2ND GEAR,DRIVE SHAFT

13129-1022

Out of stock

3

TOP GEAR,DRV SHFT,24T

13129-1050

Out of stock

4

GEAR,INPUT,3RD,20T

13129-1284

Out of stock

5

4TH GEAR,DRIVE SHAFT

13134-026

Out of stock

6

WASHER,20.5X30X1,STEEL

92022-112

Out of stock

7

WASHER,22.3X27X0.5

92022-198

Out of stock

8

WASHER,THRUST,15MM

92022-279

Out of stock

9

WASHER,PLAIN

92022-314

Out of stock

10

WASHER,TOOTHED,22.5X27X0.5

92024-039

Out of stock

11

RING-SNAP,20X25.5X1.2

92033-025

Out of stock

12

RING-SNAP,18MM

92033-029

Out of stock

13

BRG,NEEDLE,AXK1104

92046-052

Out of stock

14

SHAFT,OUTPUT

13128-1007

Out of stock

15

LOW GEAR,OUTPUT SHAFT

13129-058

Out of stock

16

TOP GEAR,OUT SHFT,21T

13129-1051

Out of stock

17

2ND GEAR,OUTPUT 26T

13131-044

Out of stock

18

3RD GEAR,OUTPUT SHAFT

13133-044

Out of stock

19

GEAR,OUTPUT 4TH,21T

13129-1285

Out of stock

20

SPROCKET-OUTPUT,14T

13144-1005

Out of stock

20

SPROCKET-OUTPUT,13T

13144-1027

Out of stock

20

SPROCKET-OUTPUT,15T

13144-069

Out of stock

21

NUT,LOCK,16M/M

92015-1013

Out of stock

22

WASHER,LOCK

92022-1017

Out of stock

23

WASHER,22.3X27X0.5

92022-198

Out of stock

24

WASHER,17.3X30X1.4

92022-270

Out of stock

25

WASHER,TOOTHED,22.5X27X0.5

92024-039

Out of stock

26

SPACER

92026-114

Out of stock

27

COLLAR,ENGINE SPROCKT

92027-287

Out of stock

28

RING-SNAP,20X25.5X1.2

92033-025

Out of stock

29

RING-SNAP

92033-032

Out of stock

30

RING-O,17.5X1.5

92055-022

Out of stock
