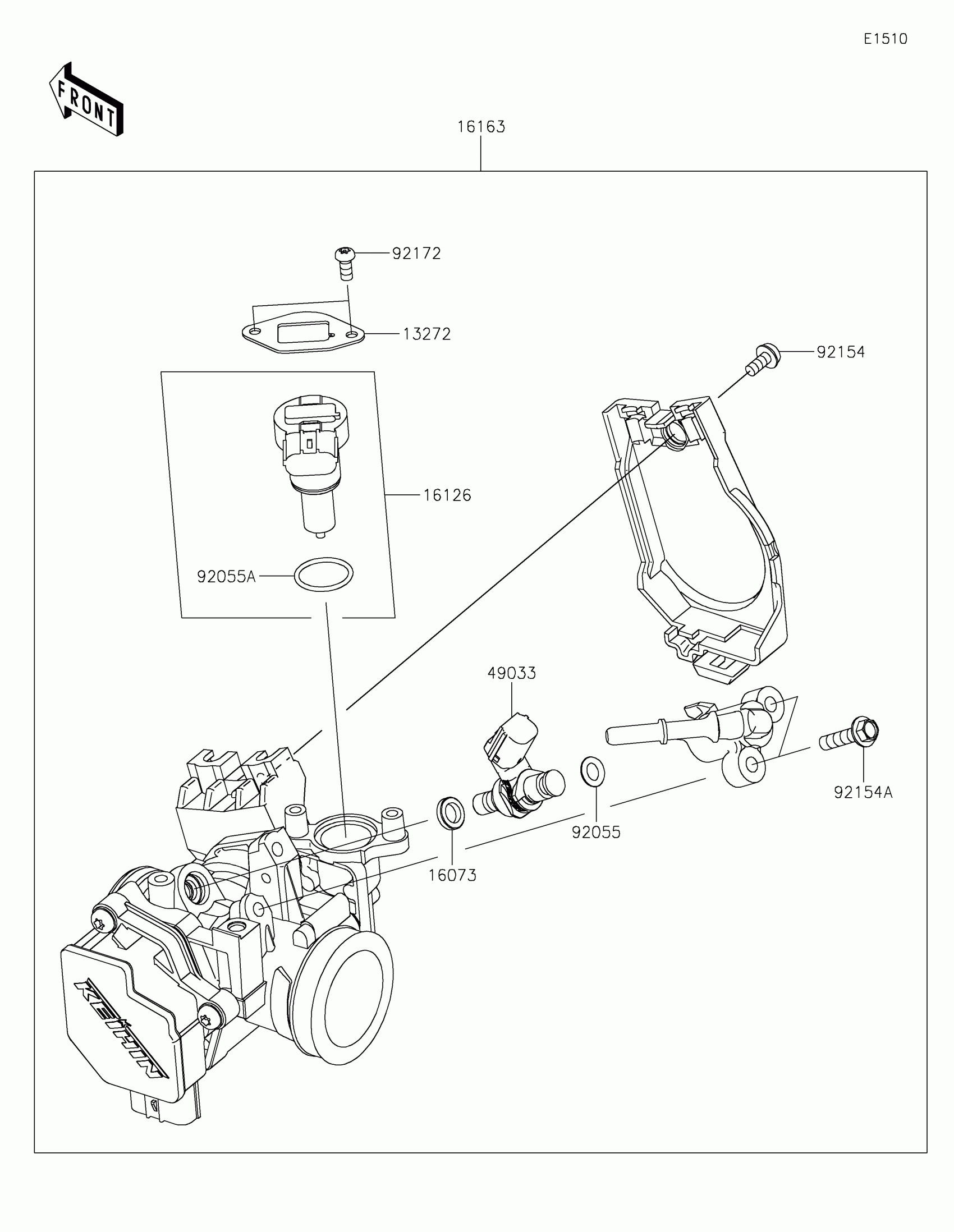

Find the part on the Throttle diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-1862

1

$21.07

In stock

16073

INSULATOR

16073-0821

1

$19.17

In stock

16126

VALVE,ISC

16126-0729

1

$118.86

In stock

16163

THROTTLE-ASSY

16163-0951

1

$642.87

In stock

49033

NOZZLE-INJECTION

49033-0031

1

$196.73

In stock

92055

RING-O,6.3X2.2

92055-0821

1

$7.58

In stock

92055A

RING-O

92055-0826

1

$8.37

In stock

92154

BOLT

92154-0133

1

$7.15

In stock

92154A

BOLT,FLANGED,5X20

92154-1559

1

$1.69

In stock

92172

SCREW,TORX

92172-0903

1

$3.19

In stock
