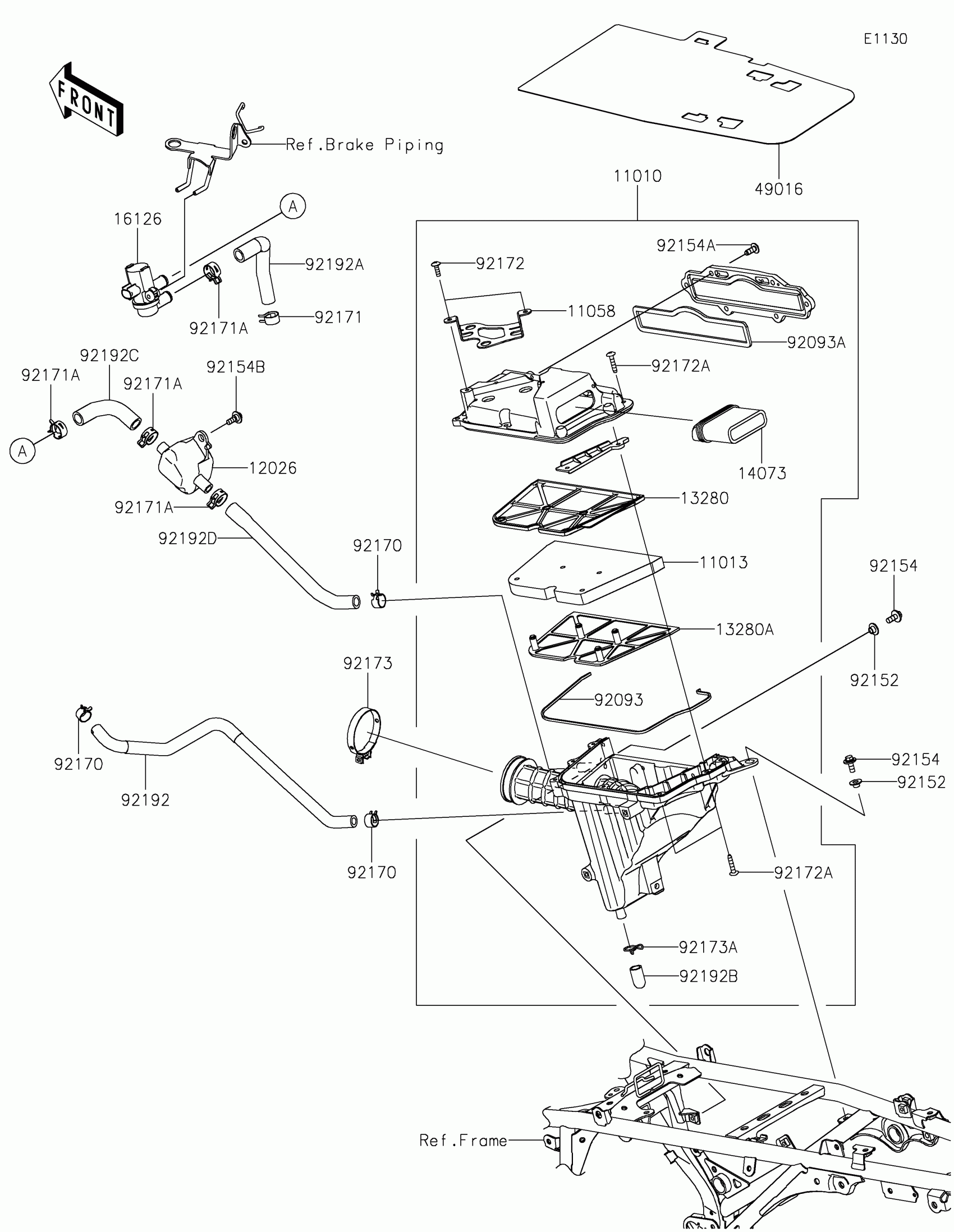

Find the part on the Air Cleaner diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1845

1

$223.17

In stock

11013

ELEMENT-AIR FILTER

11013-0790

1

$13.98

In stock

11058

BRACKET,ECU

11058-1337

1

$36.48

In stock

12026

CHAMBER

12026-0026

1

$44.84

In stock

13280

HOLDER,UPP

13280-0945

1

$3.10

In stock

13280A

HOLDER,LWR

13280-0946

1

$12.59

In stock

14073

DUCT,IN

14073-1931

1

$61.07

In stock

16126

VALVE,AIR SWITCH

16126-0750

1

$86.26

In stock

49016

COVER-SEAL

49016-0729

1

$23.85

In stock

92093

SEAL

92093-0727

1

$4.64

In stock

92093A

SEAL

92093-0728

1

$34.20

In stock

92152

COLLAR,6.3X8.3X6.2

92152-2586

1

$7.41

In stock

92154

1

$1.32

In stock

92154A

BOLT,6X16

92154-3970

1

$2.12

In stock

92154B

BOLT,FLANGED,6X12

92154-7289

1

$4.58

In stock

92170

CLAMP,BRAKE HOSE

92170-1434

1

$11.81

In stock

92171

CLAMP

92171-0533

1

$2.71

In stock

92171A

CLAMP,18.8MM

92171-2056

1

$1.27

In stock

92172

SCREW,5X16

92172-0908

1

$2.07

In stock

92172A

SCREW

92172-1291

1

$1.22

In stock

92173

CLAMP

92173-2191

1

$13.63

In stock

92173A

CLAMP,14MM

92173-2474

1

$4.32

In stock

92192

TUBE,BLOW-BY

92192-1929

1

$23.47

In stock

92192A

TUBE,ASWV-HEAD

92192-1930

1

$12.59

In stock

92192B

TUBE

92192-2582

1

$7.44

In stock

92192C

TUBE,CHAMBER-ASWV

92192-2723

1

$8.00

In stock

92192D

TUBE,A/C-CHAMBER

92192-2724

1

$12.76

In stock
