2025 Kawasaki KLX230SM ABS Fuel Evaporative System Diagram

← All diagrams

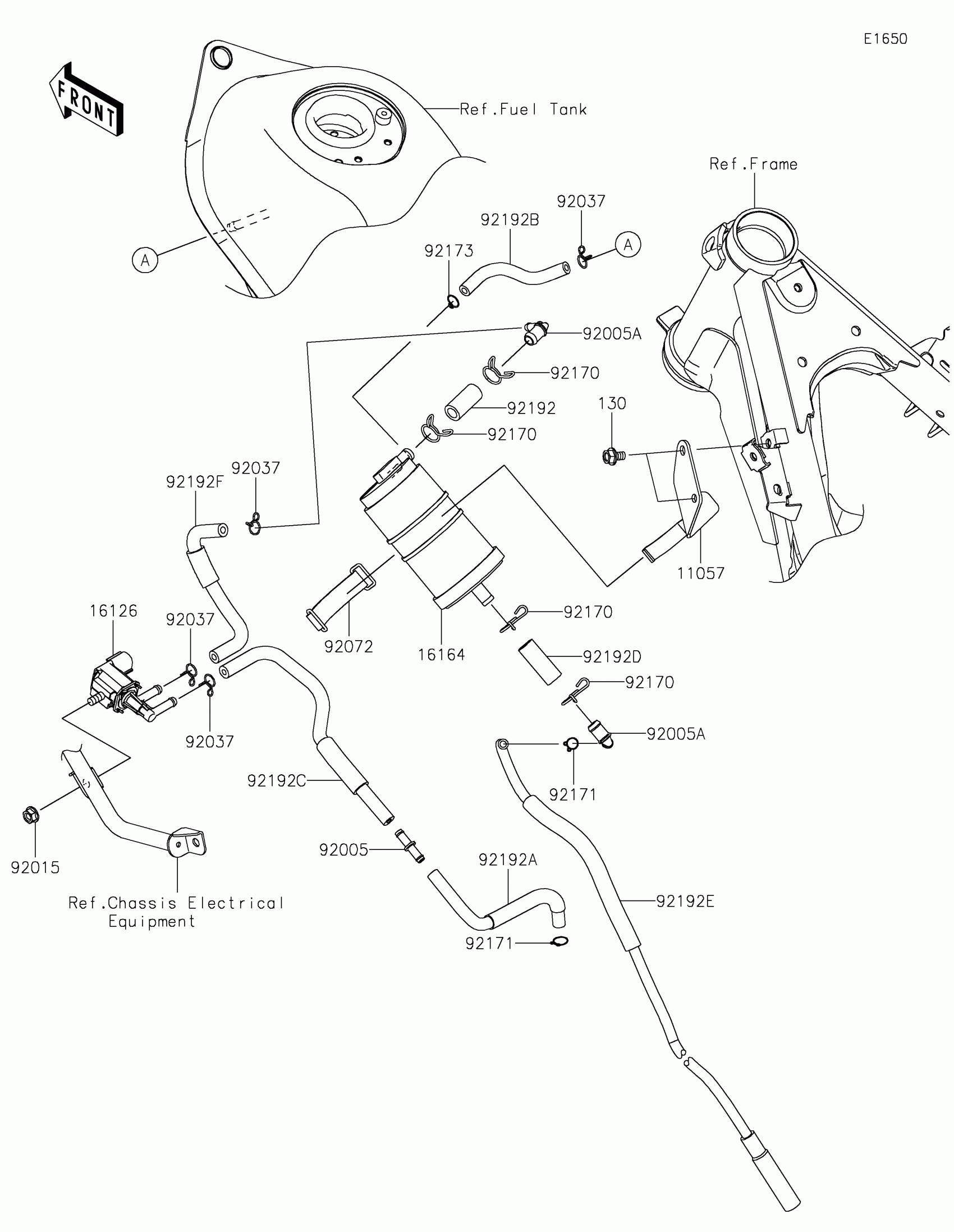

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-2428

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0022

1
Out of stock

92005

FITTING

92005-0721

1
Out of stock

92005A

FITTING

92005-0753

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=50

92072-1419

1
Out of stock

92170

CLAMP

92170-1695

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92173

CLAMP

92173-1190

1
Out of stock

92192

TUBE,9X14.4X30

92192-1757

1
Out of stock

92192A

TUBE,PCV-THB

92192-1939

1
Out of stock

92192B

TUBE,FUEL TANK-CANISTER

92192-1973

1
Out of stock

92192C

TUBE,PCV-THROTTLE BODY

92192-1974

1
Out of stock

92192D

TUBE,DRAIN,9X14X36

92192-2681

1
Out of stock

92192E

TUBE,DRAIN

92192-2686

1
Out of stock

92192F

TUBE,FITTING-PCV

92192-2821

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock
