2025 Kawasaki KLX230SM ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

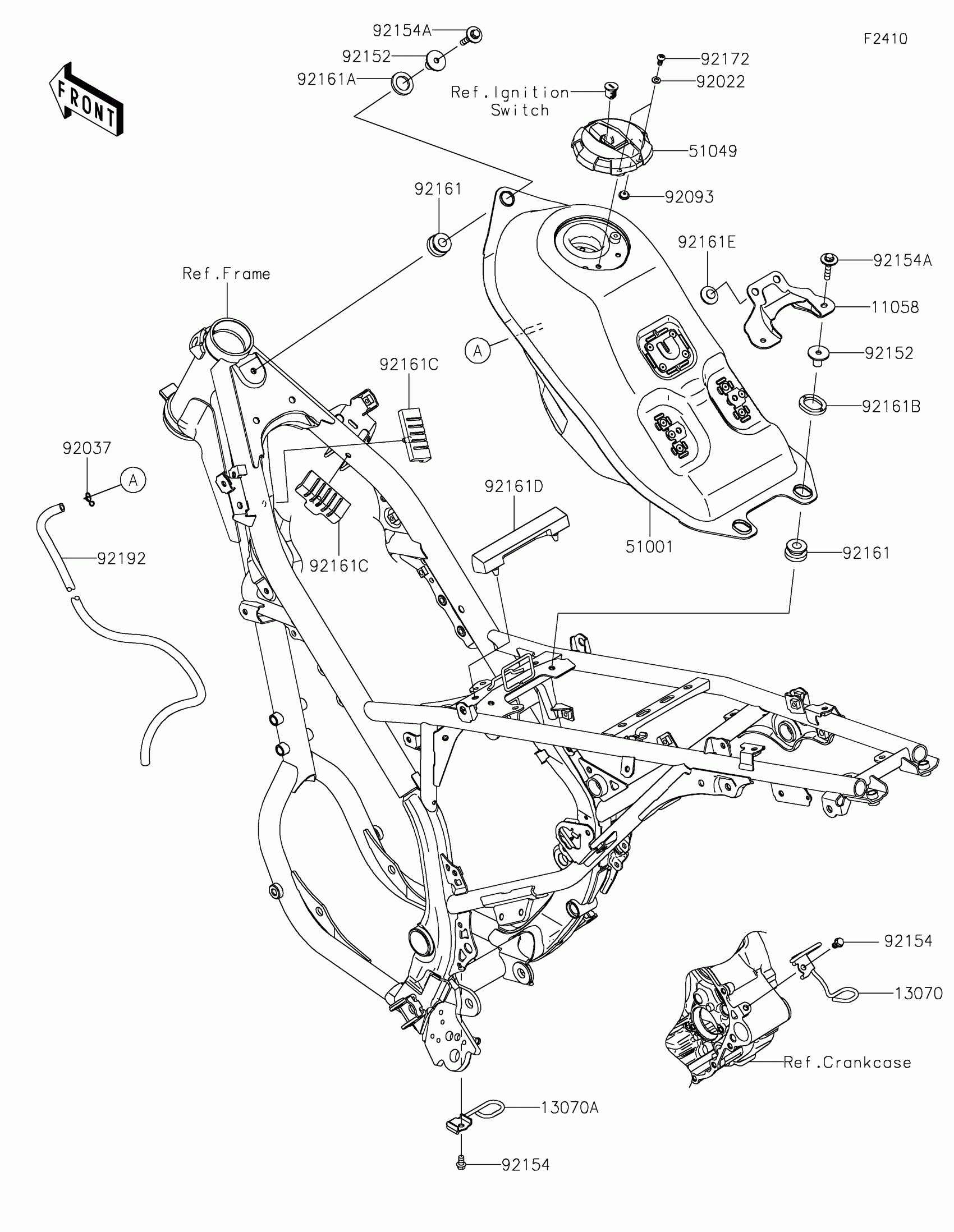

2025 Kawasaki KLX230SM ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,FUEL TANK

11058-1312

1
Out of stock

13070

GUIDE

13070-0909

1
Out of stock

13070A

GUIDE

13070-0912

1
Out of stock

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0937-25Q

1
Out of stock

51049

CAP-TANK,FUEL

51049-0766

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92093

SEAL,RO 2X12X4.8

92093-0722

1
Out of stock

92152

COLLAR,6.8X10X16

92152-2666

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0459

1
Out of stock

92154A

BOLT,FLANGED,6X30

92154-7273

1
Out of stock

92161

DAMPER,FUEL TANK,FR

92161-1392

1
Out of stock

92161A

DAMPER

92161-2216

1
Out of stock

92161B

DAMPER

92161-2217

1
Out of stock

92161C

DAMPER

92161-2286

1
Out of stock

92161D

DAMPER,FUEL TANK

92161-2537

1
Out of stock

92161E

DAMPER

92161-2547

1
Out of stock

92172

SCREW,5X10

92172-0496

1
Out of stock

92192

TUBE,DRAIN

92192-2722

1
Out of stock
