2025 Kawasaki KLX230SM ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

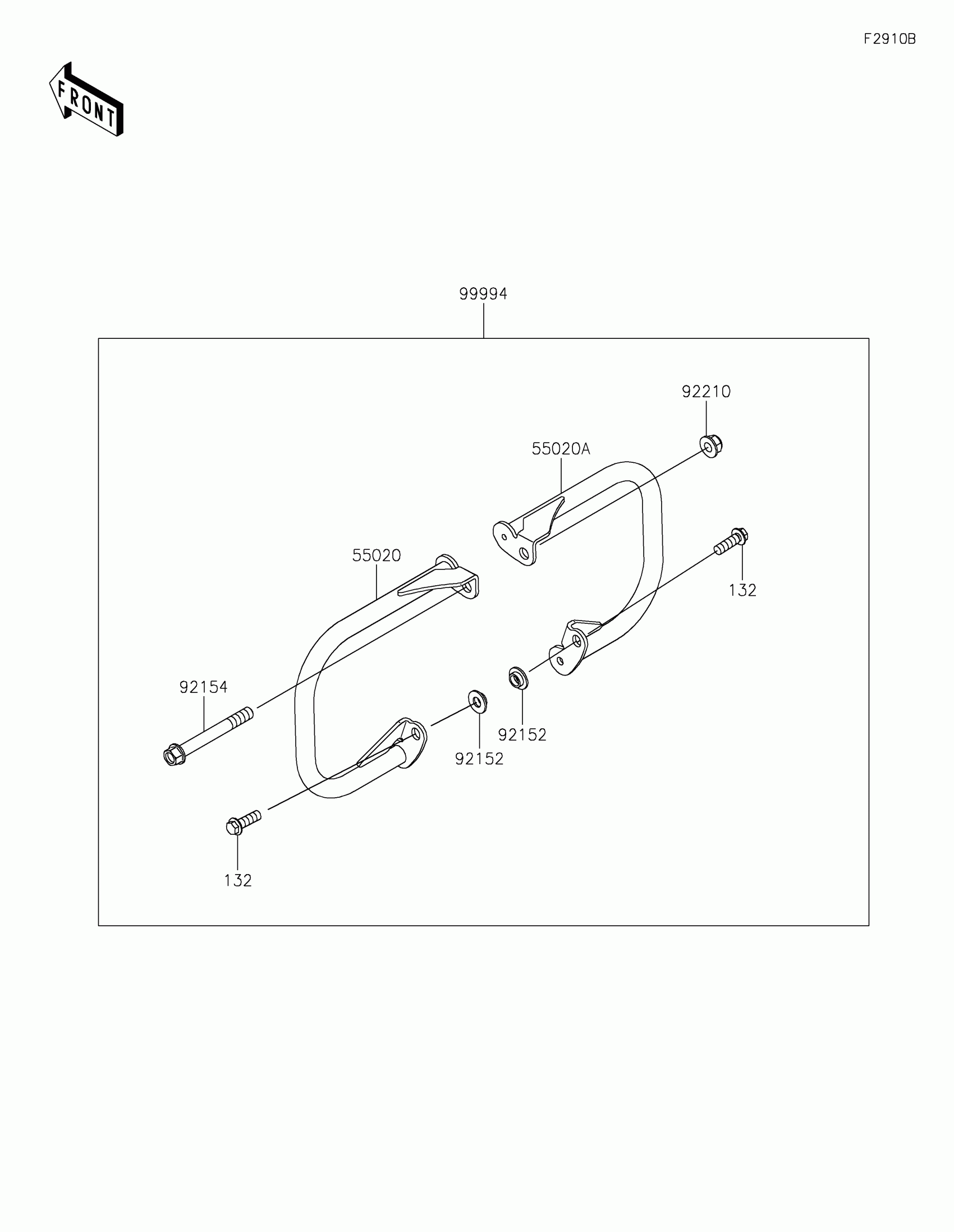

2025 Kawasaki KLX230SM ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

55020

GUARD,LH,F.S.BLACK

55020-2562-18R

1

$38.20

In stock

55020A

GUARD,RH,F.S.BLACK

55020-2563-18R

1

$38.20

In stock

92152

COLLAR

92152-3859

1

$2.03

In stock

92154

BOLT,FLANGED,10X85

92154-4039

1

$8.12

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

99994

ENGINE GUARD,F.S.BLACK

99994-2050-18R

1

$77.26

In stock

132

1

$3.69

In stock
