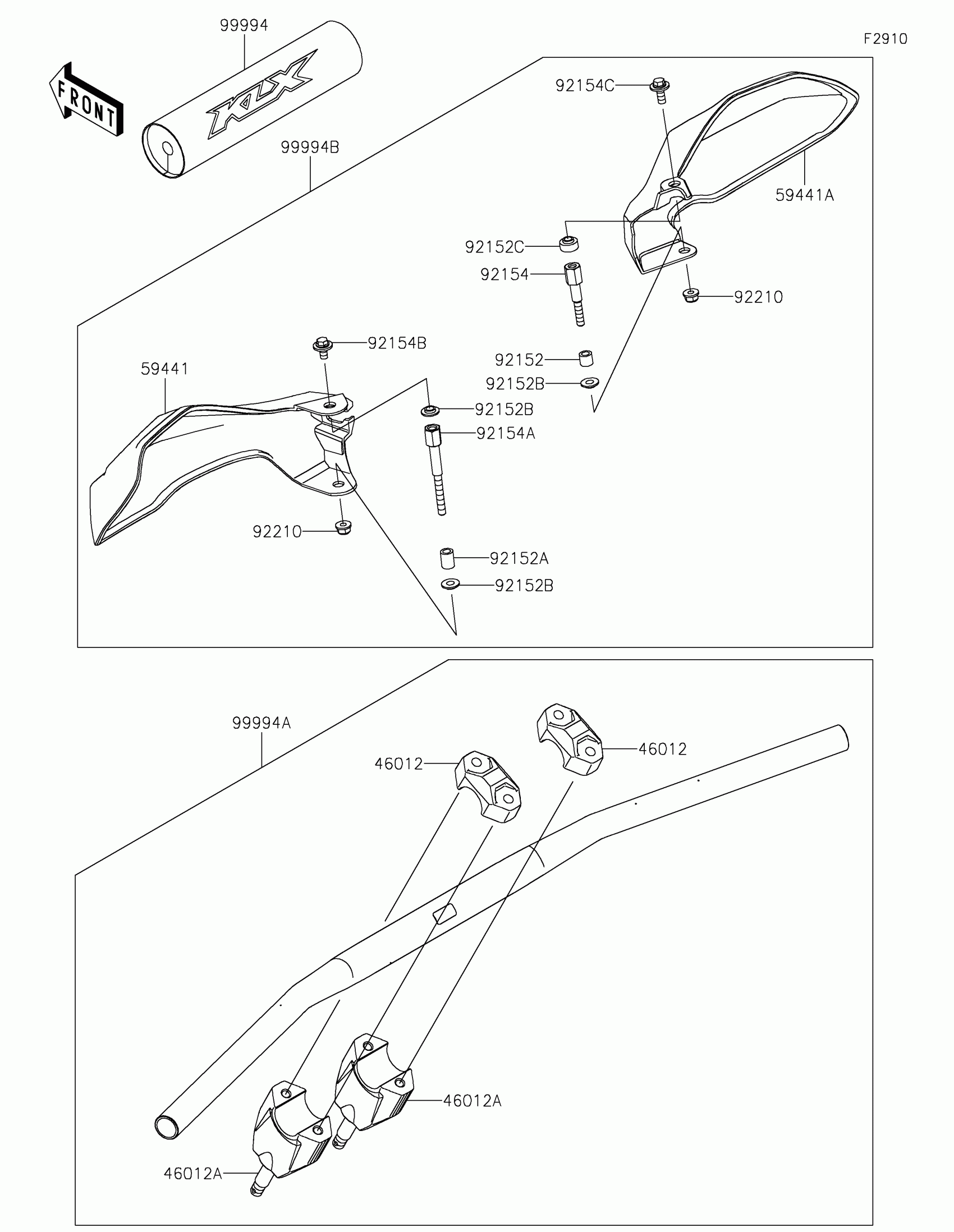

Kawasaki KLX230SM ABS Accessory(Handle) Diagram

Description

Price

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0359-18R

$18.56

46012A

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0360-18R

$23.80

59441

COVER-HANDLE,LH,EBONY

59441-0045-6C

$29.90

59441A

COVER-HANDLE,RH,EBONY

59441-0046-6C

$29.90

92152

COLLAR,6.5X10.5X9.3

92152-1992

$2.98

92152A

COLLAR,6.5X10.5X14

92152-2302

$4.08

92152B

COLLAR,6.5X15X3.4

92152-2314

$2.41

92152C

COLLAR

92152-2592

$4.39

92154

BOLT

92154-1670

$17.97

92154A

BOLT

92154-2359

$10.59

92154B

BOLT,6X12

92154-7271

$3.98

92154C

BOLT,FLANGED,6X16

92154-7288

$4.53

92210

NUT,LOCK,FLANGED,6MM

92210-1992

$4.00

99994

HANDLE-BAR PAD

99994-1274

$50.92

99994A

FAT TYPE HANDLE BAR,F.S.BLACK

99994-1508-18R

$220.74

99994B

HAND COVER,EBONY

99994-2073-6C

$80.03
