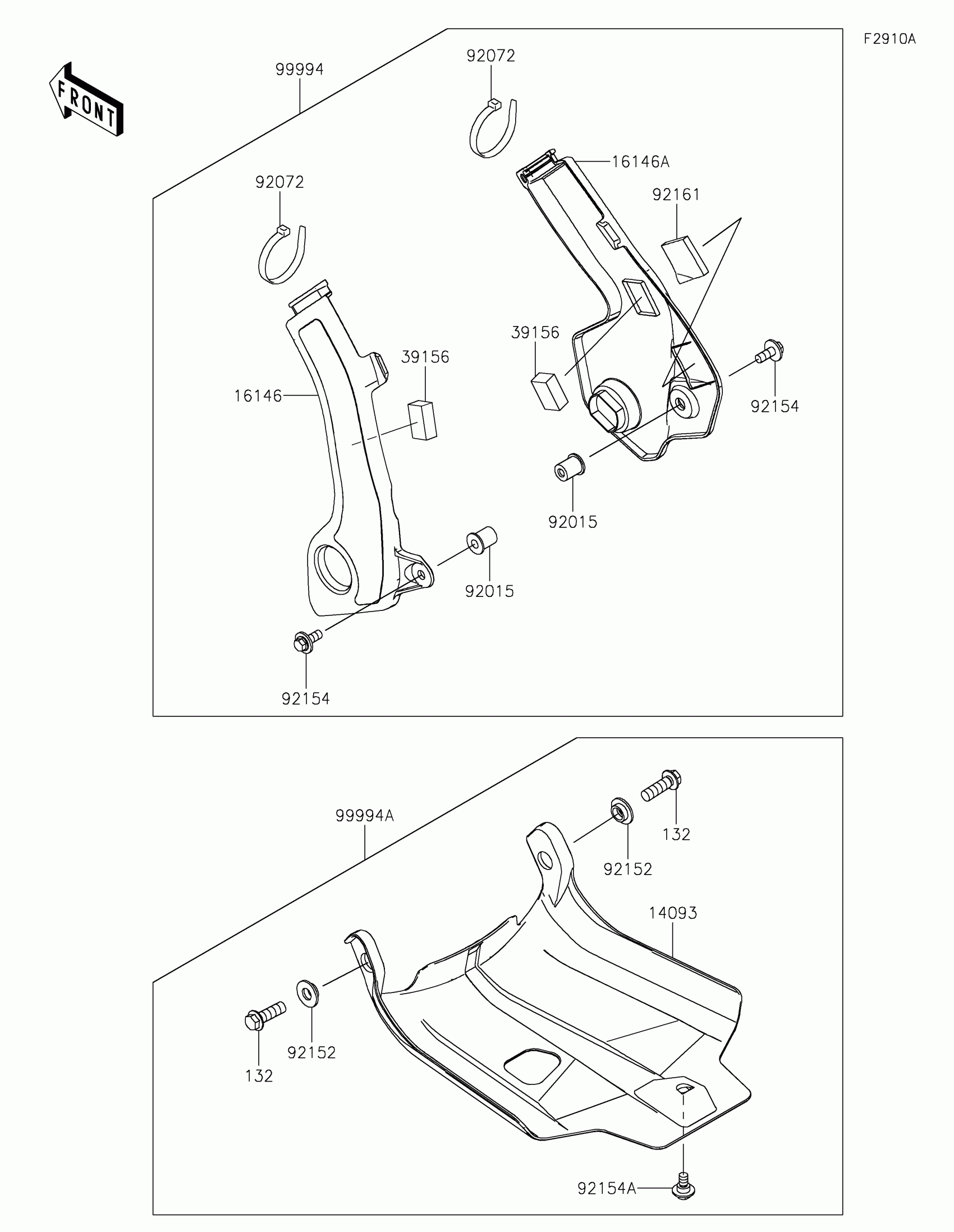

Find the part on the Accessory diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER

14093-1563

1

$45.63

In stock

16146

COVER-ASSY,FRAME,LH

16146-0867

1

$11.39

In stock

16146A

COVER-ASSY,FRAME,RH

16146-0868

1

$11.39

In stock

39156

PAD,15X25X10

39156-2489

1

$1.12

In stock

92015

NUT

92015-1700

1

$6.82

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92152

COLLAR

92152-3859

1

$2.03

In stock

92154

1

$1.32

In stock

92154A

BOLT,FLANGED,6X9

92154-7285

1

$2.53

In stock

92161

DAMPER

92161-1591

1

$0.93

In stock

99994

COVER-FRAME

99994-1466

1

$39.86

In stock

99994A

SKID PLATE

99994-2020

1

$25.90

In stock

132

1

$3.69

In stock
