2025 Kawasaki KLX230SM ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

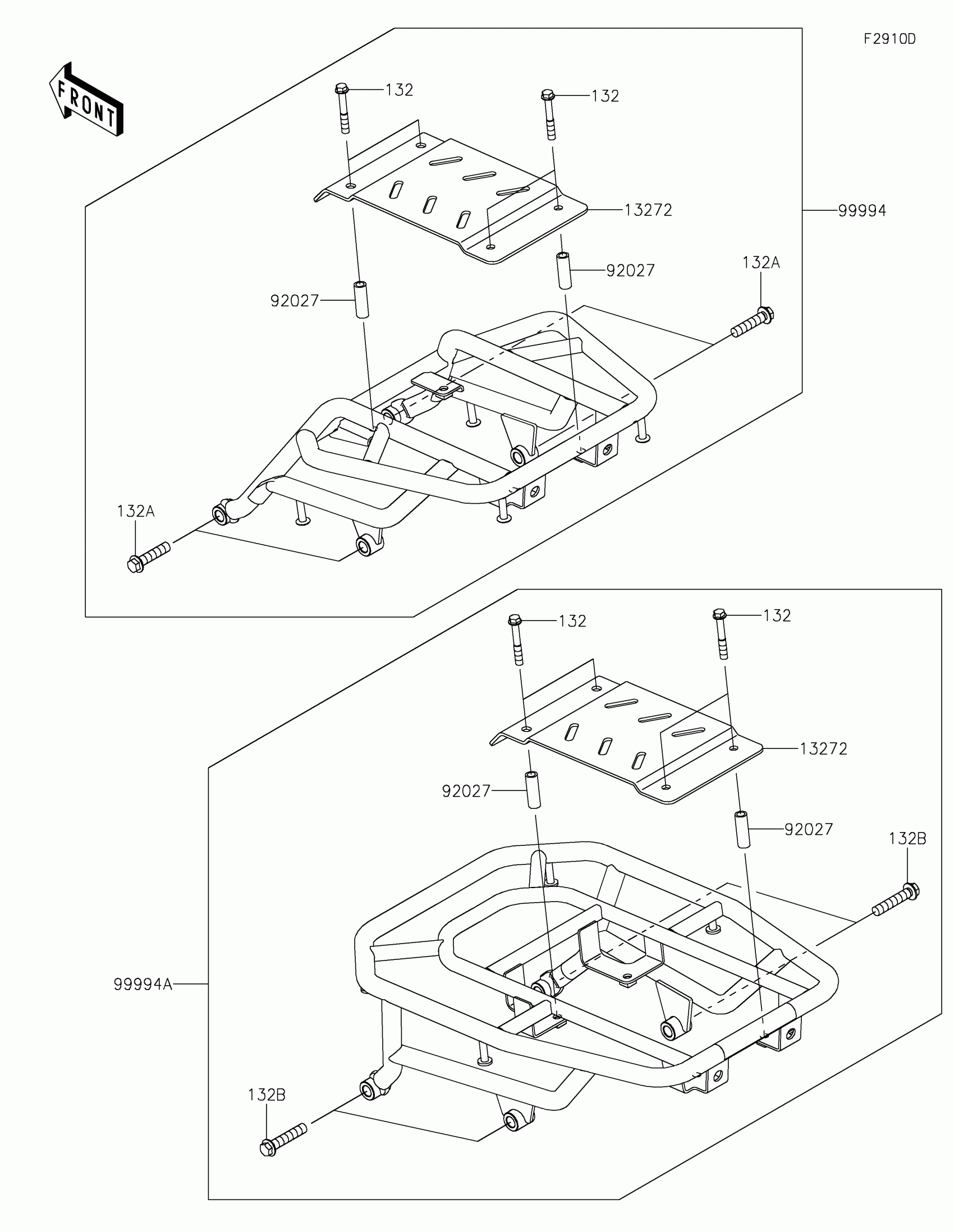

2025 Kawasaki KLX230SM ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2731

1

$83.14

In stock

92027

COLLAR,6.8X10X30

92027-209

1
Out of stock

99994

CARRIER

99994-1280

1

$271.34

In stock

99994A

CARRIER LARGE

99994-2019

1

$246.53

In stock

132

1

$3.53

In stock

132A

1

$3.78

In stock

132B

1

$4.01

In stock
