2017 Kawasaki KLX150L (Latin America) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2017 Kawasaki KLX150L (Latin America), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

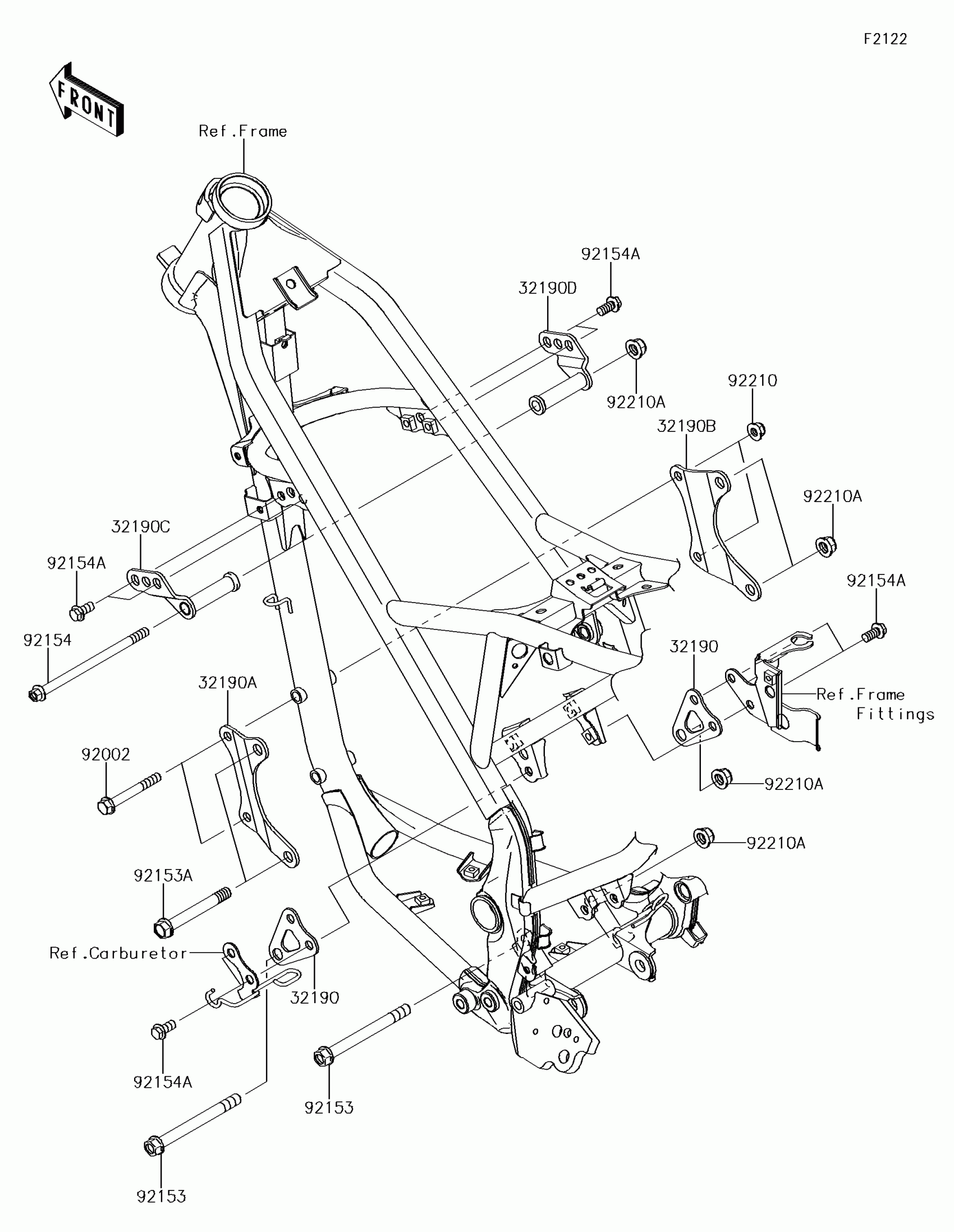

2017 Kawasaki KLX150L (Latin America) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190

BRACKET-ENGINE,RR

32190-0310

1

$4.95

In stock

32190A

1

$23.64

In stock

32190B

1

$23.64

In stock

32190C

1

$7.15

In stock

32190D

1

$7.15

In stock

92002

BOLT,FLANGED,8X65

92002-1349

1
Out of stock

92153

BOLT,FLANGED,10X105

92153-0614

1
Out of stock

92153A

BOLT,FLANGED,10X80

92153-1126

1
Out of stock

92154

BOLT,FLANGED,10X170

92154-0088

1

$14.14

In stock

92154A

BOLT,FLANGED,8X16

92154-0462

1

$7.54

In stock

92210

NUT,LOCK,FLANGED,8MM

92210-0140

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
