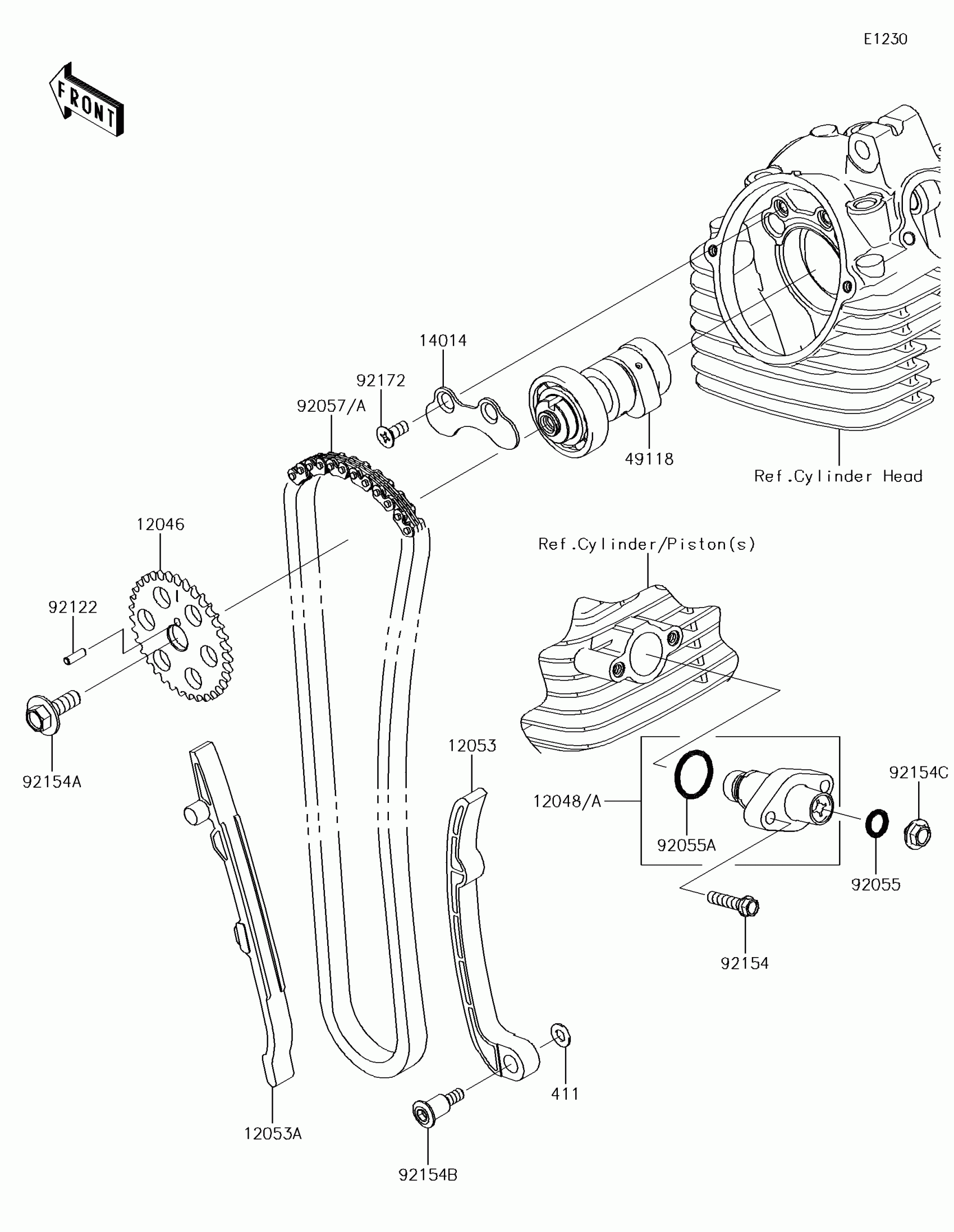

Kawasaki KLX150L (Latin America) Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,36T

12046-0084

$51.74

12048A

TENSIONER-ASSY

12048-0099

$32.44

12053

GUIDE-CHAIN,RR

12053-0198

$44.23

12053A

GUIDE-CHAIN,FR

12053-0215

$44.23

14014

PLATE-POSITION

14014-1154

$1.10

411

WASHER-PLAIN,6MM

411AA0600

$2.06

49118

CAMSHAFT-COMP

49118-0781

$212.17

92055

RING-O,9.8X2.4

92055-0060

$2.15

92055A

RING-O,23.2X2.4

92055-0193

$2.49

92057A

CHAIN,CAM

92057-0702

$37.07

92122

ROLLER

92122-0011

$1.00

92154

BOLT,FLANGED,6X25

92154-1144

$0.81

92154A

BOLT,FLANGED,8X23

92154-1162

$1.56

92154B

BOLT,SOCKET

92154-1163

$1.88

92154C

BOLT,FLANGED,6X6

92154-1229

$2.15

92172

SCREW,6X14

92172-0832

$0.67
