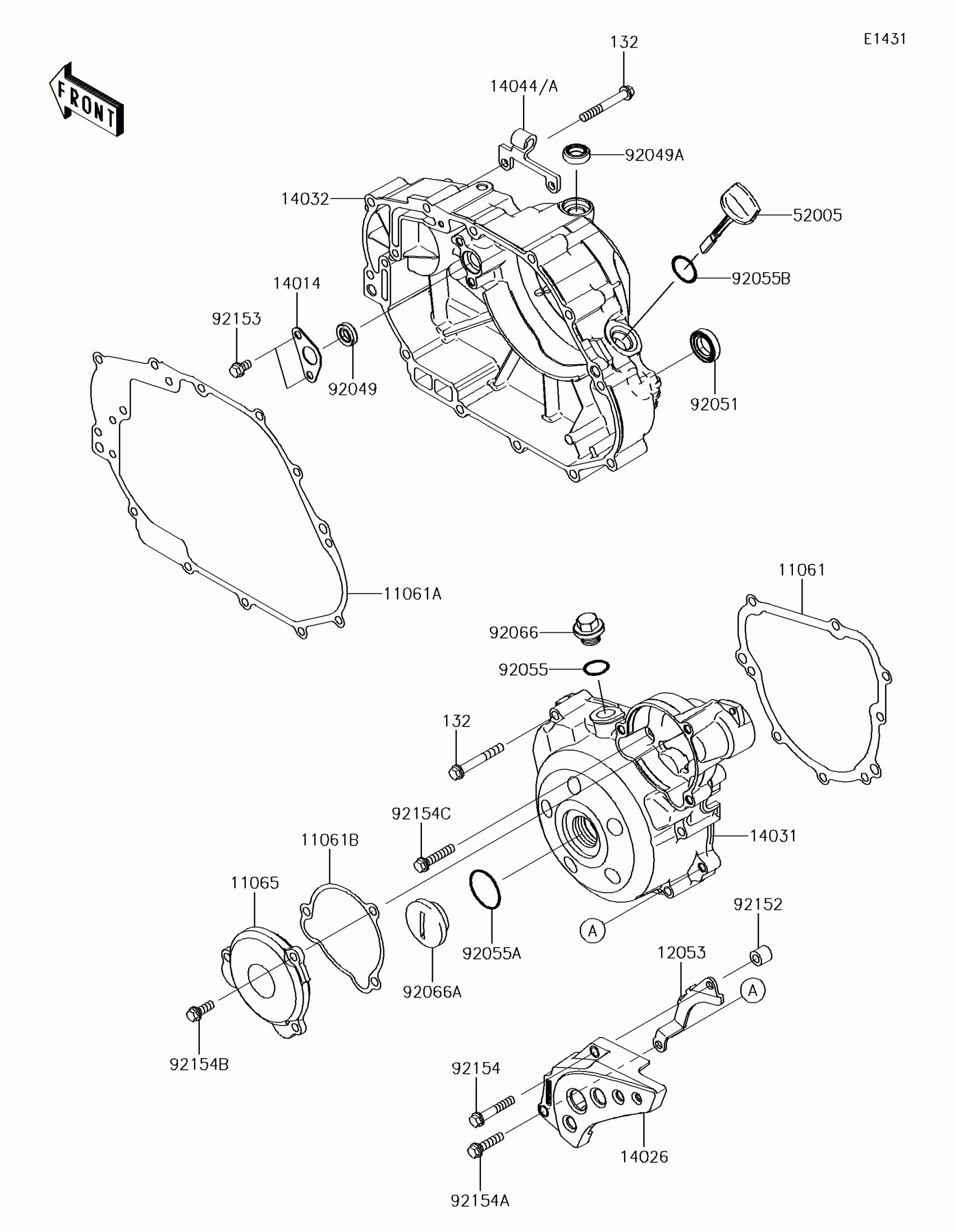

Kawasaki KLX150L (Latin America) Engine Cover(s) Diagram

Description

Price

11061

GASKET,GENERATOR COVER

11061-0400

$5.47

11061A

GASKET,CLUTCH COVER

11061-0401

$8.45

11061B

GASKET

11061-0865

$6.76

11065

CAP

11065-0801

$35.01

12053

GUIDE-CHAIN

12053-0133

$7.56

132

BOLT-FLANGED-SMALL,6X45

132BA0645

$3.39

14014

PLATE-POSITION

14014-1153

$0.44

14026

COVER-CHAIN

14026-0103

$34.18

14031

COVER-GENERATOR

14031-0116

$106.14

14032

COVER-CLUTCH

14032-0573

$163.85

14044A

HOLDER-CABLE

14044-0567

$7.39

52005

GAUGE,OIL LEVEL

52005-0724

$7.15

92049

SEAL-OIL,10X18X5

92049-0104

$7.27

92049A

SEAL-OIL,12X20X5.5

92049-0150

$4.02

92051

SEAL-OIL,TB16267

92051-003

Unavailable

92055

RING-O,14.8X2.4

92055-0194

$4.66

92055A

RING-O,25.7X2.4

92055-0763

$4.95

92055B

RING-O,20X2

92055-0764

$3.51

92066

PLUG,14X10

92066-0724

$1.41

92066A

PLUG,GENERATOR COVER CAP

92066-1565

$5.55

92152

COLLAR,6.5X12X11

92152-0692

$4.95

92153

BOLT,6X10

92153-1140

$0.71

92154

BOLT

92154-1134

$3.27

92154A

BOLT,FLANGED,6X25

92154-1156

$1.68

92154B

BOLT,FLANGED,6X16

92154-1157

$1.49

92154C

BOLT,FLANGED,6X30

92154-1159

$2.19
