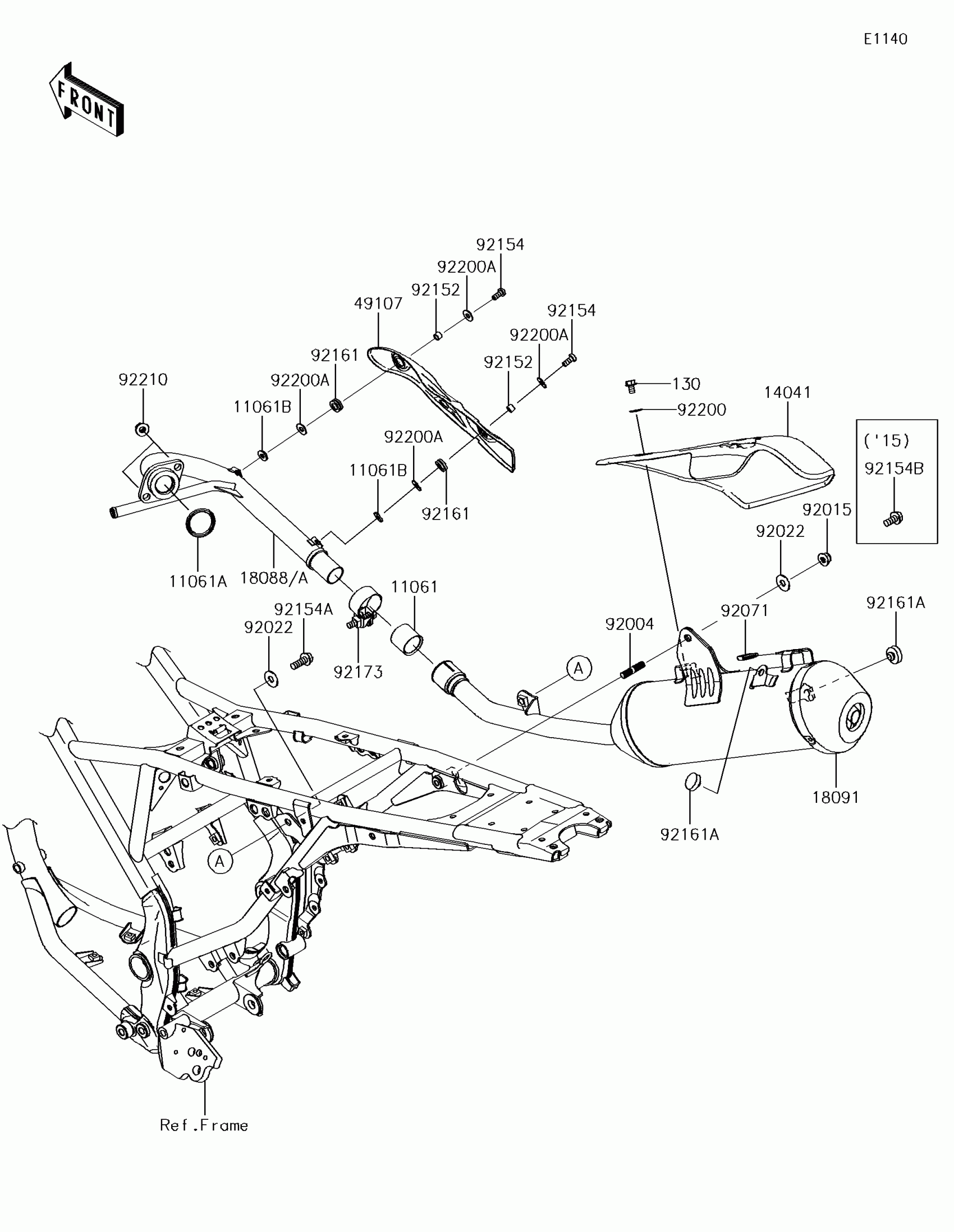

Kawasaki KLX150L (Latin America) Muffler(s) Diagram

Description

Price

11061

GASKET,MUFFLER JOINT

11061-0866

$25.88

11061A

GASKET,EXHAUST PIPE

11061-0871

$7.56

11061B

GASKET,5.8X12X1.5

11061-1148

Unavailable

130

BOLT-FLANGED,6X10

130BA0610

$0.97

14041

COVER-COMP

14041-0585

Unavailable

18088A

PIPE-EXHAUST

18088-1329

$128.04

18091

BODY-COMP-MUFFLER

18091-0950

Unavailable

49107

COVER-EXHAUST PIPE

49107-0780

Unavailable

92004

STUD,8X22

92004-0040

$3.17

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,PLAIN

92022-3026

$2.74

92071

GROMMET

92071-0712

$2.17

92152

COLLAR,6.5X8.5X6

92152-1962

$2.98

92154

BOLT,SOCKET,6X14

92154-0400

$2.75

92154A

BOLT,8X16

92154-1228

$1.69

92161

DAMPER

92161-0306

$4.27

92161A

DAMPER,MUFFLER

92161-1284

$5.39

92173

CLAMP

92173-1223

$15.93

92200

WASHER,6.5X16X1.0

92200-0796

$0.73

92200A

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,8MM

92210-0773

Unavailable
