2025 Kawasaki KLX150L (Indonesia Only) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

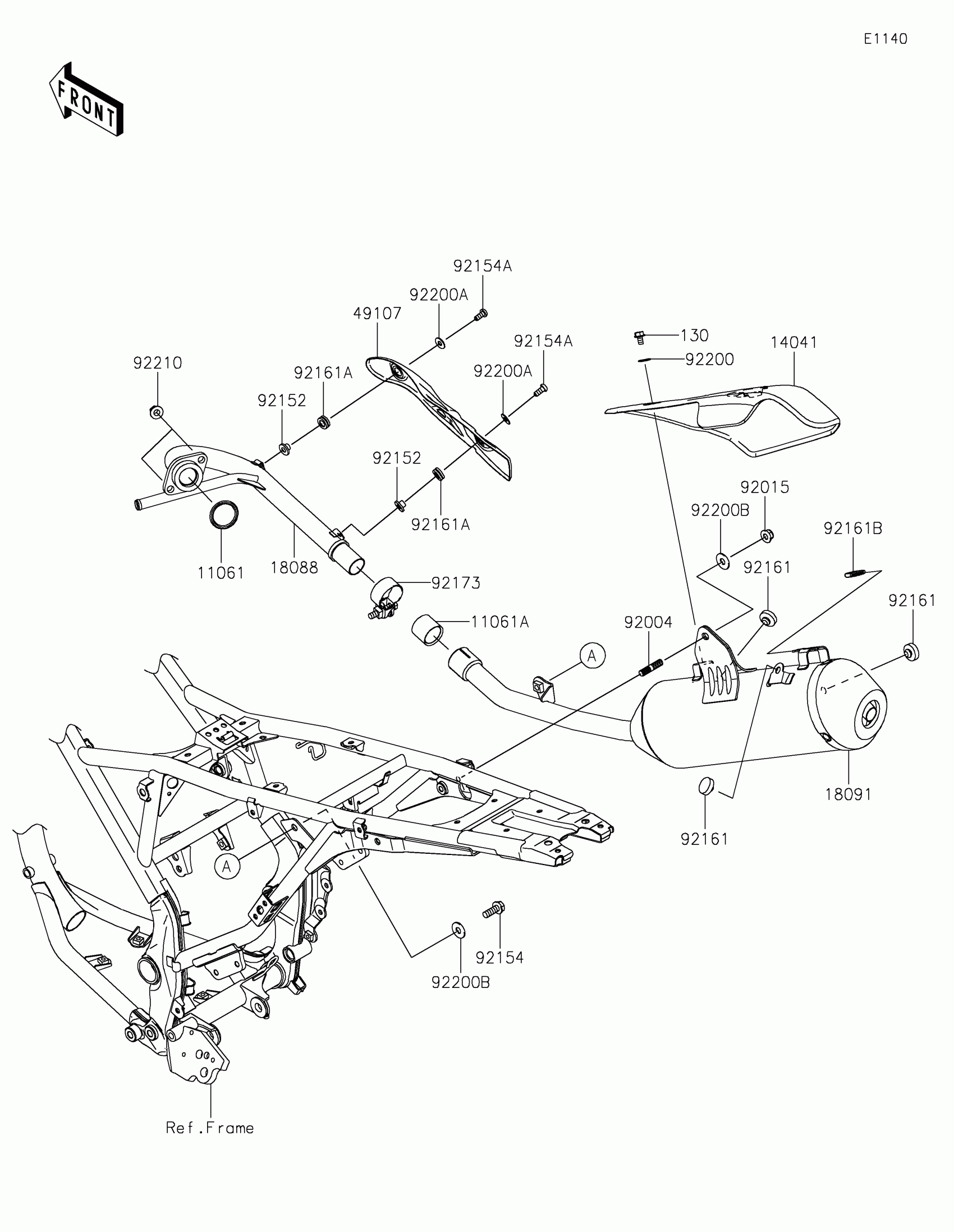

2025 Kawasaki KLX150L (Indonesia Only) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-0871

1
Out of stock

11061A

GASKET,MUFFLER JOINT

11061-1419

1
Out of stock

14041

COVER-COMP

14041-0645

1
Out of stock

18088

PIPE-EXHAUST

18088-1666

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1228

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-0848

1
Out of stock

92004

STUD,8X22

92004-0040

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92152

COLLAR

92152-2897

1
Out of stock

92154

BOLT,8X16

92154-1228

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-2818

1
Out of stock

92161

DAMPER,MUFFLER

92161-1284

1
Out of stock

92161A

DAMPER

92161-2110

1
Out of stock

92161B

DAMPER

92161-2472

1
Out of stock

92173

CLAMP

92173-1223

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock

92200A

WASHER,6.5X16X1

92200-1974

1
Out of stock

92200B

WASHER,8.5X22X1.5

92200-1975

1
Out of stock

92210

NUT,8MM

92210-0773

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock
