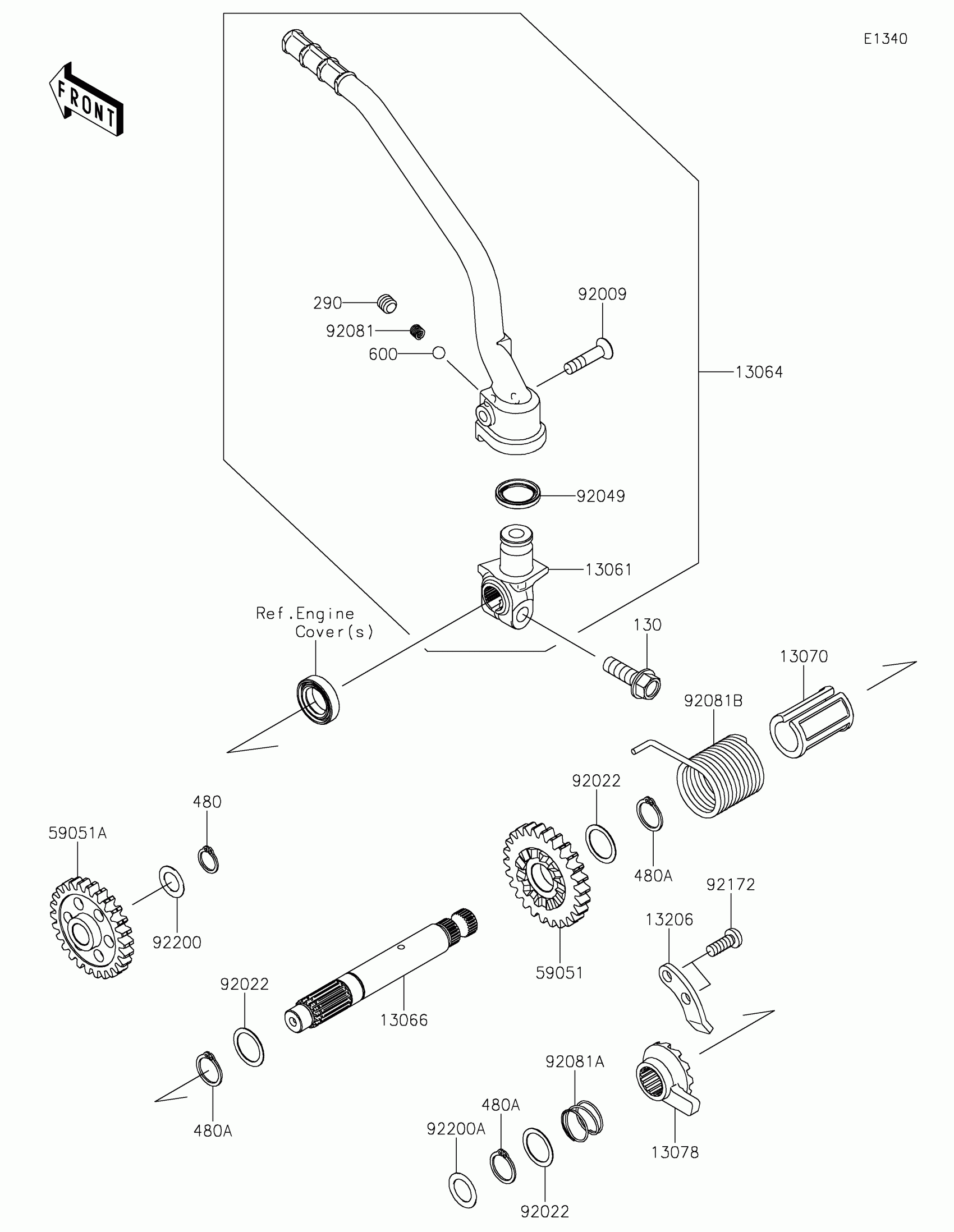

Kawasaki KLX150L (Indonesia Only) Kickstarter Mechanism Diagram

Description

Price

13061

BOSS

13061-0778

Unavailable

13064

LEVER-ASSY-KICK

13064-0074

Unavailable

13066

SHAFT-KICK

13066-0014

$77.14

13070

GUIDE,KICK SHAFT

13070-1035

$6.08

13078

RATCHET

13078-0030

$42.21

13206

GUIDE-KICK

13206-1070

$1.29

59051

GEAR-SPUR,KICK STARTER,26T

59051-0735

$52.94

59051A

GEAR-SPUR,IDLE,26T

59051-0738

$50.50

92009

SCREW,6X27

92009-1607

$6.55

92022

WASHER,16.8X22X0.5

92022-315

$4.67

92049

SEAL-OIL,KICK PEDAL

92049-1387

$4.67

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92081B

SPRING,KICK STARTER

92081-1276

$9.85

92172

SCREW,6X16

92172-1051

$0.71

92200

WASHER,12.3X20X0.5

92200-0298

$0.34

92200A

WASHER,13.2X20X0.5

92200-0571

$1.10

130

BOLT-FLANGED,8X25

130CA0825

$1.13

290

SCREW-SET-SOCKET,8X8

290CA0808

$2.34

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

600

BALL-STEEL,1/4

600A0800

$0.59
