2025 Kawasaki KLX150L (Indonesia Only) Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

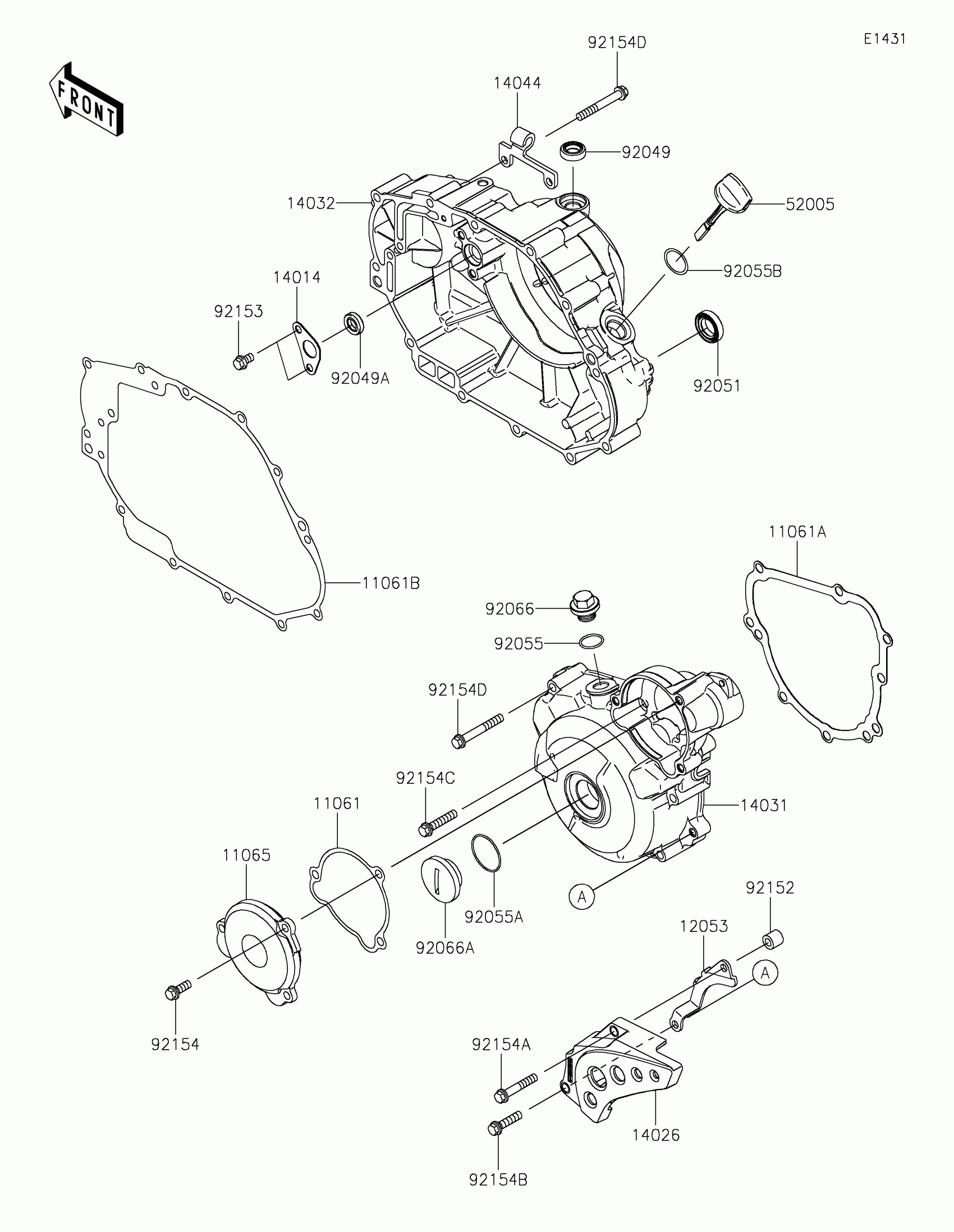

2025 Kawasaki KLX150L (Indonesia Only) Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0300

1
Out of stock

11061A

GASKET,GENERATOR COVER

11061-0400

1
Out of stock

11061B

GASKET,CLUTCH COVER

11061-0401

1
Out of stock

11065

CAP

11065-0801

1
Out of stock

12053

GUIDE-CHAIN

12053-0262

1
Out of stock

14014

PLATE-POSITION

14014-1153

1
Out of stock

14026

COVER-CHAIN

14026-0103

1
Out of stock

14031

COVER-GENERATOR

14031-0654

1
Out of stock

14032

COVER-CLUTCH

14032-0573

1
Out of stock

14044

HOLDER-CABLE

14044-0572

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-0724

1
Out of stock

92049

SEAL-OIL,12X20X5.5

92049-0150

1
Out of stock

92049A

SEAL-OIL

92049-0812

1
Out of stock

92051

SEAL-OIL,TB16267

92051-003

1
Out of stock

92055

RING-O,14.8X2.4

92055-0194

1
Out of stock

92055A

RING-O,25.7X2.4

92055-0763

1
Out of stock

92055B

RING-O,20X2

92055-0764

1
Out of stock

92066

PLUG,14X10

92066-0724

1
Out of stock

92066A

PLUG,GENERATOR COVER CAP

92066-1565

1
Out of stock

92152

COLLAR,6.5X12X11

92152-0692

1
Out of stock

92153

BOLT,6X10

92153-1140

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0460

1
Out of stock

92154A

BOLT

92154-1134

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-1156

1
Out of stock

92154C

BOLT,FLANGED,6X30

92154-1159

1
Out of stock

92154D

BOLT,FLANGED,6X45

92154-4024

1
Out of stock
